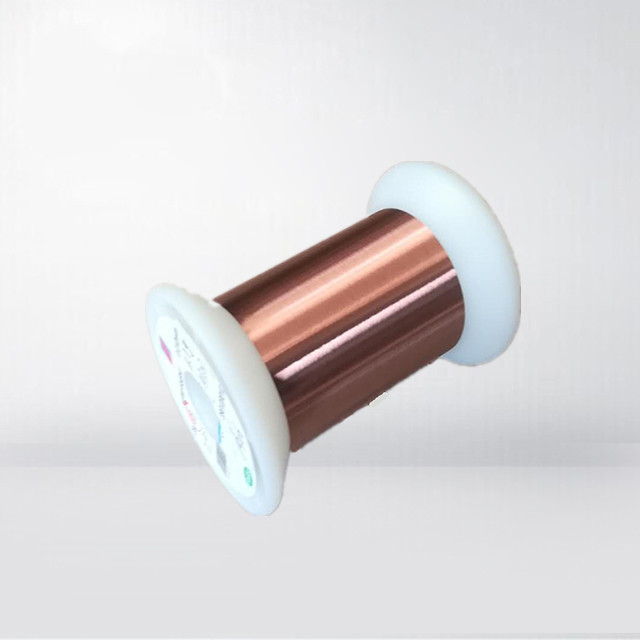

Ultra Fine Winding Wire Round Enamel Magnetic Copper Wire For Motor

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012-0.8mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: UL Certificated Winding Wire Thermal Rating: 155-240℃
Certificates: IEC/NEMA/JIS Insulation: UEW/PEW/EIW
Conductor Material: Copper Color: Mature/red/black/blue
High Light:

self solderable copper wire


covered copper wire

Product Description

Ultra Fine Winding Wire Round Enamel Magnetic Copper Wire For Motor

We bring out a huge selection of Super Enameled Copper Wire that are enabled with good conductivity. Manufactured with quite user friendly and safe approach, these wires are available in different sizes and easy to handle. Our range of enameled copper wires is finely coated with a layer of insulation to prevent with a short circuit when it is being wound into coils. These wires offer excellent resistance to heat shocks and hence thereby suitable for high-speed winding. They further ensure a high endurance with able mechanical strength and impressive performance.


(1) High resistance to heat shock
(2) High temperature
(3) Good performace at softening breakdown
(4) Suitable for high-speed automated routing
(5) Able to be direct weld, with no pinhole
(6) Resistive to high frequency, wearing, refrigerants and electronics corona
(7) High breakdown voltage, small dielectric loss angle


Motors - AC/DC, Transformers, Alternators, Relay Coils, White goods appliances, Pumps, Fans, Light fittings & other electrical & electronic equipments


Name Enameled Copper Wire
Type Q(ZY/XY)-1/200
Diameter 0.025-4.5mm
Standard IEC60317
Test Item Unit Technical Requirement Test Result
Appearance   bright and clean, Uniform color, Ok
Overall Diameter mm <=1.706mm 1.687
Conductor Diameter mm 1.600±0.016mm 1.603
Roundness Tolerance mm <=0.016 mm 0.003
Thickness of insulation film mm >= 0.071mm 0.084
Elongation   >=32 % 42%
spring-back angle   <=30 26
Flexibility and adhesion winding test 1D 1
Peel Twist 69 OK
heat shock   5mm ok
cut-through resistance   320C, 2Min no breakdown 2
Resistance to solvent   1H 1
Breakdown Voltage KV >=2.7 KV 6.7 7.2 6.2 7.8 7.0
scratch resisting(Average) N 14.90 N 29.5
scratch resisting(Min) N 12.60 N 19.3
package   Meet the export standards Ok
Enamel Film continuity   <=25 /30m 1
Quality Control Result


Ultra Fine Winding Wire Round Enamel Magnetic Copper Wire For Motor 0
