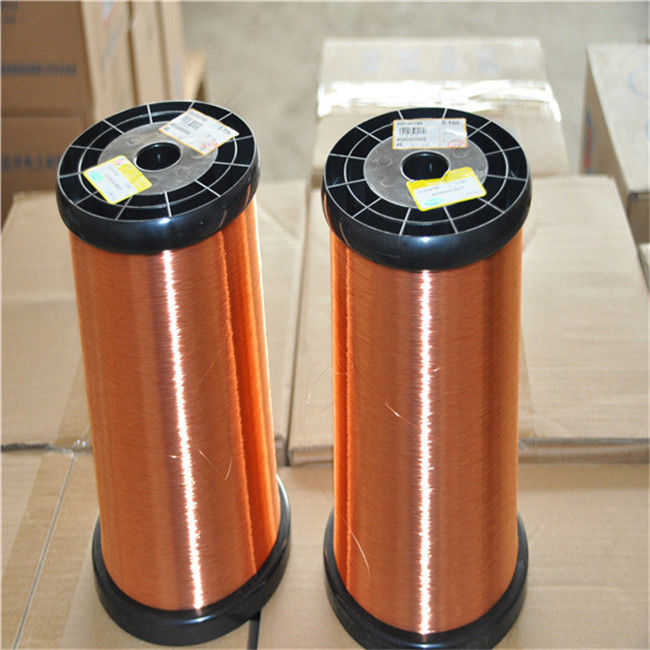

Class 220 High Temperature Enamel Insulated Copper Winding Wire 0.14mm

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.14mm
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Class 220 High Temperature 0.14mm Enamel Insulated Copper Winding Wire Thermal Rating: 155
Insulation Material: Polyurethane Diameter: 0.14mm
Conductor Material: Copper Key Word: Copper Wire AIW 0.14mm High Purity Copper Insulated Enameled SolidClass 220 High Temperature 0.14mm Enamel Insulated Copper Winding Wire
Type: Class 220 High Temperature 0.14mm Enamel Insulated Copper Winding Wire
Highlight:

0.14mm Enamel Insulated Copper Winding Wire

,

Class 220 insulated copper winding wire

,

High Temperature insulated copper winding wire


Product Description

Class 220 High Temperature 0.14mm Enamel Insulated Copper Winding Wire

In addition to the hot air adhesive option, we also offer alcohol adhesive types for an alternative bonding method. While both options offer excellent adhesion, hot air adhesive wire is more environmentally friendly because it eliminates the need for solvents and reduces the overall environmental impact of the manufacturing process. Our commitment to sustainability aligns with the industry's growing demand for environmentally friendly materials, making our wire a smart choice for responsible manufacturers.



Test Items

Requirements

Test Data Result

Min Sample

Ave
Sample

Max Sample
Conductor Diameter 0.14mm ±0.002mm 0.140 0.140 0.140 OK
Thickness of Insulation ≥0.012mm 0.016 0.016 0.016 OK
Basecoat dimensions Overall dimensions Min.0.170 0.167 0.167 0.168 OK
Insulation film thickness ≤ 0.012mm 0.016 0.016 0.016 OK
DC Resistance ≤ 1152Ω/km 1105 1105 1105 OK
Elongation ≥21% 27 39 29 OK
Breakdown Voltage ≥3000V 4582 OK
Bonding Strength Min.21 g 30 OK
Cut-through 200℃ 2min No breakdown OK OK OK OK
Heat Shock 175±5℃/30min No cracks OK OK OK OK
Solderability / / OK


Class 220 High Temperature Enamel Insulated Copper Winding Wire 0.14mm 0
