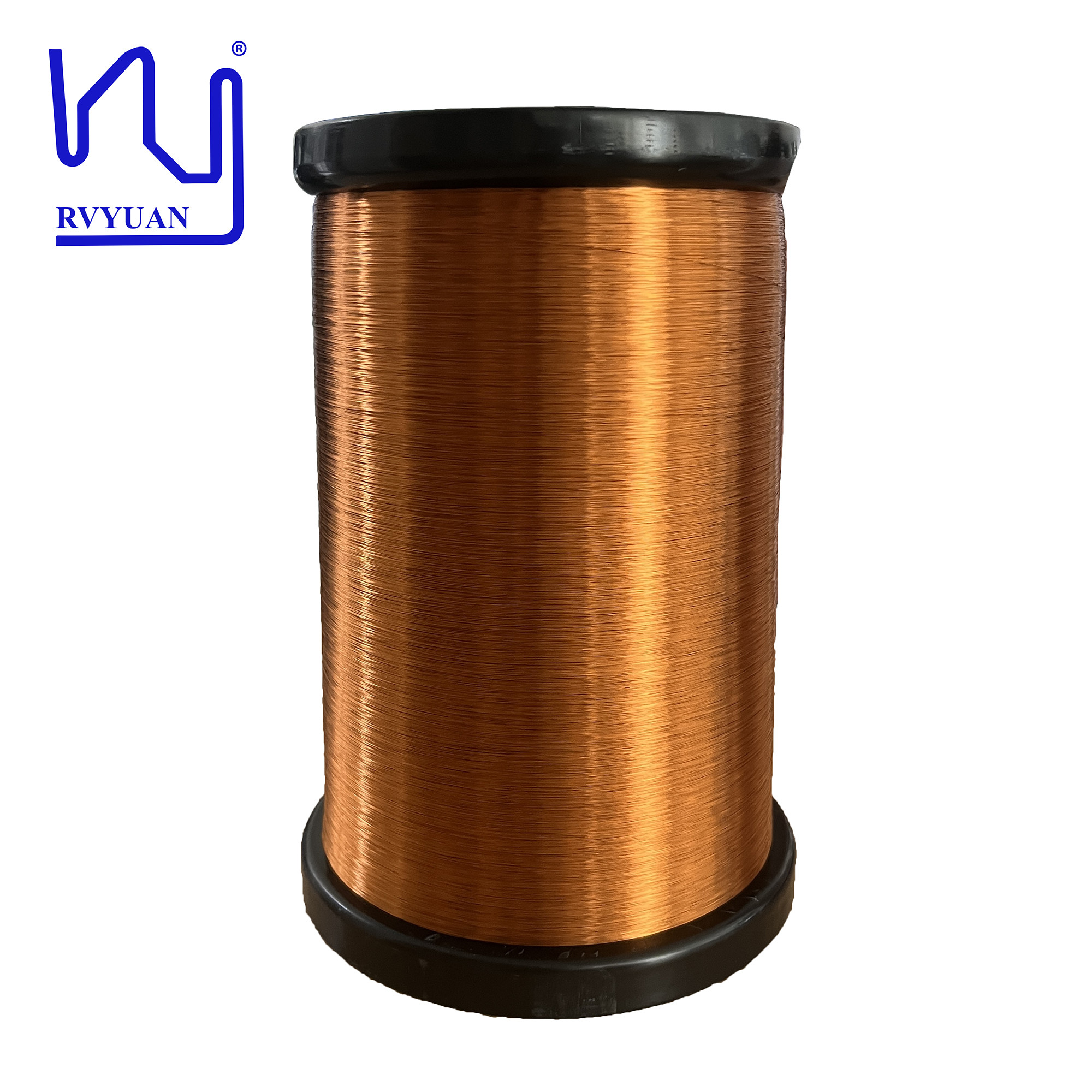

AIW 0.14mm High Purity Copper Wire Insulated Enameled Solid

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.14mm

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Copper Wire AIW 0.14mm High Purity Copper Insulated Enameled Solid	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.14mm
Conductor Material:	Copper	Key Word:	Copper Wire AIW 0.14mm High Purity Copper Insulated Enameled Solid
Type:	Copper Wire AIW 0.14mm High Purity Copper Insulated Enameled Solid
Highlight:	High Purity Copper Wire , AIW Copper Wire , 0.14mm Copper Wire

Product Description

Copper Wire AIW 0.14mm High Purity Copper Insulated Enameled Solid

One of the standout features of our self-bonding enameled copper wire is its exceptional high temperature resistance up to 220 degrees Celsius. This high temperature resistance makes it ideal for applications that require durability and reliability in extreme conditions.

Test Items	Requirements	Test Data			Result
Test Items	Requirements	Min Sample	Ave Sample	Max Sample	Result
Conductor Diameter	0.14mm ±0.002mm	0.140	0.140	0.140	OK
Thickness of Insulation	≥0.012mm	0.016	0.016	0.016	OK
Basecoat dimensions Overall dimensions	Min.0.170	0.167	0.167	0.168	OK
Insulation film thickness	≤ 0.012mm	0.016	0.016	0.016	OK
DC Resistance	≤ 1152Ω/km	1105	1105	1105	OK
Elongation	≥21%	27	39	29	OK
Breakdown Voltage	≥3000V	4582			OK
Bonding Strength	Min.21 g	30			OK
Cut-through	200℃ 2min No breakdown	OK	OK	OK	OK
Heat Shock	175±5℃/30min No cracks	OK	OK	OK	OK
Solderability	/	/			OK

AIW 0.14mm High Purity Copper Wire Insulated Enameled Solid 0
