Name: SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC / JIS / NEMA 1000
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.14mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC/JIS/NEMA 1000	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.14mm
Conductor Material:	Copper	Key Word:	SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC/JIS/NEMA 1000
Type:	SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC/JIS/NEMA 1000
Highlight:	0.14mm Copper Coil Wire , NEMA 1000 Copper Coil Wire , Solid Copper Coil Wire

Product Description

SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC/JIS/NEMA 1000

Our high temperature self-bonding enameled copper wire is a versatile and reliable solution for a wide range of applications. With its innovative bonding technology, excellent high temperature resistance and environmentally friendly features, it has become the first choice of engineers and manufacturers. Whether you want to improve the performance of electrical equipment or streamline the production process, our self-bonding enameled copper wire can meet your needs and exceed your expectations. Experience the excellent performance of high-quality materials for your project - choose our self-bonding enameled copper wire now.

Test Items	Requirements	Test Data			Result
Test Items	Requirements	Min Sample	Ave Sample	Max Sample	Result
Conductor Diameter	0.14mm ±0.002mm	0.140	0.140	0.140	OK
Thickness of Insulation	≥0.012mm	0.016	0.016	0.016	OK
Basecoat dimensions Overall dimensions	Min.0.170	0.167	0.167	0.168	OK
Insulation film thickness	≤ 0.012mm	0.016	0.016	0.016	OK
DC Resistance	≤ 1152Ω/km	1105	1105	1105	OK
Elongation	≥21%	27	39	29	OK
Breakdown Voltage	≥3000V	4582			OK
Bonding Strength	Min.21 g	30			OK
Cut-through	200℃ 2min No breakdown	OK	OK	OK	OK
Heat Shock	175±5℃/30min No cracks	OK	OK	OK	OK
Solderability	/	/			OK

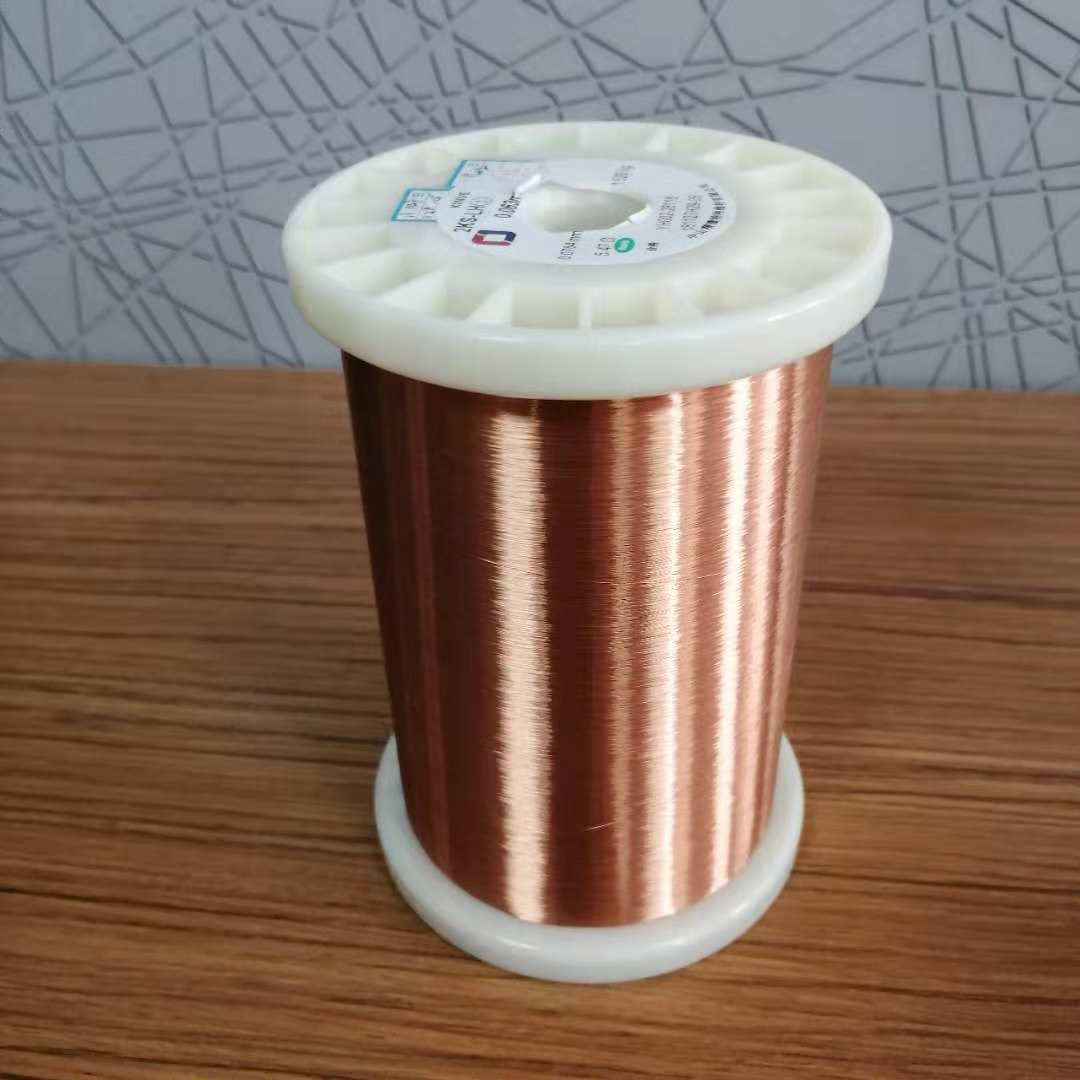

SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC / JIS / NEMA 1000 0

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.14mm

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
