Round Self Bonding Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012-0.8mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Conductor Material: Copper Conductor Type: Solid
Thermal Class: 155/180/200 Size: 0.012-0.8mm
Bonding Method: Alcohol / Hot Air Insulation: Enamel
High Light:

enameled copper self bonding wire

,

enameled self bonding copper wire

,

enamelled copper self bonding wire


Product Description

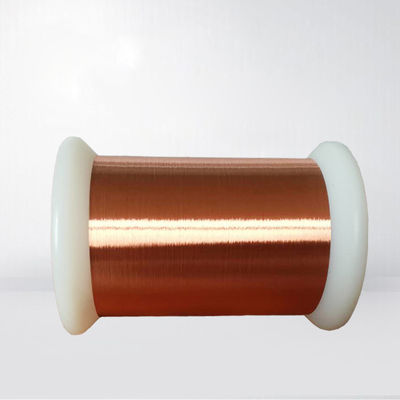

Round Self Bonding Wire



We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.



We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines. Because of our strong R & D strength, our products have a wide range of applications.We have a full range of self-adhesive lines and a wide range of applications.Thermal class is155C, 180 C, 200 C, 220 C. Conductor material includes enameled round wire, enameled copper-clad aluminum wire





Round Self Bonding Wire 0



Self-bonging Enameled Wire for Speaker (voice coil)



Description

Designation

Thermal Grade(℃)

Heating temperature(℃)

Diameter(mm)

Feature

Polyester
Enameled
Wire

PEKVW

155

180~200

0.05~0.60

●Thermal grade 155
●Solvent bonding thermosetting type,
high bonding strength

Polyimide
Enameled
Wire

EIKVW

200

180~200

0.05~0.60

●Thermal grade 180
●Solvent bonding thermosetting type,
high bonding strength

Polyamideimide
Enameled
Wire

AIKVW

220

180~200

0.06~0.60

●Thermal grade 200
●Solvent bonding thermosetting type,
high bonding strength

Polyester
Enameled
CCA Wire

PEKVCCAW

155

170~200

0.05~0.60

●Thermal grade 155
●Solvent bonding thermosetting type,
high bonding strength
●CCA conductor,light weight&high sensitivity

Polyimide
Enameled
CCA Wire

EIKVCCAW

180

170~200

0.05~0.60

●Thermal grade 180
●Solvent bonding thermosetting type,
high bonding strength
●CCA conductor,light weight&high sensitivity
