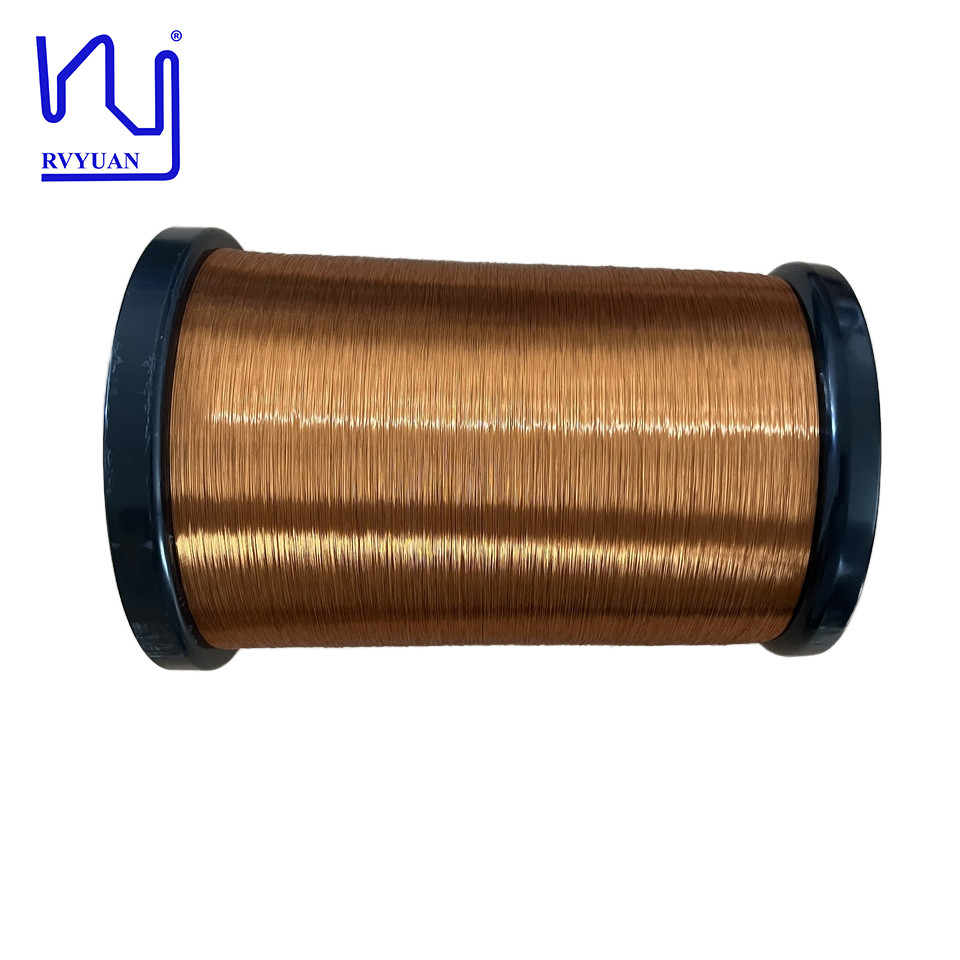

AIW220 0.14mm Hot Wind Enameled Copper Wire for Electrical

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.14mm

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	AIW220 0.14mm Hot Wind Enameled Copper Wire	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.14mm
Conductor Material:	Copper	Key Word:	AIW220 0.14mm Hot Wind Enameled Copper Wire
Type:	AIW220 0.14mm Hot Wind Enameled Copper Wire
Highlight:	Electrical Enameled Copper Wire , AIW220 Enameled Copper Wire , 0.14mm Enameled Copper Wire

Product Description

AIW220 0.14mm Hot Wind Enameled Copper Wire

Our self-adhesive enameled copper wire uses a unique hot air self-adhesive technology that allows the self-adhesive layer to be easily activated, bonded and fixed. Simply use a heat gun or oven to bake the coil to achieve safe and reliable bonding.

Test Items	Requirements	Test Data			Result
Test Items	Requirements	Min Sample	Ave Sample	Max Sample	Result
Conductor Diameter	0.14mm ±0.002mm	0.140	0.140	0.140	OK
Thickness of Insulation	≥0.012mm	0.016	0.016	0.016	OK
Basecoat dimensions Overall dimensions	Min.0.170	0.167	0.167	0.168	OK
Insulation film thickness	≤ 0.012mm	0.016	0.016	0.016	OK
DC Resistance	≤ 1152Ω/km	1105	1105	1105	OK
Elongation	≥21%	27	39	29	OK
Breakdown Voltage	≥3000V	4582			OK
Bonding Strength	Min.21 g	30			OK
Cut-through	200℃ 2min No breakdown	OK	OK	OK	OK
Heat Shock	175±5℃/30min No cracks	OK	OK	OK	OK
Solderability	/	/			OK

AIW220 0.14mm Hot Wind Enameled Copper Wire for Electrical 0
