Name: Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.14mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.14mm
Conductor Material:	Copper	Key Word:	Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire
Type:	Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire
Highlight:	Self Adhesive Magnet Wire , 35 AWG Magnet Wire , 35 AWG Enameled Copper Wire

Product Description

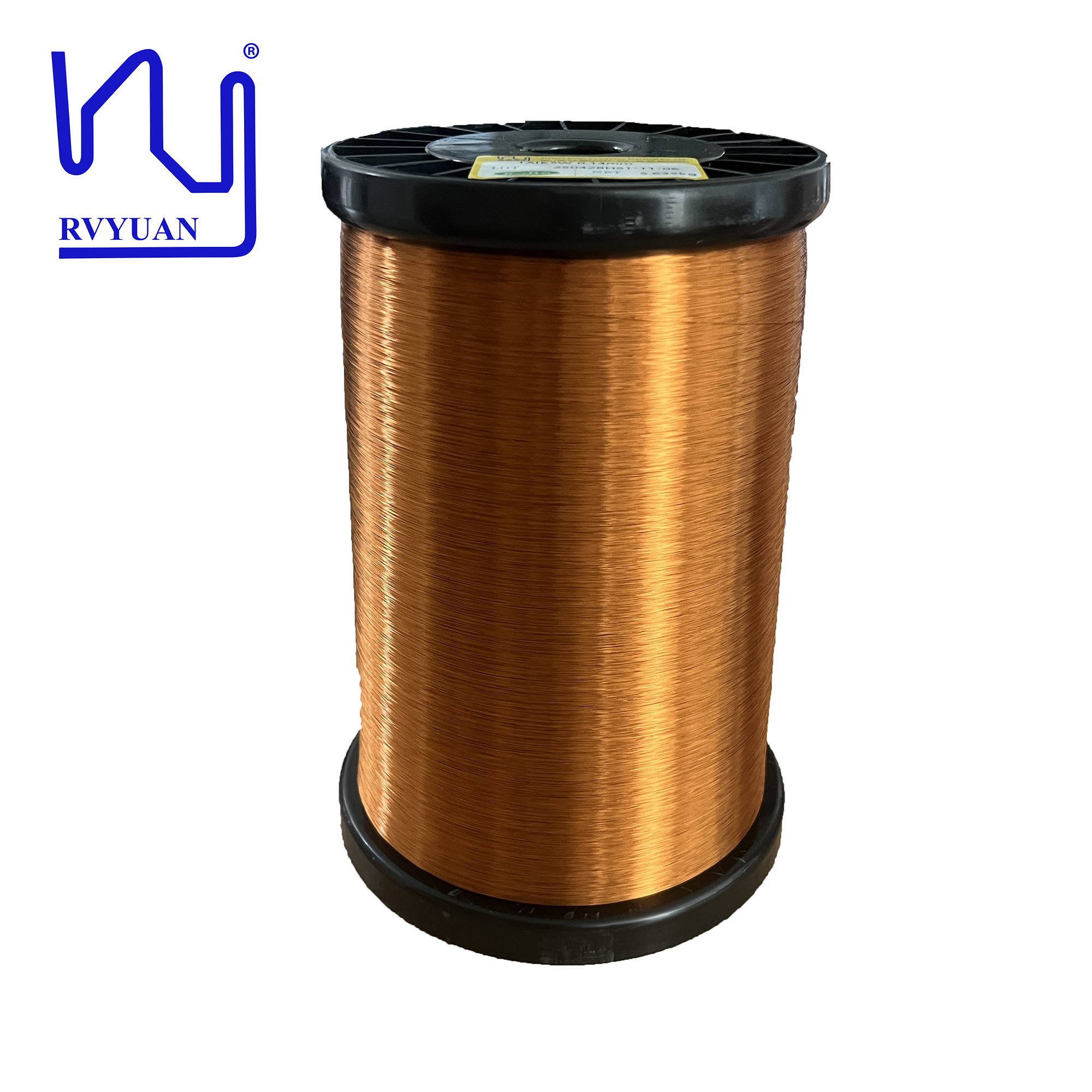

Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire

In the field of electrical engineering and manufacturing, the choice of materials can significantly affect the performance and reliability of a project. We are proud to introduce high temperature self-bonding enameled copper wire, a cutting-edge solution designed to meet the demanding needs of modern applications. With a single wire diameter of only 0.14 mm, this enameled copper wire is designed for high precision and efficiency, making it an ideal choice for a variety of uses, from small electronic devices to large industrial applications.

Test Items	Requirements	Test Data			Result
Test Items	Requirements	Min Sample	Ave Sample	Max Sample	Result
Conductor Diameter	0.14mm ±0.002mm	0.140	0.140	0.140	OK
Thickness of Insulation	≥0.012mm	0.016	0.016	0.016	OK
Basecoat dimensions Overall dimensions	Min.0.170	0.167	0.167	0.168	OK
Insulation film thickness	≤ 0.012mm	0.016	0.016	0.016	OK
DC Resistance	≤ 1152Ω/km	1105	1105	1105	OK
Elongation	≥21%	27	39	29	OK
Breakdown Voltage	≥3000V	4582			OK
Bonding Strength	Min.21 g	30			OK
Cut-through	200℃ 2min No breakdown	OK	OK	OK	OK
Heat Shock	175±5℃/30min No cracks	OK	OK	OK	OK
Solderability	/	/			OK

Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire 0

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.14mm

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
