Name: Enamelled Copper Wire Self Bonding Wire With Full Thermal Rating Range
Brand: Rvyuan
SKU: 155-240℃
Rating: 4.7 (171 reviews)

Enamelled Copper Wire Self Bonding Wire With Full Thermal Rating Range

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	155-240℃

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Thermal Rating:

155-240℃

Certificates:

IEC/NEMA/JIS

Size Range:

0.012-4.5mm

Insulation:

UEW/PEW/EIW

High Light:

self solderable copper wire

covered copper wire

Product Description

ENAMELED COPPER WIRE SELF BONDING WIRE WITH FULL THERMAL RATING RANGE

We bring out a huge selection of Super Enameled Copper Wire that are enabled with good conductivity. Manufactured with quite user friendly and safe approach, these wires are available in different sizes and easy to handle. Our range of enameled copper wires is finely coated with a layer of insulation to prevent with a short circuit when it is being wound into coils. These wires offer excellent resistance to heat shocks and hence thereby suitable for high-speed winding. They further ensure a high endurance with able mechanical strength and impressive performance.

FEATURES

High resistance to heat shock
High temperature
Good performace at softening breakdown
Suitable for high-speed automated routing
Able to be direct weld, with no pinhole
Resistive to high frequency, wearing, refrigerants and electronics corona
High breakdown voltage, small dielectric loss angle

APPLICATION

Used for automotive coils as relays and ignition coils. In transformers and in solenoidsSmall transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads.
Automotive sensors and coils as relais and ignition coils.
Generators, dry-type or oil-immersed.
Anti-explosion motor, air-conditioner compressor, washing machines

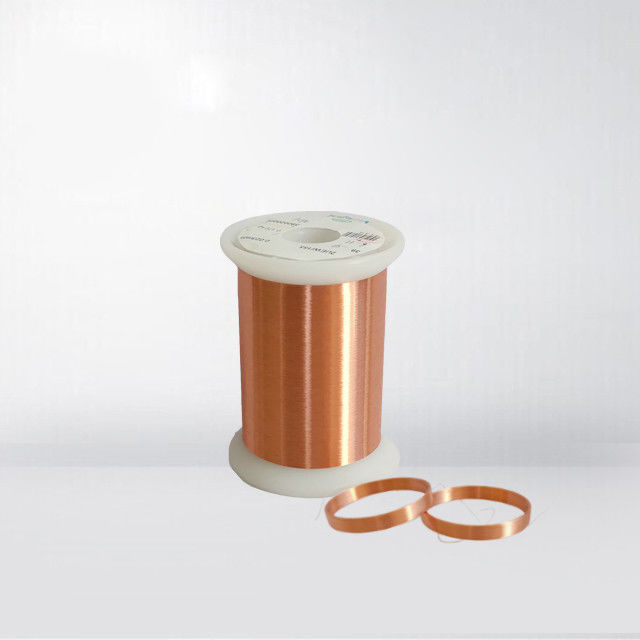

Enamelled Copper Wire Self Bonding Wire With Full Thermal Rating Range 0

SPECIFICATION

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance

	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.4	±0.004	0.025	0.437	----	2900	27	5	132.2	140
0.41	±0.004	0.025	0.447	----	2900	27	5	125.9	133.2
0.44	±0.004	0.025	0.477	----	2900	27	5	109.5	115.5
0.45	±0.004	0.025	0.487	----	2900	27	5	104.7	110.4
0.47	±0.004	0.026	0.508	----	3100	27	5	96.05	101.1
0.5	±0.004	0.026	0.539	----	3100	27	5	84.96	89.23
0.55	±0.004	0.027	0.59	----	3300	28	5	70.31	73.64
0.6	±0.005	0.027	0.64	----	3500	28	5	58.96	62.01
0.65	±0.005	0.027	0.69	----	3500	28	5	50.3	52.77
0.7	±0.005	0.029	0.742	----	3500	28	5	43.42	45.45
0.75	±0.005	0.03	0.794	----	3800	28	5	37.86	39.55
0.8	±0.005	0.032	0.846	----	3800	28	5	33.3	34.73
0.8	±0.005	0.032	0.846	----	3800	28	5	33.3	34.73
