Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	155 / 180 UEW

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Insulation::	UEW/2UEW/3UEW	Color:	Original Or Customization
Stock:	Available	Size:	0.012-0.8mm
Material:	Copper	Conductor Type:	Solid
Thermal Class:	130/155/180/220
Highlight:	self solderable copper wire , covered copper wire

Size	Conductor	Insulation Thickness	Bonding Layer thickness	Overall Dia	DCR(at 20℃)	Breakdown voltage (V)	Elongation %	Bonding Strength(g)
Dia mm	Tolerance (mm)	(mm)	(mm)	(mm)	[Ω/m]
0.070	±0.002	Min0.003	Min0.003	Max0.086	4.30～4.50	Min700	Min12.0	Min 5
0.068	±0.002	Min0.003	Min0.003	Max0.083	4.60～4.80	Min700	Min12.0	Min 5
0.065	±0.002	Min0.003	Min0.003	Max0.078	4.85～5.20	Min700	Min12.0	Min 5
0.060	±0.002	Min0.002	Min0.003	Max0.071	5.71～6.53	Min700	Min12.0	Min 5
0.058	±0.002	Min0.002	Min0.002	Max0.071	6.50～6.70	Min700	Min12.0	Min 5
0.057	±0.002	Min0.002	Min0.002	Max0.070	6.40～7.00	Min700	Min12.0	Min 5
0.055	±0.002	Min0.002	Min0.003	Max0.066	6.75～7.83	Min700	Min10.0	Min 5
0.053	±0.002	Min0.002	Min0.003	Max0.064	8.25～8.44	Min700	Min10.0	Min 5
0.052	±0.002	Min0.003	Min0.003	Max0.064	8.00～8.50	Min700	Min10.0	Min 5
0.050	±0.002	Min0.002	Min0.003	Max0.061	8.11～9.53	Min700	Min10.0	Min 5
0.049	±0.001	Min0.002	Min0.003	Max0.0580	8.90～9.40	Min700	Min10.0	Min 5
0.048	±0.001	Min0.002	Min0.003	Max0.059	9.14～9.94	Min700	Min10.0	Min 5
0.047	±0.001	Min0.001	Min0.002	Max0.057	9.52～10.4	Min700	Min10.0	Min 3
0.046	±0.001	Min0.003	Min0.003	Max0.0550	9.90～10.3	Min360	Min10.0	Min 3
0.045	±0.001	Min0.001	Min0.002	Max0.055	10.3～11.4	Min700	Min10.0	Min 3
0.044	±0.001	Min0.003	Min0.003	Max0.0540	11.4～12.5	Min275	Min7.0	Min 3
0.043	±0.001	Min0.003	Min0.003	Max0.0520	11.4~12.5	Min275	Min7.0	Min 3
0.042	±0.001	Min0.003	Min0.003	Max0.0530	12.2~13.0	Min275	Min7.0	Min 3
0.041	±0.001	Min0.003	Min0.003	Max0.0500	12.9~13.6	Min275	Min7.0	Min 3
0.040	±0.001	Min0.002	Min0.002	Max0.050	13.0~14.5	Min100	Min7.0	Min 3
0.039	±0.001	Min0.002	Min0.002	Max0.049	14.6~15.2	Min100	Min7.0	Min 3
0.038	±0.001	Min0.002	Min0.002	Max0.0490	15.5~16.0	Min275	Min7.0	Min 3
0.037	±0.001	Min0.002	Min0.002	Max0.0480	16.2~16.8	Min275	Min6.0	Min 3
0.035	±0.001	Min0.002	Min0.002	Max0.0460	17.5~18.6	Min250	Min6.0	Min 3
0.034	±0.001	Min0.002	Min0.002	Max0.0430	18.1~18.9	Min250	Min6.0	Min 3
0.032	±0.001	Min0.002	Min0.002	Max0.0400	21.5~22.5	Min210	Min6.0	Min 2
0.030	±0.001	Min0.002	Min0.002	Max0.0390	23.7~24.9	Min210	Min6.0	Min 2
0.028	±0.001	Min0.002	Min0.002	Max0.0360	26.9~28.4	Min190	Min6.0	Min 2
0.025	±0.001	Min0.002	Min0.002	Max0.0320	34.0~37.0	Min165	Min6.0	Min 2
0.020	±0.001	Min0.001	Min0.002	Max0.0260	54.0~57.0	Min135	Min6.0	Min 1

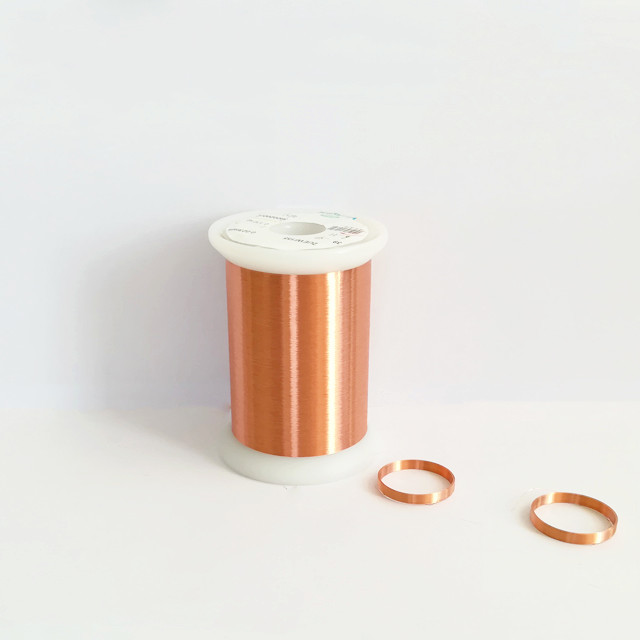

Transformer Polyurethane Self Bonding Wire NEMA Solderable Winding Wire 155 / 180 UEW
