Place of Origin: | China |
---|---|
Brand Name: | Rvyuan |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | UEW 155 |
Minimum Order Quantity: | Different types with differet MOQ |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation, T/T, L/C |
Supply Ability: | Satisfy your demand |
Conductor: | Copper | Insulation:: | UEW / Polyuthane |
---|---|---|---|
Thermal Class: | 155 | Standard: | IEC/JIC/NEMA |
Size: | 0.012-0.8mm | Pin Hole: | 0 |
Highlight: | self solderable copper wire,flat copper wire |

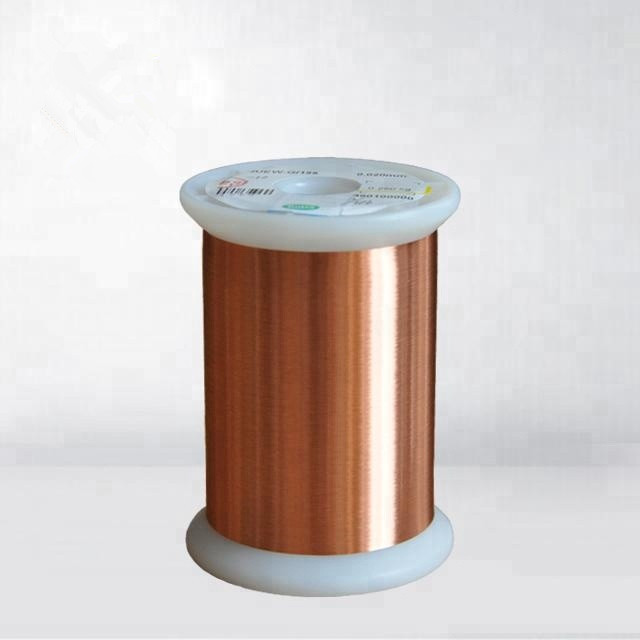

UEW 155 DIRECT WELDING ENAMELED MAGNET WIRE ENAMELED COPPER WIRE WITH DIFFERENT COLOR
A special type of enamelled wire is self bonding wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.
FEATURES
Mostly widely used enameled wire.
Solder able at 380 C
Easily colored in a variety of colors.
Excellent dielectric characteristic at high frequencies.
Few pin-holes.
APPLICATION
Connection without stripping, -
Automatic connection in solder bath at 390°C,
Automatic processes, - use of twisting devices.
Main uses are found in relays, transformers, television and car components
Telecommunication technology
The construction of micro motors, low range motors and measure apparatus
SPECIFICATION
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
Elongation |
Pin Hole |
Electrical Resistance |
||
|
|
|
|
|
|||||
mm |
≥ V |
≥% |
≤Default/5m |
Ω/km (20℃) |
|||||
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|||
0.012 |
---- |
0.013 |
0.015 |
50 |
---- |
5 |
10 |
142.64 |
157.65 |
0.013 |
---- |
0.015 |
0.017 |
70 |
---- |
5 |
10 |
118.41 |
133.98 |
0.014 |
---- |
0.016 |
0.018 |
70 |
---- |
5 |
10 |
102.64 |
120.45 |
0.015 |
---- |
0.017 |
0.02 |
80 |
---- |
5 |
10 |
89.83 |
104.41 |
0.016 |
---- |
0.018 |
0.021 |
90 |
---- |
5 |
8 |
74.67 |
97.56 |
0.017 |
---- |
0.019 |
0.022 |
90 |
---- |
5 |
8 |
66.6 |
85.75 |
0.018 |
---- |
0.02 |
0.023 |
100 |
---- |
5 |
8 |
59.77 |
75.95 |
0.019 |
---- |
0.021 |
0.024 |
100 |
---- |
5 |
8 |
53.95 |
67.75 |
0.05 |
±0.002 |
0.007 |
0.062 |
400 |
1200 |
12 |
5 |
7981 |
9528 |
0.055 |
±0.002 |
0.007 |
0.068 |
400 |
1200 |
12 |
5 |
6642 |
7815 |
0.06 |
±0.002 |
0.007 |
0.073 |
500 |
1200 |
14 |
5 |
5614 |
6526 |
0.065 |
±0.002 |
0.007 |
0.078 |
500 |
1200 |
14 |
5 |
4807 |
5531 |
0.07 |
±0.002 |
0.007 |
0.083 |
500 |
1200 |
15 |
5 |
4163 |
4747 |
0.075 |
±0.002 |
0.007 |
0.088 |
550 |
1200 |
15 |
5 |
3640 |
4119 |
0.08 |
±0.002 |
0.008 |
0.094 |
550 |
1200 |
16 |
5 |
3209 |
3608 |
0.085 |
±0.002 |
0.008 |
0.099 |
550 |
1200 |
16 |
5 |
2851 |
3187 |
0.09 |
±0.002 |
0.01 |
0.106 |
650 |
1200 |
16 |
5 |
2550 |
2835 |
0.095 |
±0.002 |
0.01 |
0.111 |
650 |
1200 |
17 |
5 |
2294 |
2538 |
0.1 |
±0.002 |
0.011 |
0.118 |
650 |
1200 |
17 |
5 |
2074 |
2286 |
0.11 |
±0.002 |
0.011 |
0.129 |
---- |
1300 |
17 |
5 |
1720 |
1882 |
0.12 |
±0.002 |
0.011 |
0.139 |
---- |
1500 |
17 |
5 |
1450 |
1577 |
0.13 |
±0.002 |
0.011 |
0.149 |
---- |
1500 |
18 |
5 |
1239 |
1340 |
0.14 |
±0.002 |
0.011 |
0.159 |
---- |
1600 |
19 |
5 |
1070 |
1153 |
0.15 |
±0.002 |
0.011 |
0.169 |
---- |
1700 |
20 |
5 |
934.1 |
1002 |
0.16 |
±0.002 |
0.012 |
0.18 |
---- |
1700 |
21 |
5 |
822.3 |
879.4 |
0.17 |
±0.003 |
0.013 |
0.192 |
---- |
2000 |
22 |
5 |
721.1 |
787.1 |
