Super fine Enamelled Self Bonding Wire 0.012 - 0.8mm Copper Magnet Wire With Good Conductivity

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012 - 0.8mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Conductor: Round Copper Insulation Material:: Enamelled
Size: 0.012-0.8mm Temperature: 130-220℃
Standard: NEMA,JIS,IEC
Highlight:

self solderable copper wire

,

flat copper wire


Product Description

SUPER FINE ENAMELED SELF BONDIGN WIRE 0.012-0.8MM COPPER MAGNET WIRE WITH GOOD CONDUCTIVITY

Bondable magnet wire, also referred to as self-bonding magnet wire, is film insulated wire top-coated with a thermoplastic adhesive. When activated, the thermoplastic bonds turn to turn windings to produce self-supporting coils or coils of unusual or difficult configuration. Use of bondable magnet wire may offer advantages over conventional magnet wire in certain winding applications, eliminating the need for bobbins as well as taping or varnishing steps. Activation of the bondcoat may be achieved with either heat, or in some cases solvent, or a combination of the two. Although bondcoats may be added to any conventional film, consideration should be given to the resoftening temperature of the adhesive in that it may not withstand the operating temperature of higher rated primary insulations

FEATURES

  • Good conductivity
  • Directly soldering
  • Good chemically resistance
  • Excellent thermal stability
  • High solvent resistance

 CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met

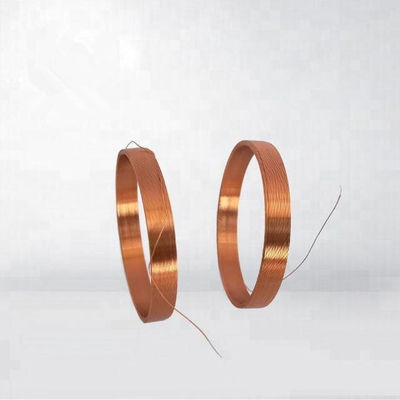

Super fine Enamelled Self Bonding Wire 0.012 - 0.8mm Copper Magnet Wire With Good Conductivity 0
SPECIFICATION

PEW
Diameter 0.50-2.50
0.40-0.49
0.30-0.39
0.20-0.29
0.15-0.19
Thermal B 130 ºC F 155 ºC
Application Fan, air-conditioner, electric tool, washing-machine, micro-motor, explosion-proof motor, ballast, dry-type transformer and other windings in electrical tool.
Features 1. Excellent heat-resisting wire
2. Good solvent resistance
3. Mechanical strength with (PVF) enameled wire match
4. electrical performance with polyester enamelled round copper wire match
5. Excellent softness and aging

EIW
Diameter 0.50-2.50
0.40-0.49
0.30-0.39
0.20-0.29
0.15-0.19
Thermal H 180 ºC
Application Fan, air-conditioner, electric tool, washing-machine, micro-motor, explosion-proof motor, ballast, dry-type transformer and other windings in electrical tool.
Features 1.Thermal shock resistance
2.Influx of cold tolerance better than the polyester line
