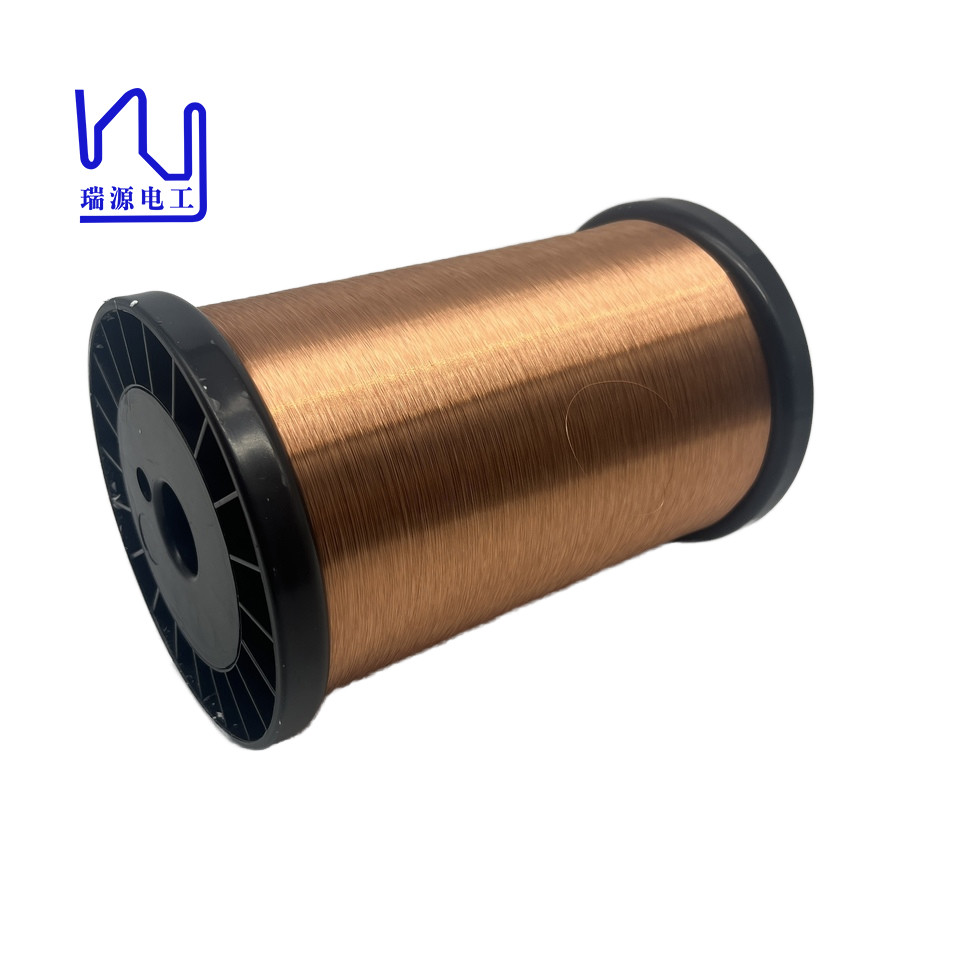

Name: Super Thin Self Bonding Enamelled Copper Wire For Voice Coils
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.09mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	Super Thin Self Bonding Enamelled Copper Wire For Voice Coils	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.09mm
Conductor Material:	Copper	Key Word:	Super Thin Self Bonding Enamelled Copper Wire For Voice Coils
Type:	Super Thin Self Bonding Enamelled Copper Wire For Voice Coils
Highlight:	Voice Coils Enamelled Copper Wire , Super Thin Enamelled Copper Wire , Self Bonding Enamelled Copper Wire

Product Description

Super Thin Self Bonding Enamelled Copper Wire For Voice Coils

In addition to our hot air self-adhesive enameled copper wire, we also offer alcohol self-adhesive wire. This alternative provides greater flexibility for a variety of applications, allowing bonding in environments where heating is not possible.

Alcohol self-adhesive thread is ideal for delicate projects or sensitive components that require a gentler approach. Whether you're dealing with complex instrument pickup winding wire or other specialist applications, our range of self-adhesive wire ensures you have the right solution for your needs.

Test Item	Unit	Technical requests	Reality Value
Test Item	Unit	Technical requests	Min.	Ave	Max
Conductor dimensions	mm	0.090±0.002	0.090	0.090	0.090
(Basecoat dimensions) Overall dimensions	mm	Max.0.116	0.114	0.1145	0.115
Insulation Film Thickness	mm	Min. 0.010	0.014	0.0145	0.015
Bonding Film Thickness	mm	Min. 0.006 mm	0.010	0.010	0.010
Continuity of covering(50V/30m)	pcs	Max.60	Max.0
Adhesive		Coating layer is good	Good
Conductor Resistance(20℃)	Ω/km	Max.2834	2717	2718	2719
Elongation	%	Min.20	24	25	25
Breakdown Voltage	V	Min.3000	Min.4092
Bonding Strength	g	Min.9	19

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.09mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
