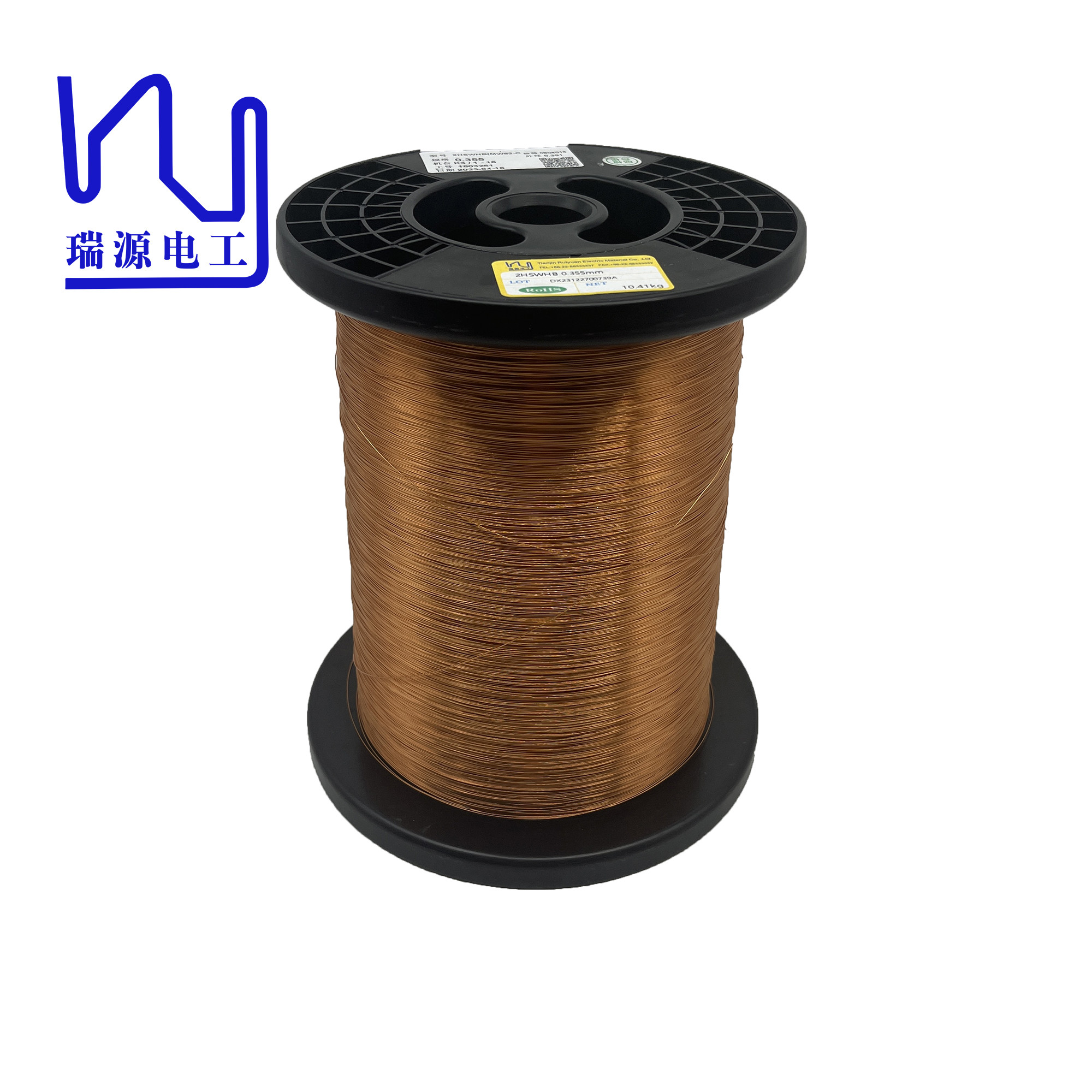

Name: Hot Air Alcohol 0.35mm Self Bonding Copper Wire Polyurethane Covered Enameled
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.35mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	Hot Air Alcohol 0.35mm Self Bonding Polyurethane Covered Enameled Copper Wire	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.35mm
Conductor Material:	Copper	Key Word:	Hot Air Alcohol 0.35mm Self Bonding Polyurethane Covered Enameled Copper Wire
Type:	Hot Air Alcohol 0.35mm Self Bonding Polyurethane Covered Enameled Copper Wire
Highlight:	0.35mm self bonding magnet wire , polyurethane covered self bonding copper wire , covered enameled self bonding copper wire

Product Description

Hot Air Alcohol 0.35mm Self Bonding Polyurethane Covered Enameled Copper Wire

0.35mm self-adhesive enameled copper wire features high electrical conductivity, excellent thermal stability and mechanical strength, making it ideal for a variety of electrical applications.

Key word: Hot Air Alcohol 0.35mm Self Bonding Polyurethane Covered Enameled Copper Wire

Test Item	Unit		Standard Value
			1^st Sample	2^nd Sample	3^rd Sample
Appearance	Smooth & Clean		OK	OK	OK
Conductor Diameter	0.350±	0.003	0.350	0.350	0.350
Thickness of Insulation	≥0.018 mm		0.032	0.033	0.032
Bonding film thickness	≥0.008 mm		0.017	0.017	0.017
Overall Diameter	≤ 0.395 mm		0.432	0.433	0.432
DC Resistance	≤ 182.3Ω/m		179.1	179.2	179.3
Elongation	≥ 28 %		32	32	33
Breakdown Voltage	≥ 5000V		6829
Bonding strength	≥60g		80
Solder Ability 400± 5℃ 2Sec	Max. 3 s		Max.1.5 s
Adherence	Coating layer is good		GOOD

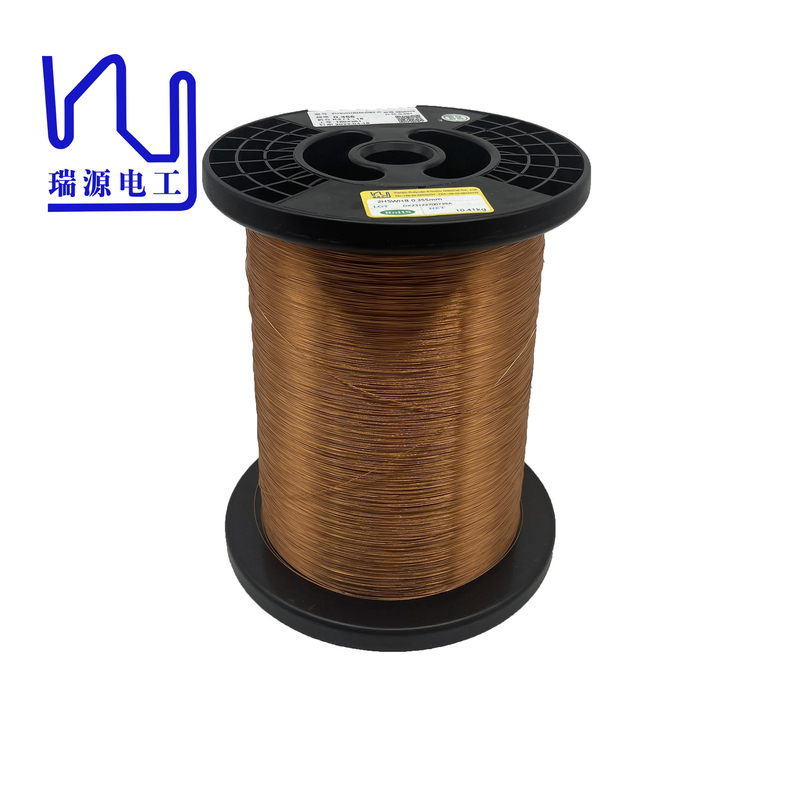

Hot Air Alcohol 0.35mm Self Bonding Copper Wire Polyurethane Covered Enameled 0

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.35mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
