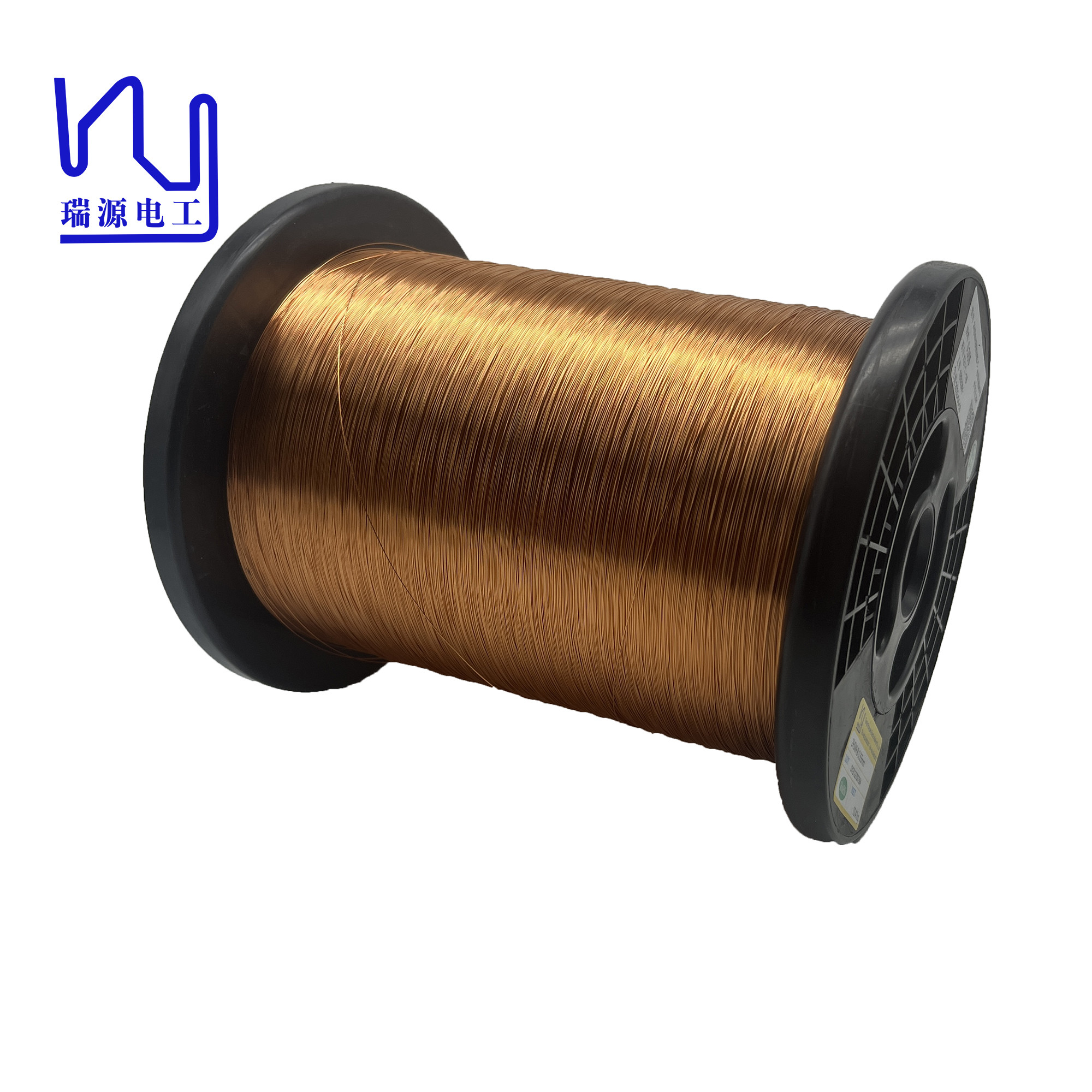

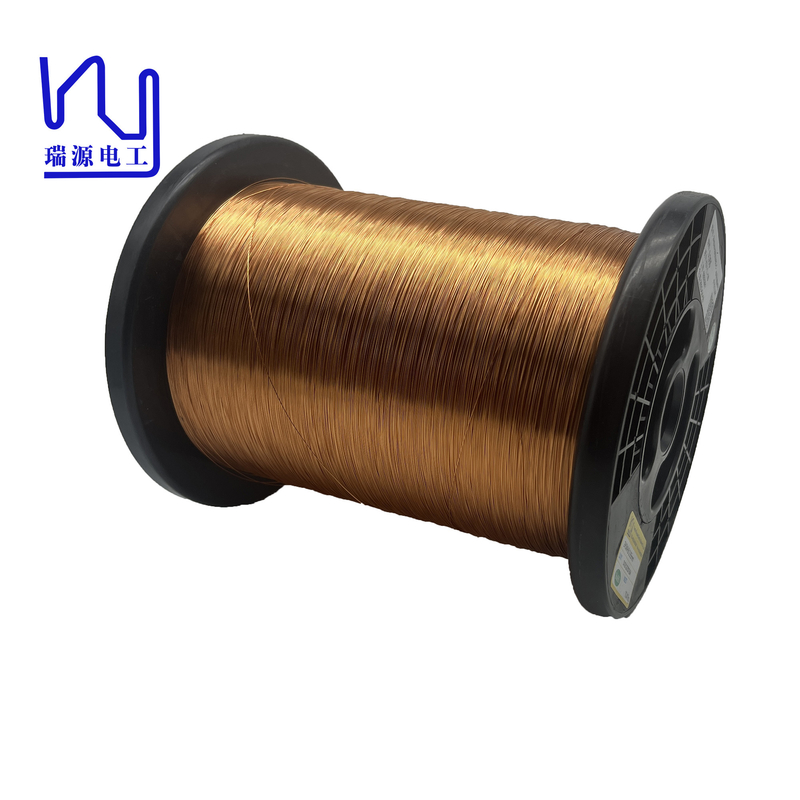

Custom 155 Degree Enameled Copper Wire Self Bonding Self Adhesive

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.35mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Custom 155 Degree Self Bonding Self Adhesive Enameled Copper Wire	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.35mm
Conductor Material:	Copper	Key Word:	Custom 155 Degree Self Bonding Self Adhesive Enameled Copper Wire
Type:	Custom 155 Degree Self Bonding Self Adhesive Enameled Copper Wire
Highlight:	155 degree enameled copper wire , self adhesive enameled copper wire , 155 degree self bonding copper wire

Product Description

Custom 155 degree Self bonding Self adhesive Enameled Copper Wire

The hot wind self-adhesive feature eliminates the need for additional adhesives or welding, simplifying the manufacturing and assembly process. With its unique properties, the wire enables a secure, long-lasting bond that ensures the integrity of electrical connections even in demanding environments. According to environmental protection standards, most of our self-adhesive wires are produced in hot wind type to meet the requirements of environmentally friendly solutions.

Key word: Custom 155 degree Self bonding Self adhesive Enameled Copper Wire

Test Item	Unit		Standard Value
			1^st Sample	2^nd Sample	3^rd Sample
Appearance	Smooth & Clean		OK	OK	OK
Conductor Diameter	0.350±	0.003	0.350	0.350	0.350
Thickness of Insulation	≥0.018 mm		0.032	0.033	0.032
Bonding film thickness	≥0.008 mm		0.017	0.017	0.017
Overall Diameter	≤ 0.395 mm		0.432	0.433	0.432
DC Resistance	≤ 182.3Ω/m		179.1	179.2	179.3
Elongation	≥ 28 %		32	32	33
Breakdown Voltage	≥ 5000V		6829
Bonding strength	≥60g		80
Solder Ability 400± 5℃ 2Sec	Max. 3 s		Max.1.5 s
Adherence	Coating layer is good		GOOD
