| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.35mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.35mm Class 155 Hot Wind Self Adhesive Enameled Copper Wire For Electrical Device | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.35mm |
| Conductor Material: | Copper | Key Word: | 0.35mm Class 155 Hot Wind Self Adhesive Enameled Copper Wire For Electrical Device |
| Type: | Manufacturer 0.2mm Insulated Copper Self Bonding Wire | ||
| High Light: | self bonding wire 0.35 mm,electrical device self bonding wire,electrical device self bonding copper wire |
||

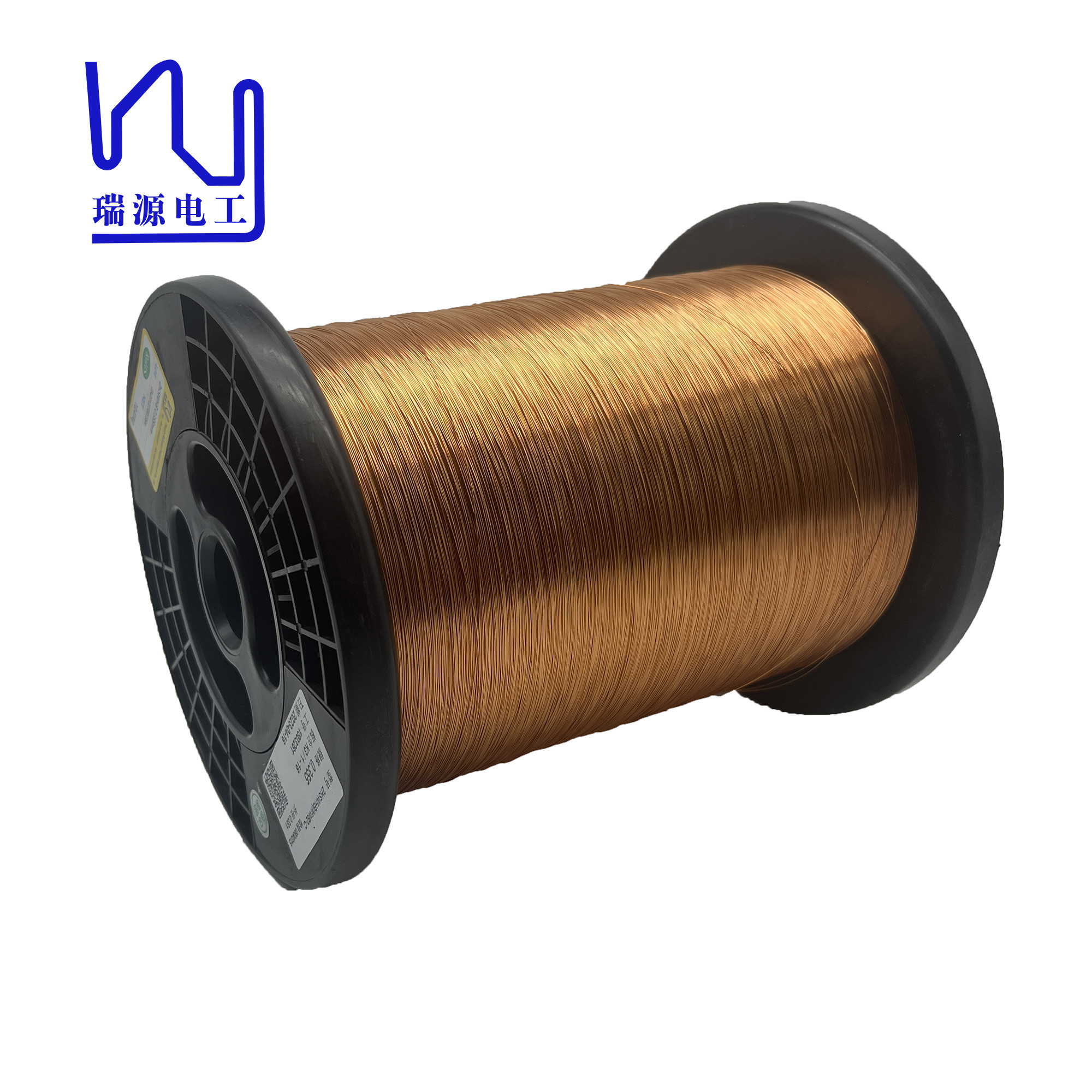

0.35mm Class 155 Hot Wind Self adhesive Enameled Copper Wire For Electrical Device
This custom 0.35mm copper wire is specifically designed with hot wind adhesive to improve self-adhesive properties, ensuring reliable, secure connections in a variety of electrical systems. The main purpose of 0.35mm self-adhesive enameled copper wire is to provide durable and efficient solutions for wiring and connecting components in electronic equipment, motors, transformers and other electrical equipment.
|
0.35mm Class 155 Hot Wind Self adhesive Enameled Copper Wire For Electrical Device |
| Test Item | Unit | Standard Value | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.350± | 0.003 | 0.350 | 0.350 | 0.350 |
| Thickness of Insulation | ≥0.018 mm | 0.032 | 0.033 | 0.032 | |
| Bonding film thickness | ≥0.008 mm | 0.017 | 0.017 | 0.017 | |
| Overall Diameter | ≤ 0.395 mm | 0.432 | 0.433 | 0.432 | |
| DC Resistance | ≤ 182.3Ω/m | 179.1 | 179.2 | 179.3 | |
| Elongation | ≥ 28 % | 32 | 32 | 33 | |
| Breakdown Voltage | ≥ 5000V | 6829 | |||
| Bonding strength | ≥60g | 80 | |||
|
Solder Ability 400± 5℃ 2Sec |
Max. 3 s |
Max.1.5 s
|
|||
| Adherence | Coating layer is good | GOOD | |||
