| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.18mm |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Hot Air Alcohol 0.18mm Self Bonding Polyurethane Covered Enameled Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.17mm |
| Conductor Material: | Copper | Key Word: | Hot Air Alcohol 0.18mm Self Bonding Polyurethane Covered Enameled Copper Wire |
| Type: | Hot Air Alcohol 0.18mm Self Bonding Polyurethane Covered Enameled Copper Wire | ||
| High Light: | gauge 32 self bonding wire,polyurethane covered self bonding wire,polyurethane covered enameled copper wire |
||

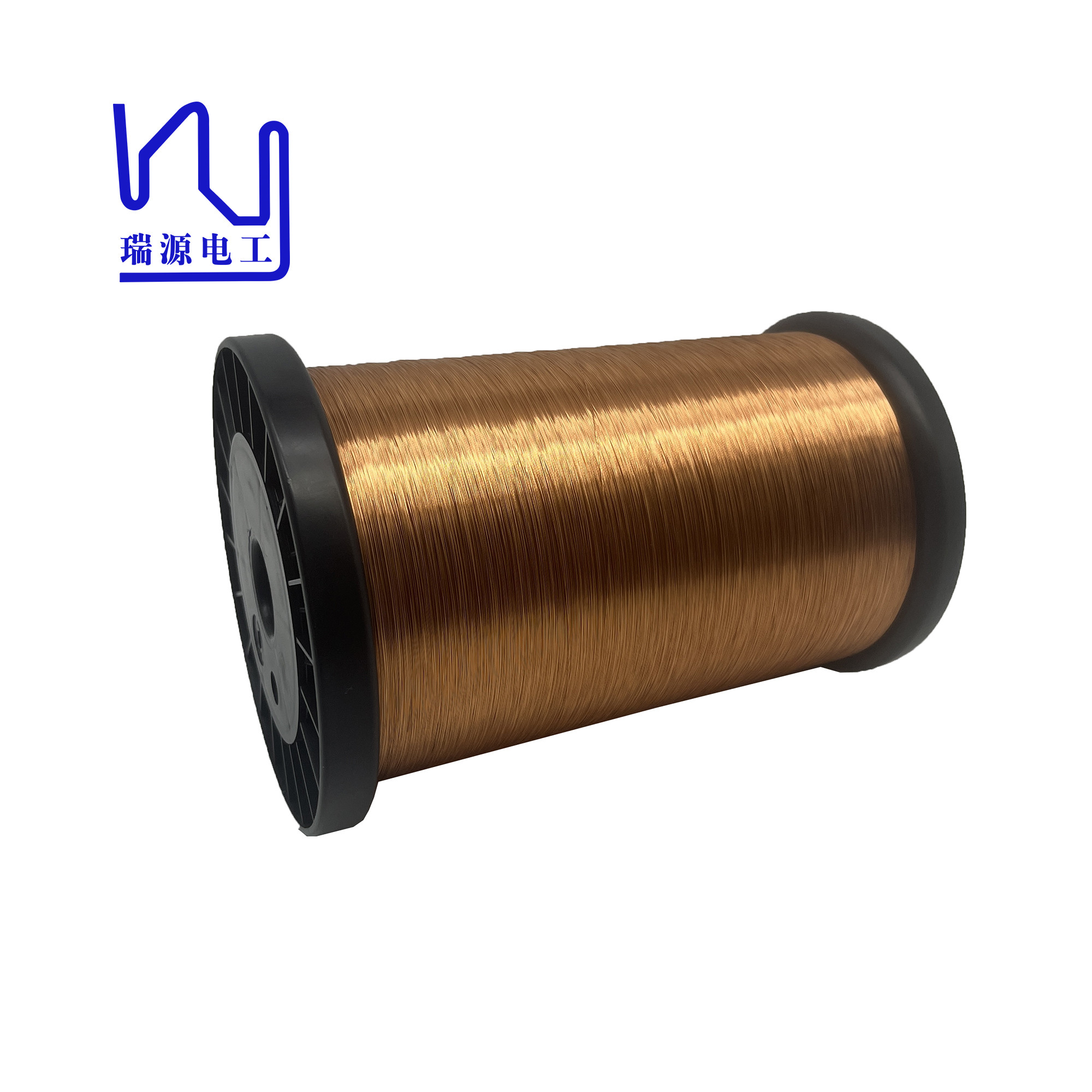

Hot Air Alcohol 0.18mm Self Bonding Polyurethane Covered Enameled Copper Wire
Advantages
Its excellent heat resistance means that it can operate in high temperature environment for a long time without damage. This hot air self-adhesive enamelled copper wire excels in high temperature applications such as power tools, communication equipment and automotive electronics.
|
Name |
Hot Air Alcohol 0.18mm Self Bonding Polyurethane Covered Enameled Copper Wire |
|
Key word |
Hot Air Alcohol 0.18mm Self Bonding Polyurethane Covered Enameled Copper Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.18mm |
| Test Item | Unit | Standard Value | Reality Value | ||
| Min. | Ave. | Max. | |||
| Conductor dimensions | mm | 0.18±0.003 | 0.180 | 0.180 | 0.180 |
|
(Basecoat dimensions) Overall dimensions |
mm | Max.0.226 | 0.210 | 0.211 | 0.212 |
| Insulation Film Thickness | mm | Min. 0.008mm | 0.019 | 0.020 | 0.020 |
| Bonding Film Thickness | mm | Min.0.004 | 0.011 | 0.011 | 0.012 |
| Continuity of coverin(50V/30m) | Pcs | Max.60 | Max.0 | ||
| Flexibility | / | / | |||
| Adherence | no crack | Good | |||
| Breakdown Voltage | V | Min.2600 | Min.4469 | ||
|
Resistance to Softening(Cut Through) |
℃ | Continue 2 times pass | 300℃/Good | ||
|
(390℃±5℃)Solder test |
s | / | / | ||
| Bonding Strength | g | Min. 29.4 | 50 | ||
| Electrical Resistance(20℃) | Ω/m | Max.715.0 | 679 | 680 | 681 |
| Elongation | % | Min.15 | 29 | 30 | 30 |
| Breaking Load | N | Min | / | / | / |
| Surface appearance | Smooth | Good | |||
