| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.18mm |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.18mm Hot Air Self-bonding Enamel Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.17mm |
| Conductor Material: | Copper | Key Word: | 0.18mm Hot Air Self-bonding Enamel Copper Wire |
| Type: | 0.18mm Hot Air Self-bonding Enamel Copper Wire | ||
| High Light: | 0.18 polyurethane enameled copper wire,self bonding polyurethane enameled copper wire,self bonding enameled copper magnet wire |
||

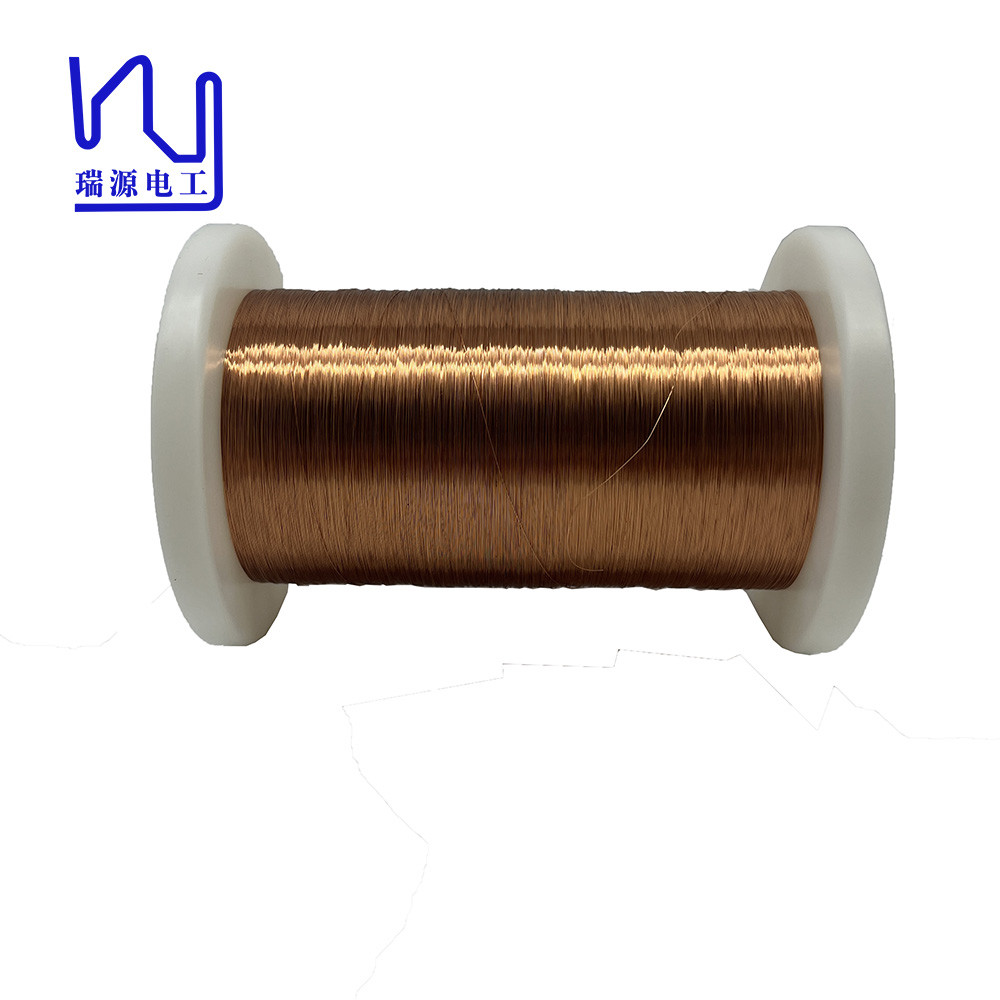

0.18mm Hot Air Self-bonding Enamel Copper Wire
The 0.18mm hot air self-adhesive enamelled copper wire has become the first choice material for the new generation in the electronics industry due to its excellent performance and wide application. Whether it is durability requirements in high temperature environments or application needs in the field of voice coils, our products can provide the best solution.
Feel free to contact us to learn more about our 0.2mm hot air self-adhesive enamelled copper wire, we look forward to providing you with professional technical support and high-quality products.
|
Name |
0.18mm Hot Air Self-bonding Enamel Copper Wire |
|
Key word |
0.18mm Hot Air Self-bonding Enamel Copper Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.18mm |
| Test Item | Unit | Standard Value | Reality Value | ||
| Min. | Ave. | Max. | |||
| Conductor dimensions | mm | 0.18±0.003 | 0.180 | 0.180 | 0.180 |
|
(Basecoat dimensions) Overall dimensions |
mm | Max.0.226 | 0.210 | 0.211 | 0.212 |
| Insulation Film Thickness | mm | Min. 0.008mm | 0.019 | 0.020 | 0.020 |
| Bonding Film Thickness | mm | Min.0.004 | 0.011 | 0.011 | 0.012 |
| Continuity of coverin(50V/30m) | Pcs | Max.60 | Max.0 | ||
| Flexibility | / | / | |||
| Adherence | no crack | Good | |||
| Breakdown Voltage | V | Min.2600 | Min.4469 | ||
|
Resistance to Softening(Cut Through) |
℃ | Continue 2 times pass | 300℃/Good | ||
|
(390℃±5℃)Solder test |
s | / | / | ||
| Bonding Strength | g | Min. 29.4 | 50 | ||
| Electrical Resistance(20℃) | Ω/m | Max.715.0 | 679 | 680 | 681 |
| Elongation | % | Min.15 | 29 | 30 | 30 |
| Breaking Load | N | Min | / | / | / |
| Surface appearance | Smooth | Good | |||
