| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.016mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.011mm-0.8mm Round Polyurethane Insulated Self-bonding Enameled Winding Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.016mm |
| Conductor Material: | Copper | Key Word: | 0.011mm-0.8mm Round Polyurethane Insulated Self-bonding Enameled Winding Copper Wire |
| Type: | 0.011mm-0.8mm Round Polyurethane Insulated Self-bonding Enameled Winding Copper Wire | ||
| High Light: | 0.011mm self bonding enamelled copper wire,round self bonding enamelled copper wire,0.8mm self bonding copper wire |
||

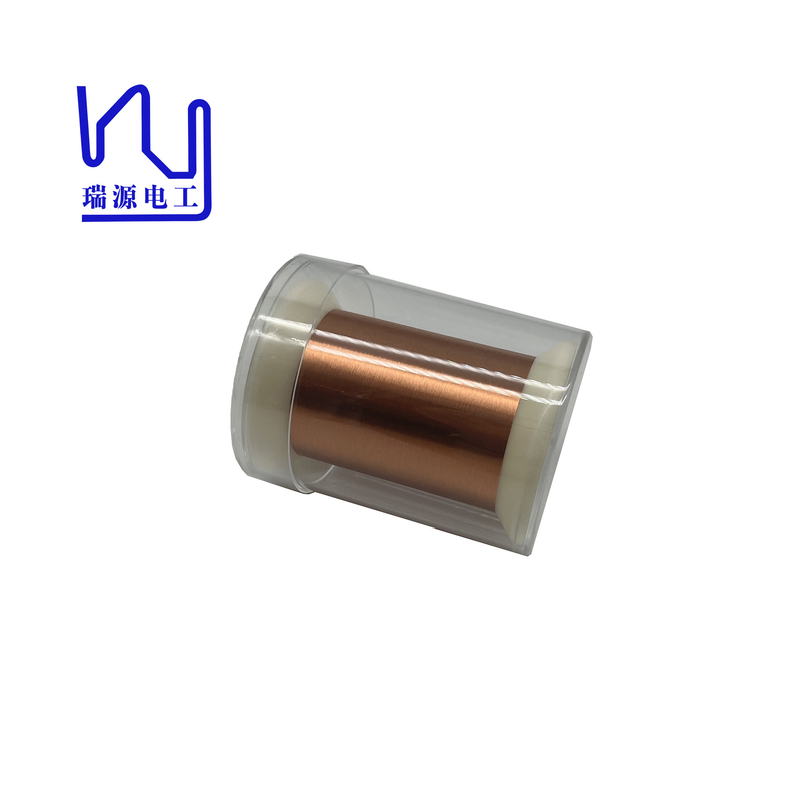

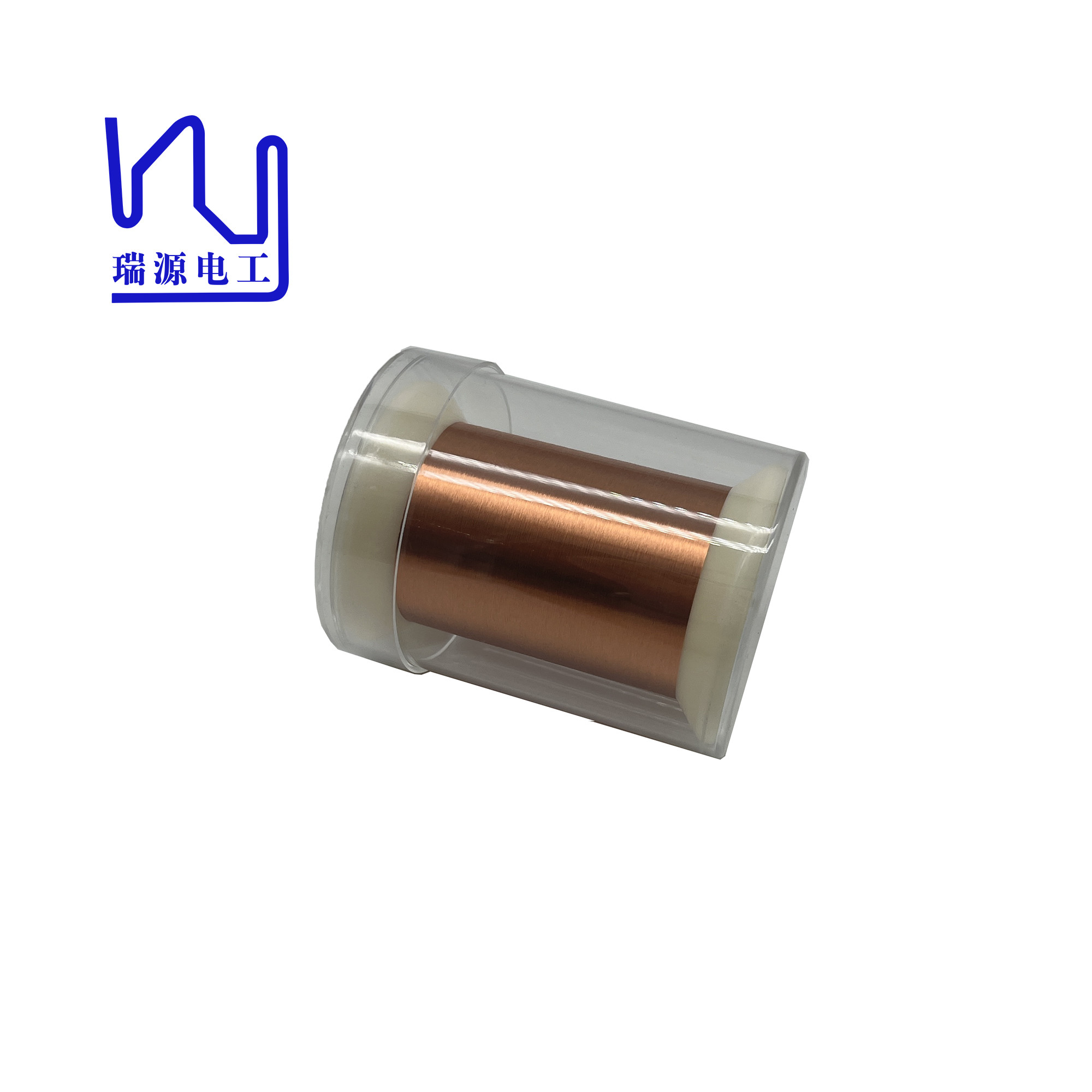

0.011mm-0.8mm Round Polyurethane Insulated Self-bonding Enameled Winding Copper Wire
Ultra-fine enamelled copper wire is also widely used in the field of medical equipment. In medical devices, fine wires are a key component for various biosensing and medical monitoring. Ultra-fine enamelled copper wire can provide high flexibility and conductivity, and is suitable for the manufacture of medical devices such as minimally invasive surgery, cardiac pacemakers, and cochlear implants. Its high quality ensures precise control and accurate monitoring of vitals.
|
Name |
0.011mm-0.8mm Round Polyurethane Insulated Self-bonding Enameled Winding Copper Wire |
|
Key word |
0.011mm-0.8mm Round Polyurethane Insulated Self-bonding Enameled Winding Copper Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.016mm |
| Characteristics |
Technical requests |
Test Results | Conclusion |
|||
| Sample 1 | Sample 2 | Sample 3 | ||||
| Surface | Good | OK | OK | OK | OK | |
| Bare Wire Diameter |
0.016± |
0.001 | 0.016 |
0.016 |
0.016 |
OK |
| 0.001 | ||||||
| Overall diameter | ≤ 0.020mm | 0.015 | 0.0195 | 0.01958 | OK | |
| Insulation thickness | Min0.001 | 0.002 | 0.002 | 0.002 | OK | |
| Self-bonding layer thickness | Min0.001 | 0.0015 | 0.0015 | 0.0015 | OK | |
| Elongation | ≥ 6 % | 12 | 12 | 12 | OK | |
| Breakdown Voltage | ≥ 120V | 248 | 260 | 270 | OK | |
| Pinhole Test | ≤ 5 hole/5m | 0 | 0 | 0 | OK | |
| Enamel Continuity(50v/30m) | ≤ 60 hole/5m | 0 | 0 | 0 | OK | |
| Bonding Strength | ≥5 g | 10 | 10 | 9 | OK | |
| Electrical Resistance | 84.29-91.37Ω/m | 86.3 | 86.3 | 86.3 | OK | |
