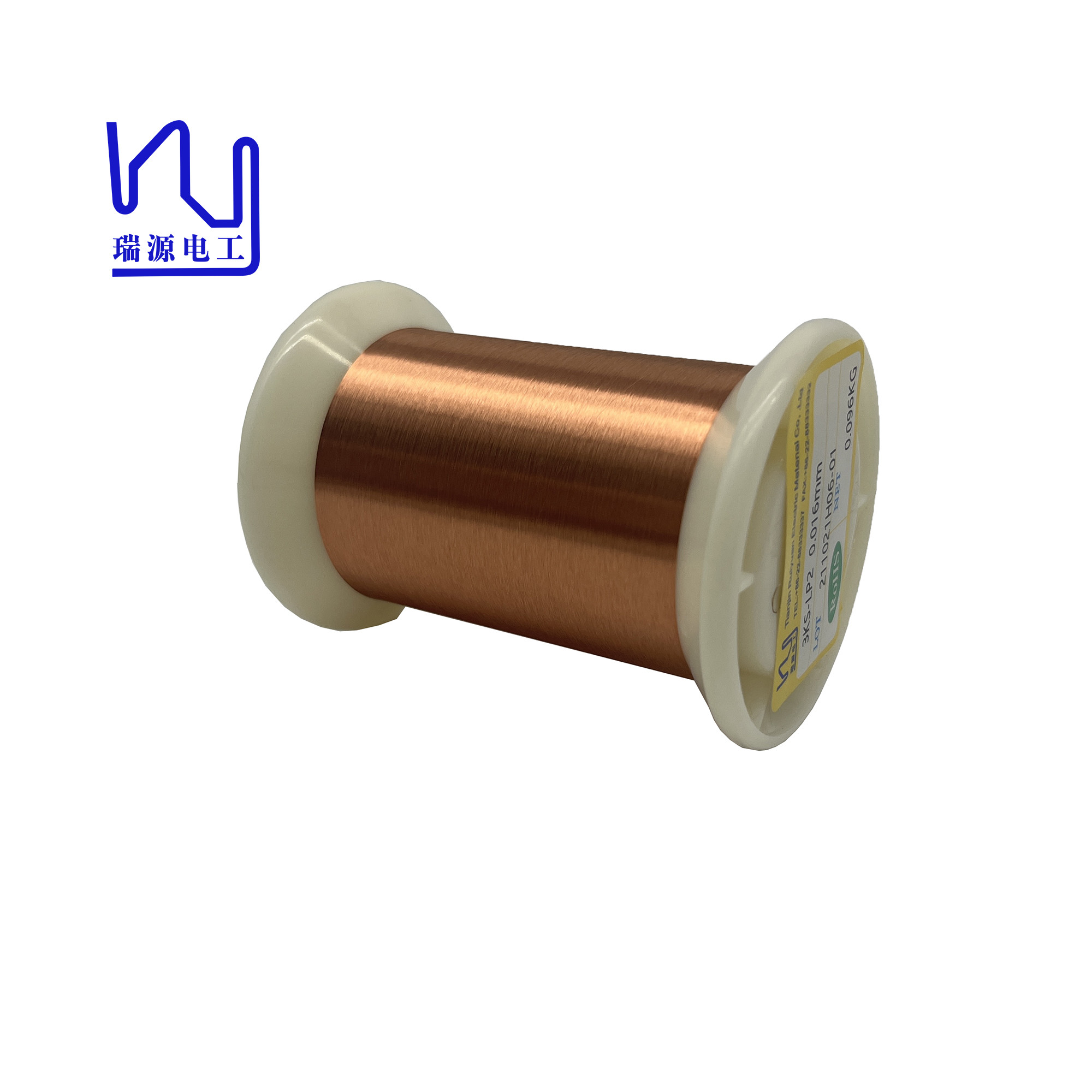

Name: 0.016mm Hot Wind Self Bonding Wire Self Adhesive Super Thin Enameled Copper
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.016mm
Price: 24.06 USD
Availability: InStock

0.016mm Hot Wind Self Bonding Wire Self Adhesive Super Thin Enameled Copper

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.016mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	2UEW-F 0.016mm Hot Wind Self-adhesive Super Thin Enameled Copper Wire	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.016mm
Conductor Material:	Copper	Key Word:	2UEW-F 0.016mm Hot Wind Self-adhesive Super Thin Enameled Copper Wire
Type:	2UEW-F 0.016mm Hot Wind Self-adhesive Super Thin Enameled Copper Wire
Highlight:	enameled copper self bonding wire , super thin self bonding wire , super thin self bonding copper wire

Product Description

2UEW-F 0.016mm Hot Wind Self-adhesive Super Thin Enameled Copper Wire

This wire is a high-quality enamelled copper wire with a wire diameter of 0.016mm, the temperature resistance level reaches 155 degrees.

We also provide self-adhesive wire, including hot air self-adhesive type and alcohol self-adhesive type.


			Name

			2UEW-F 0.016mm Hot Wind Self-adhesive Super Thin Enameled Copper Wire

			Key word

			2UEW-F 0.016mm Hot Wind Self-adhesive Super Thin Enameled Copper Wire

			Insulationh

			Enamel

			Thermal rating

			155

			Diameter of the enameled copper wire

			0.016mm

			Characteristics

			Technical requests

			Test Results
			Conclusion

			Sample 1
			Sample 2
			Sample 3

			Surface
			Good
			OK
			OK
			OK
			OK

			Bare Wire Diameter

			0.016±

			0.001
			0.016

			0.016

			0.016

			OK

			0.001

			Overall diameter
			≤ 0.020mm
			0.015
			0.0195
			0.01958
			OK

			Insulation thickness
			Min0.001
			0.002
			0.002
			0.002
			OK

			Self-bonding layer thickness
			Min0.001
			0.0015
			0.0015
			0.0015
			OK

			Elongation
			≥ 6 %
			12
			12
			12
			OK

			Breakdown Voltage
			≥ 120V
			248
			260
			270
			OK

			Pinhole Test
			≤ 5 hole/5m
			0
			0
			0
			OK

			Enamel Continuity(50v/30m)
			≤ 60 hole/5m
			0
			0
			0
			OK

			Bonding Strength
			≥5 g
			10
			10
			9
			OK

			Electrical Resistance
			84.29-91.37Ω/m
			86.3
			86.3
			86.3
			OK

Tag:

0.016mm Hot Wind Self Bonding Wire Self Adhesive Super Thin Enameled Copper

enameled copper self bonding wire

super thin self bonding wire

super thin self bonding copper wire

flat copper wire,

covered copper wire,

self solderable copper wire

Round Self Bonding Wire

0.02mm Self Bonding Wire

0.12mm Self Bonding Enameled Copper Wire

Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire

AIW220 0.14mm Hot Wind Enameled Copper Wire for Electrical

AIW 0.14mm High Purity Copper Wire Insulated Enameled Solid

Class 220 High Temperature Enamel Insulated Copper Winding Wire 0.14mm

SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC / JIS / NEMA 1000

Name	2UEW-F 0.016mm Hot Wind Self-adhesive Super Thin Enameled Copper Wire
Key word	2UEW-F 0.016mm Hot Wind Self-adhesive Super Thin Enameled Copper Wire
Insulationh	Enamel
Thermal rating	155
Diameter of the enameled copper wire	0.016mm

Characteristics	Technical requests		Test Results			Conclusion
Characteristics	Technical requests		Sample 1	Sample 2	Sample 3	Conclusion
Surface	Good		OK	OK	OK	OK
Bare Wire Diameter	0.016±	0.001	0.016	0.016	0.016	OK
Bare Wire Diameter	0.016±	0.001	0.016	0.016	0.016	OK
Overall diameter	≤ 0.020mm		0.015	0.0195	0.01958	OK
Insulation thickness	Min0.001		0.002	0.002	0.002	OK
Self-bonding layer thickness	Min0.001		0.0015	0.0015	0.0015	OK
Elongation	≥ 6 %		12	12	12	OK
Breakdown Voltage	≥ 120V		248	260	270	OK
Pinhole Test	≤ 5 hole/5m		0	0	0	OK
Enamel Continuity(50v/30m)	≤ 60 hole/5m		0	0	0	OK
Bonding Strength	≥5 g		10	10	9	OK
Electrical Resistance	84.29-91.37Ω/m		86.3	86.3	86.3	OK
