Name: 0.03mm Self Bonding Wire High Temperature 180c Self Adhesive
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.03mm
Price: 24.06 USD
Availability: InStock

0.03mm Self Bonding Wire High Temperature 180c Self Adhesive

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.03mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	0.03mm High Temperature 180C Self Adhesive Enameled Copper Winding Wire	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.03mm
Conductor Material:	Copper	Key Word:	3UEW 155 0.03mm Super Thin Hot Air Self-adhesive Enameled Copper Wire For Speaker Coils
Type:	0.03mm High Temperature 180C Self Adhesive Enameled Copper Winding Wire
Highlight:	0.03mm self bonding wire , high temperature self bonding wire , self bonding enameled copper winding wire

Product Description

0.03mm High Temperature 180C Self Adhesive Enameled Copper Winding Wire

There is a big variety of enameled copper wire types available. The different insulation type are described in different standards, such as IEC 60317, NEMA MW 1000 or JIS C3202.

Under the respective standard the typical technical values are given for the different coats such as Polyurethane, Polyester, Polyesterimide etc.

Tianjin Ruiyuan Enameled Copper Wire can be applied to stepping motors for quartz watches, instrument coils, coils, Sensors, Transponders, etc.

Key word	0.03mm High Temperature 180C Self Adhesive Enameled Copper Winding Wire
Characteristics	Technical requests		Test Results
			Sample 1	Sample 2	Sample 3
Surface	Good		OK	OK	OK
Bare Wire Diameter	0.030mm±	0.001	0.030mm	0.030mm	0.030mm
Overall Diamter	max.0.042mm		0.0419mm	0.0419mm	0.0419mm
Insulation Thickness	min. 0.002mm		0.003mm	0.003mm	0.003mm
Bonding Film Thickness	min. 0.002mm		0.003mm	0.003mm	0.003mm
Continuity of covering(12V/5m)	max. 3		max. 0	max. 0	max. 0
Adherence	No crack		OK
Cut Through	continue 3 times pass		170℃/Good
Solder Test 375℃±5℃	max. 2s		max. 1.5s
Bonding Strength	min. 1.5g		9 g
Conductor Resistance(20℃)	≤ 23.98- 25.06Ω/m		24.76Ω/m
Breakdown voltage	≥ 375 V		MIN. 1149V
Elongation	min. 12%		19%

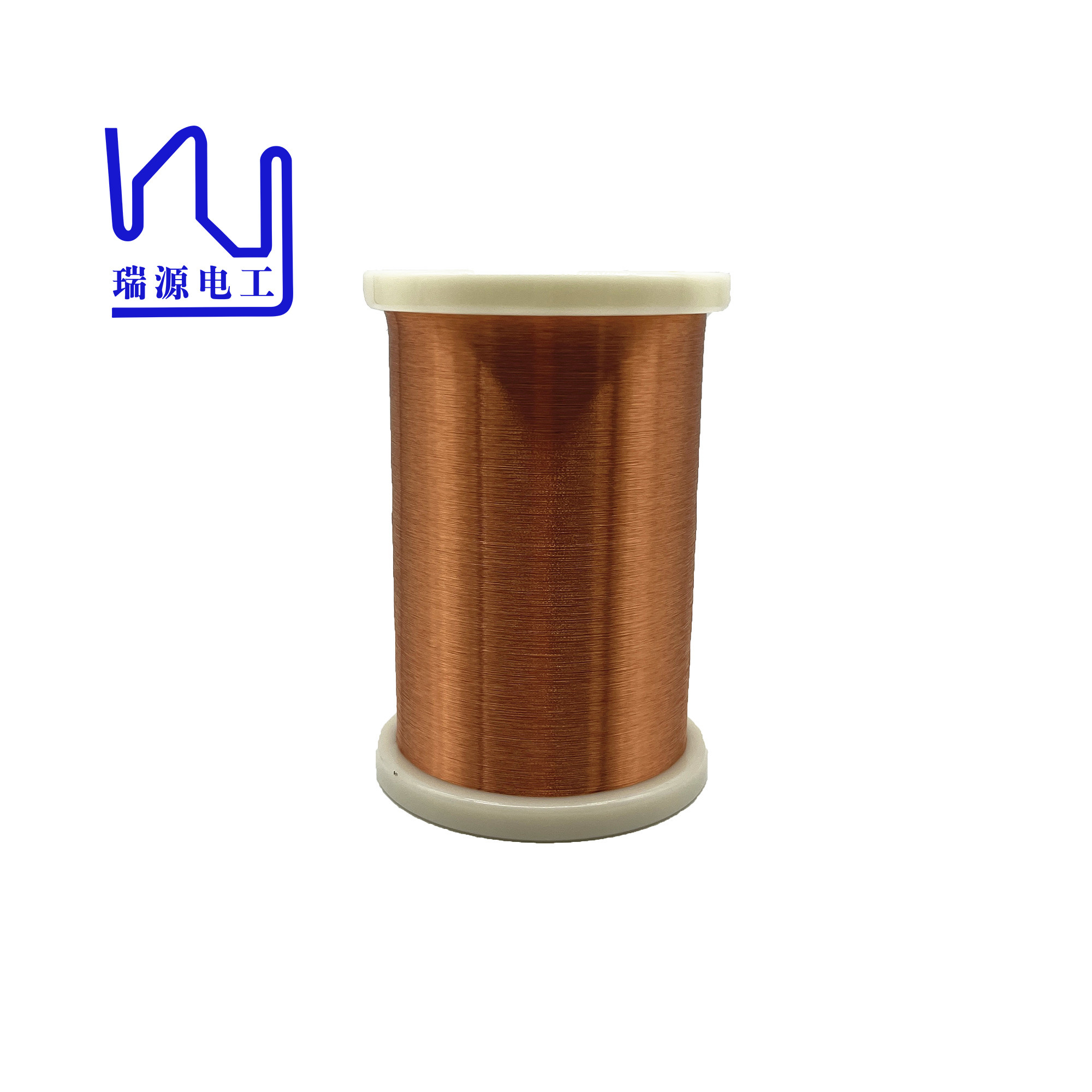

0.03mm Self Bonding Wire High Temperature 180c Self Adhesive 0

0.03mm Self Bonding Wire High Temperature 180c Self Adhesive 1

0.03mm Self Bonding Wire High Temperature 180c Self Adhesive 2
