Name: 3uew 155 0.03mm Self Bonding Wire For Speaker Coils
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.03mm
Price: 24.06 USD
Availability: InStock

3uew 155 0.03mm Self Bonding Wire For Speaker Coils

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.03mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	3UEW 155 0.03mm Super Thin Hot Air Self-adhesive Enameled Copper Wire For Speaker Coils	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.03mm
Conductor Material:	Copper	Key Word:	3UEW 155 0.03mm Super Thin Hot Air Self-adhesive Enameled Copper Wire For Speaker Coils
Type:	Hot Wind Self Adhesive Enameled Copper Wire
Highlight:	0.03 mm self bonding wire , enamel insulated self bonding wire , self bonding enamel insulated wire

Product Description

3UEW 155 0.03mm Super Thin Hot Air Self-adhesive Enameled Copper Wire For Speaker Coils

As a professional supplier, we are committed to providing customers with high-quality self-adhesive enamelled copper wire products. Our hot air self-adhesive enameled wire is currently the main model, which meets environmental protection standards and is safer and more reliable to use.

Key word	2UEW 155 0.03mm Alcohol / Solvent Self Bonding Enameled Copper Wire For Speaker
Characteristics	Technical requests		Test Results
			Sample 1	Sample 2	Sample 3
Surface	Good		OK	OK	OK
Bare Wire Diameter	0.030mm±	0.001	0.030mm	0.030mm	0.030mm
Overall Diamter	max.0.042mm		0.0419mm	0.0419mm	0.0419mm
Insulation Thickness	min. 0.002mm		0.003mm	0.003mm	0.003mm
Bonding Film Thickness	min. 0.002mm		0.003mm	0.003mm	0.003mm
Continuity of covering(12V/5m)	max. 3		max. 0	max. 0	max. 0
Adherence	No crack		OK
Cut Through	continue 3 times pass		170℃/Good
Solder Test 375℃±5℃	max. 2s		max. 1.5s
Bonding Strength	min. 1.5g		9 g
Conductor Resistance(20℃)	≤ 23.98- 25.06Ω/m		24.76Ω/m
Breakdown voltage	≥ 375 V		MIN. 1149V
Elongation	min. 12%		19%

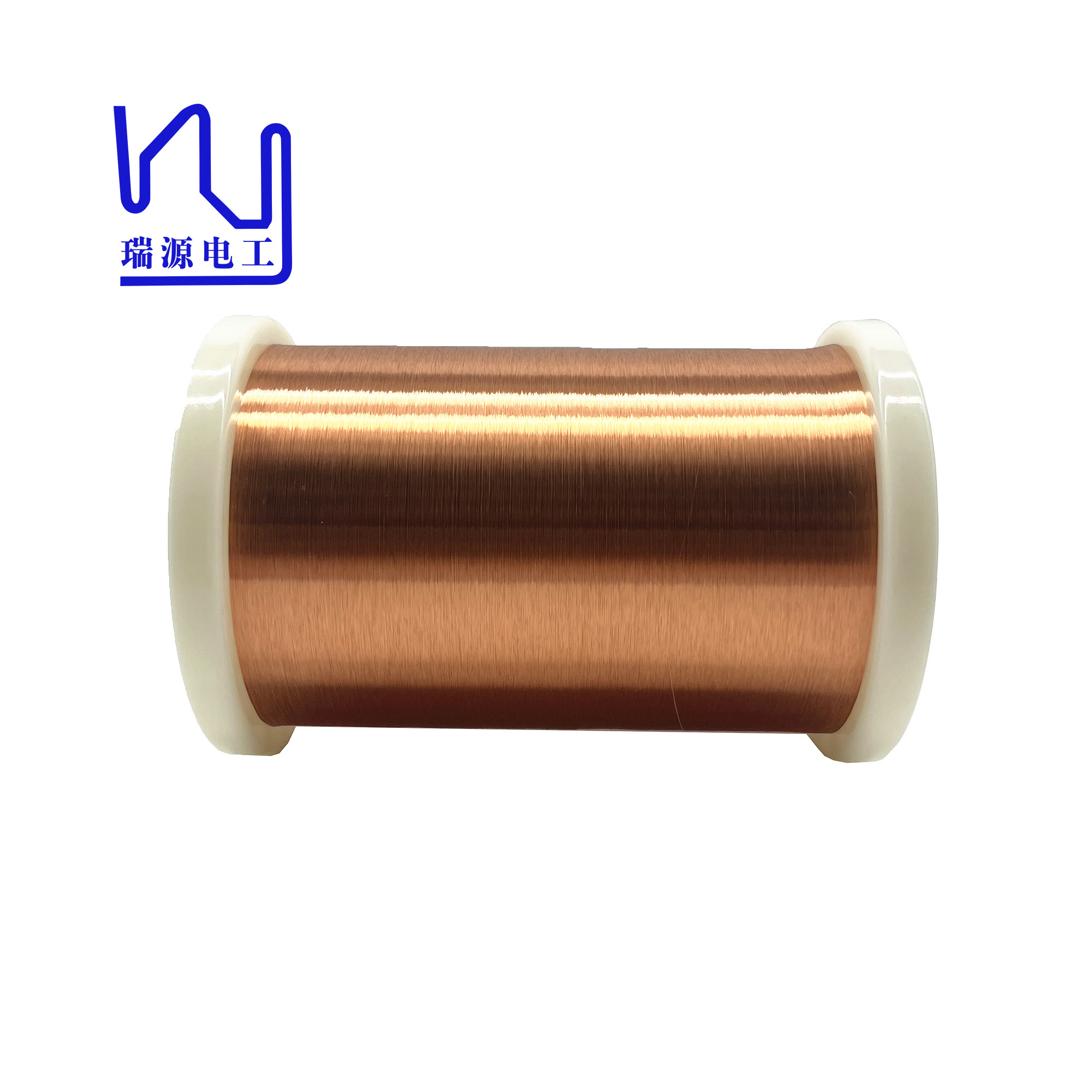

3uew 155 0.03mm Self Bonding Wire For Speaker Coils 0

3uew 155 0.03mm Self Bonding Wire For Speaker Coils 1

3uew 155 0.03mm Self Bonding Wire For Speaker Coils 2
