Name: Grade 2 180 0.03mm Uew Enamelled Copper Wire High Purity Coductor
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.03mm
Price: 24.06 USD
Availability: InStock

Grade 2 180 0.03mm Uew Enamelled Copper Wire High Purity Coductor

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.03mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.03mm
Conductor Material:	Copper	Key Word:	Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor
Highlight:	uew enamelled copper wire , self bonding enamelled copper wire , 0.03 mm enamelled copper wire

Product Description

Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor


Description:Polyurethane Enameled copper wire
Designation: UEW 155 /180
Diameter: 0.011mm--0.025mm


			Name

			Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor

			Key word

			Enameled copper wire

			Insulationh

			Enamel

			Thermal rating

			155/180

			Diameter of the enameled copper wire

			0.03mm

			Type

			Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor

			haracteristics

			Technical requests

			Test Results

			Conclusion

			Sample1

			Surface

			Good

			OK

			OK

			Bare Wire Diameter

0.030±0.001

0.03

OK

			Overall diameter

			≤ 0.038 mm

			0.036

			OK

			Insulation thickness

			Min 0.004

			0.006

			OK

			Elongation

			≥ 10 %

			23.9

			OK

			Breakdown voltage

			≥ 250 V

			1161

			OK

			Pinbole test

			≤  8hole/5m

			0

			OK

			Electrical Resistance

			≤ 26.103Ω/m

			25.08

			OK

			Test items

			Technical Requests

			Results

			Conclusion

			Adhesive

			No crack

			OK

			Aprroved

			Heat Shock

			175℃±5℃/30min no crack

			OK

			Solder Ability

			390℃±5℃/2Sec Smooth

			OK

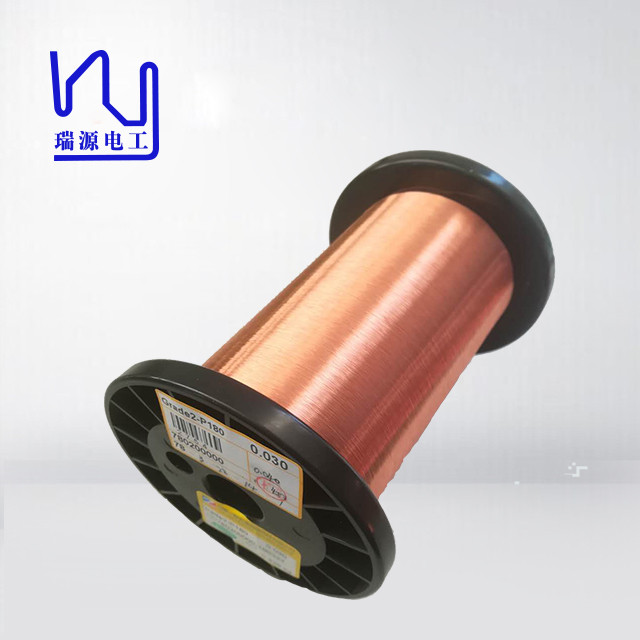

Grade 2 180 0.03mm Uew Enamelled Copper Wire High Purity Coductor 0

Grade 2 180 0.03mm Uew Enamelled Copper Wire High Purity Coductor 1

Grade 2 180 0.03mm Uew Enamelled Copper Wire High Purity Coductor 2
