52 Awg Self Bonding Wire Hot Wind Magnet Copper For Headset Voice Coils

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.02mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	52 AWG Hot Wind Bonding Magnet Copper Wire For Headset Voice Coils	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.02mm
Conductor Material:	Copper	Key Word:	52 AWG Hot Wind Bonding Magnet Copper Wire For Headset Voice Coils
Highlight:	52 awg self bonding wire , headset voice coils self bonding wire , 0.02mm enamelled copper wire

Product Description

52 AWG Hot wind bonding magnet copper wire for headset voice coils

- Small type motor ( Electric household appliance, Toys & etc. )
- Transformer for measuring instrument
- For communication : High frequency coil for transformer, Coil for power source transformer
- Coil-small transformer, TV, speaker & etc.


			Name

			52 AWG Hot wind bonding magnet copper wire for headset voice coils



			Key word

			Enameled copper wire



			Insulationh

			Enamel



			Thermal rating

			155/180



			Diameter of the enameled copper wire

			0.02mm



			Type

			52 AWG Hot wind bonding magnet copper wire for headset voice coils









			Surface
			Good
			OK
			OK
			OK
			OK


			Bare Wire Diameter
			0.025±
			0.001
			0.025
			0.025
			0.025
			OK


			0.001


			Overall diameter
			≤ 0.034 mm
			0.0339
			0.0339
			0.0339
			OK


			Insulation thickness
			Min0.002
			0.003
			0.003
			0.003
			OK


			Self-bonding layer thickness
			Min0.002
			0.003
			0.003
			0.003
			OK


			Elongation
			≥ 14 %
			18
			18
			18
			OK


			Breakdown Voltage
			≥ 300 V
			769
			900
			855
			OK


			Pinhole Test
			≤ 3 hole/5m
			0
			0
			0
			OK


			Bonding Strength
			≥10 g
			12
			11
			12
			OK


			Electrical Resistance
			34-36Ω/m
			34.99
			34.99
			34.99
			OK


			Remark:



			Test Items
			Technical Requests
			Results
			Conclusion:


			1
			Adhesive
			No crack
			OK
			Approved


			2
			Heat Shock
			175℃/1h no crack
			OK
			Audit by
			Tested by


			3
			Solder Ability
			390℃±5C/2S Smooth
			OK

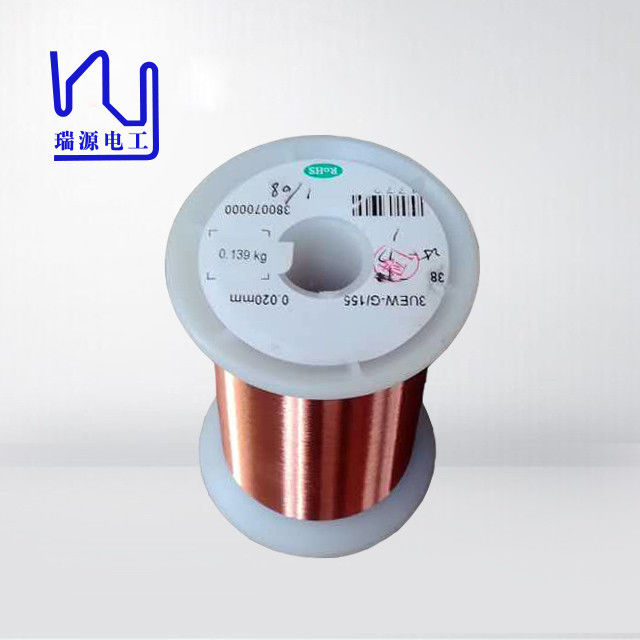

52 Awg Self Bonding Wire Hot Wind Magnet Copper For Headset Voice Coils 0

52 Awg Self Bonding Wire Hot Wind Magnet Copper For Headset Voice Coils 1

52 Awg Self Bonding Wire Hot Wind Magnet Copper For Headset Voice Coils 2

Tag:

52 Awg Self Bonding Wire Hot Wind Magnet Copper For Headset Voice Coils

52 awg self bonding wire

headset voice coils self bonding wire

0.02mm enamelled copper wire

- Small type motor ( Electric household appliance, Toys & etc. )
- Transformer for measuring instrument
- For communication : High frequency coil for transformer, Coil for power source transformer
- Coil-small transformer, TV, speaker & etc.

flat copper wire,

covered copper wire,

self solderable copper wire

Round Self Bonding Wire

0.02mm Self Bonding Wire

0.12mm Self Bonding Enameled Copper Wire

Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire

AIW220 0.14mm Hot Wind Enameled Copper Wire for Electrical

AIW 0.14mm High Purity Copper Wire Insulated Enameled Solid

Class 220 High Temperature Enamel Insulated Copper Winding Wire 0.14mm

SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC / JIS / NEMA 1000

Name	52 AWG Hot wind bonding magnet copper wire for headset voice coils
Key word	Enameled copper wire
Insulationh	Enamel
Thermal rating	155/180
Diameter of the enameled copper wire	0.02mm
Type	52 AWG Hot wind bonding magnet copper wire for headset voice coils

Surface			Good		OK		OK		OK		OK
Bare Wire Diameter			0.025±	0.001	0.025		0.025		0.025		OK
				0.001
Overall diameter			≤ 0.034 mm		0.0339		0.0339		0.0339		OK
Insulation thickness			Min0.002		0.003		0.003		0.003		OK
Self-bonding layer thickness			Min0.002		0.003		0.003		0.003		OK
Elongation			≥ 14 %		18		18		18		OK
Breakdown Voltage			≥ 300 V		769		900		855		OK
Pinhole Test			≤ 3 hole/5m		0		0		0		OK
Bonding Strength			≥10 g		12		11		12		OK
Electrical Resistance			34-36Ω/m		34.99		34.99		34.99		OK
Remark:
	Test Items	Technical Requests				Results		Conclusion:
1	Adhesive	No crack				OK		Approved
2	Heat Shock	175℃/1h no crack				OK		Audit by		Tested by
3	Solder Ability	390℃±5C/2S Smooth				OK
