Round Self Bonding Enamelled Copper Wire 0.02mm 0.03mm 0.04mm

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.05mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Round Enamelled Self Bonding Wire Thin Magnet Wire For Senior Watch Coil	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.05mm
Conductor Material:	Copper	Key Word:	Round Enamelled Self Bonding Wire Thin Magnet Wire For Senior Watch Coil
Highlight:	round self bonding enamelled copper wire , 0.04 mm self bonding enamelled copper wire , bondable 0.03 mm enamelled copper wire

Product Description

Round Enamelled Self Bonding Wire Thin Magnet Wire For Senior Watch Coil

Describes a number of possible const-ructions of bondable wire, having PEW/UEW/AIW base insulation with a thermoplastic bondcoat which may be activated by heat or solvent. The insulation material could be changed to meet different applications.

Bonding method options: Hot air,Solvent and others


			Name
			UL Certified Voice Coil Material AWG 0.02mm 0.03mm 0.04mm Self Bonding Enameled Copper Wire

			Key word
			Enameled copper wire

			Insulationh
			Enamel

			Thermal rating
			155/180

			Diameter of the enameled copper wire
			0.05mm

			Type
			UL Certified Voice Coil Material AWG 0.02mm 0.03mm 0.04mm Self Bonding Enameled Copper Wire

			Item

			Characteristics

			Test Standard

			Conclusion

			1

			Bare Wire Diameter

			0.05±0.002MM

			0.050

			2

			Overall Diameter

			≤0.081MM

			0.077

			3

			Conductor Resistance

			MAX: 9.528Ω/M

			8.754Ω/M

			4

			Breakdown voltage

			≥3000V

			4245V

			5

			Elongation

			MIN:12%

			21.6%

			6

			Solderability

			390± 5℃ 2 Secs No Slags

			OK

			Conclusion

			Qualified

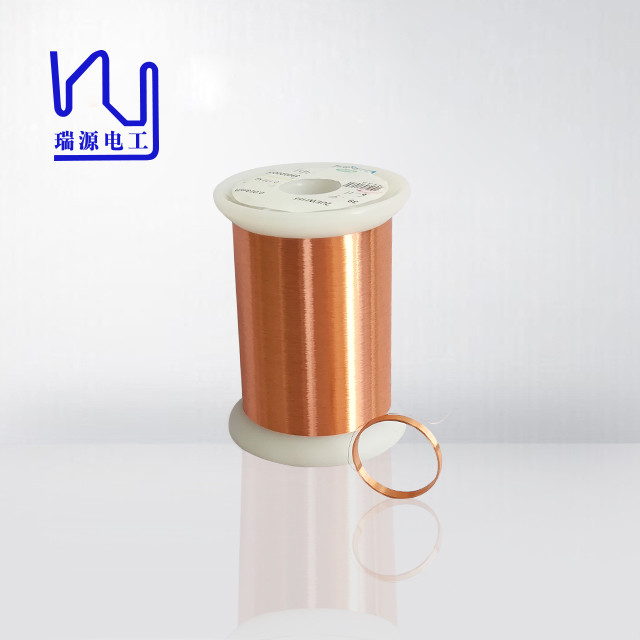

Round Self Bonding Enamelled Copper Wire 0.02mm 0.03mm 0.04mm 0

Round Self Bonding Enamelled Copper Wire 0.02mm 0.03mm 0.04mm 1

Round Self Bonding Enamelled Copper Wire 0.02mm 0.03mm 0.04mm 2
