Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.05mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.05mm
Conductor Material:	Copper	Key Word:	Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity
Highlight:	good conductivity self bonding wire , 0.012 mm self bonding wire , 0.8 mm enamelled copper wire

Product Description

Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity

Self-bonding magnet wire, is film insulated wire top-coated with a thermoplastic adhesive. When activated, the thermoplastic bonds turn to turn windings to produce self-supporting coils or coils of unusual or difficult configuration
Bonding method options: Hot air,Solvent and others


			Name
			Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity

			Key word
			Enameled copper wire

			Insulationh
			Enamel

			Thermal rating
			155/180

			Diameter of the enameled copper wire
			0.05mm

			Type
			Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity

			Item

			Characteristics

			Test Standard

			Conclusion

			1

			Bare Wire Diameter

			0.05±0.002MM

			0.050

			2

			Overall Diameter

			≤0.081MM

			0.077

			3

			Conductor Resistance

			MAX: 9.528Ω/M

			8.754Ω/M

			4

			Breakdown voltage

			≥3000V

			4245V

			5

			Elongation

			MIN:12%

			21.6%

			6

			Solderability

			390± 5℃ 2 Secs No Slags

			OK

			Conclusion

			Qualified

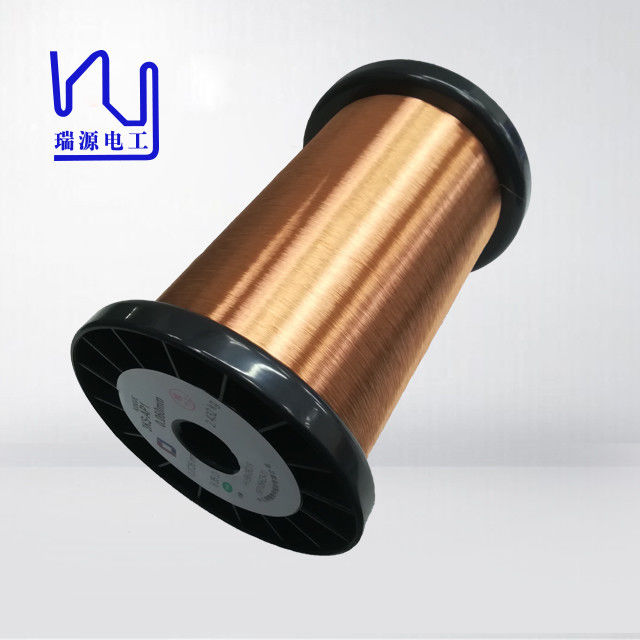

Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity 0

Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity 1

Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity 2

Tag:

Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity

good conductivity self bonding wire

0.012 mm self bonding wire

0.8 mm enamelled copper wire

flat copper wire,

covered copper wire,

self solderable copper wire

Round Self Bonding Wire

0.02mm Self Bonding Wire

0.12mm Self Bonding Enameled Copper Wire

Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire

AIW220 0.14mm Hot Wind Enameled Copper Wire for Electrical

AIW 0.14mm High Purity Copper Wire Insulated Enameled Solid

Class 220 High Temperature Enamel Insulated Copper Winding Wire 0.14mm

SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC / JIS / NEMA 1000

Name	Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity
Key word	Enameled copper wire
Insulationh	Enamel
Thermal rating	155/180
Diameter of the enameled copper wire	0.05mm
Type	Fine / Superfine Enamelled Self Bonding Wire 0.012 - 0.8mm With Good Conductivity

Item	Characteristics	Test Standard	Conclusion
1	Bare Wire Diameter	0.05±0.002MM	0.050
2	Overall Diameter	≤0.081MM	0.077
3	Conductor Resistance	MAX: 9.528Ω/M	8.754Ω/M
4	Breakdown voltage	≥3000V	4245V
5	Elongation	MIN:12%	21.6%
6	Solderability	390± 5℃ 2 Secs No Slags	OK
Conclusion		Qualified
