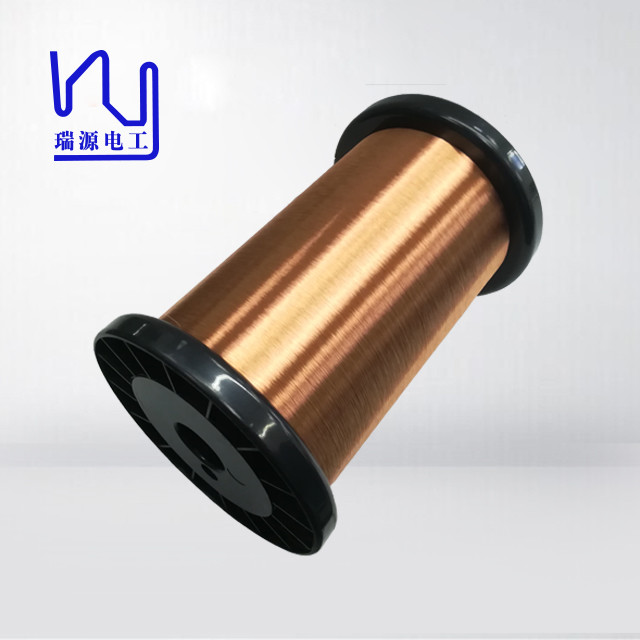

Enamelled Round Thin Self Bonding Magnet Wire For Senior Watch Coil

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.05mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Round Enamelled Self Bonding Wire Thin Magnet Wire For Senior Watch Coil	Thermal Rating:	155/180
Insulation Material:	Polyurethane	Diameter:	0.05mm
Conductor Material:	Copper	Key Word:	Round Enamelled Self Bonding Wire Thin Magnet Wire For Senior Watch Coil
Highlight:	polyurethane self bonding magnet wire , thin self bonding magnet wire , polyurethane self bonding copper wire

Product Description

Round Enamelled Self Bonding Wire Thin Magnet Wire For Senior Watch Coil

Describes a number of possible const-ructions of bondable wire, having PEW/UEW/AIW base insulation with a thermoplastic bondcoat which may be activated by heat or solvent. The insulation material could be changed to meet different applications.

Bonding method options: Hot air,Solvent and others


			Name
			44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor

			Key word
			Enameled copper wire

			Insulationh
			Enamel

			Thermal rating
			155/180

			Diameter of the enameled copper wire
			0.05mm

			Type
			44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor

			Item

			Characteristics

			Test Standard

			Conclusion

			1

			Bare Wire Diameter

			0.05±0.002MM

			0.050

			2

			Overall Diameter

			≤0.081MM

			0.077

			3

			Conductor Resistance

			MAX: 9.528Ω/M

			8.754Ω/M

			4

			Breakdown voltage

			≥3000V

			4245V

			5

			Elongation

			MIN:12%

			21.6%

			6

			Solderability

			390± 5℃ 2 Secs No Slags

			OK

			Conclusion

			Qualified

Enamelled Round Thin Self Bonding Magnet Wire For Senior Watch Coil 0

Enamelled Round Thin Self Bonding Magnet Wire For Senior Watch Coil 1

Enamelled Round Thin Self Bonding Magnet Wire For Senior Watch Coil 2

Tag:

Enamelled Round Thin Self Bonding Magnet Wire For Senior Watch Coil

polyurethane self bonding magnet wire

thin self bonding magnet wire

polyurethane self bonding copper wire

Describes a number of possible const-ructions of bondable wire, having PEW/UEW/AIW base insulation with a thermoplastic bondcoat which may be activated by heat or solvent. The insulation material could be changed to meet different applications.

flat copper wire,

covered copper wire,

self solderable copper wire

Round Self Bonding Wire

0.02mm Self Bonding Wire

0.12mm Self Bonding Enameled Copper Wire

Gauge 35 AWG Enameled Copper Wire Self Adhesive Magnet Wire

AIW220 0.14mm Hot Wind Enameled Copper Wire for Electrical

AIW 0.14mm High Purity Copper Wire Insulated Enameled Solid

Class 220 High Temperature Enamel Insulated Copper Winding Wire 0.14mm

SWG 0.14mm Copper Coil Wire Winding Materials Enamel Insulated Solid IEC / JIS / NEMA 1000

Name	44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor
Key word	Enameled copper wire
Insulationh	Enamel
Thermal rating	155/180
Diameter of the enameled copper wire	0.05mm
Type	44 AWG Gauge 0.050mm Copper Winding Enamelled Wire For Motor

Item	Characteristics	Test Standard	Conclusion
1	Bare Wire Diameter	0.05±0.002MM	0.050
2	Overall Diameter	≤0.081MM	0.077
3	Conductor Resistance	MAX: 9.528Ω/M	8.754Ω/M
4	Breakdown voltage	≥3000V	4245V
5	Elongation	MIN:12%	21.6%
6	Solderability	390± 5℃ 2 Secs No Slags	OK
Conclusion		Qualified
