2uew / 3uew Self Adhesive Self Bonding Wire Enameled Copper For Speaker Voice Coils

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: UEW
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: 2UEW / 3UEW Self Adhesive Enameled Copper Wire For Speaker Voice Coils Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.016mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Polyurethane
Rated Temperature: 155/180 Key Word: 2UEW / 3UEW Self Adhesive Enameled Copper Wire For Speaker Voice Coils
High Light:

2uew self bonding wire

,

self adhesive self bonding wire

,

3uew enamelled copper winding wire


Product Description

2UEW / 3UEW self adhesive enameled copper wire for speaker voice coils

The use of self-adhesive enameled wire (Self-Bonding Wire) with composite coating to wind the coil has changed the traditional transformer manufacturing mode. The coil can be made into a whole by only hot melting, which has certain mechanical properties and moisture-proof insulation properties. Therefore, the self-adhesive magnet wire can be wound into a skeletonless coil and without dipping, which can shorten the manufacturing cycle of magnetic components such as electro-acoustic equipment, and greatly improve the efficiency of mass production.



Name

2UEW / 3UEW self adhesive enameled copper wire for speaker voice coils

Key word

Enameled copper wire

Insulation

Polyurethane

Thermal rating

155degree

Diameter of the enameled copper wire

0.016mm

Key word

2UEW / 3UEW self adhesive enameled copper wire for speaker voice coils



Characteristics
Technical requests
Test Results
Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.016±0.001
0.016
0.016
Overall diameter
≤ 0.020mm
0.015
0.0195
Insulation thickness
Min0.001
0.002
0.002
Self-bonding layer thickness
Min0.001
0.0015
0.0015
Elongation
≥ 6 %
12
12
Breakdown Voltage
≥ 120V
248
260
Pinhole Test
≤ 5 hole/5m
0
0
Continuity(50v/30m)
≤ 60 hole/5m
0
0
Bonding Strength
≥5 g
10
10
Electrical Resistance
84.29-91.37Ω/m
86.3
86.3
Test Items
Technical Requests
Results
Adhesive
No crack
OK
Heat Shock
175℃/1h no crack
OK
Solder Ability
390℃±5C/2S Smooth
OK



Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

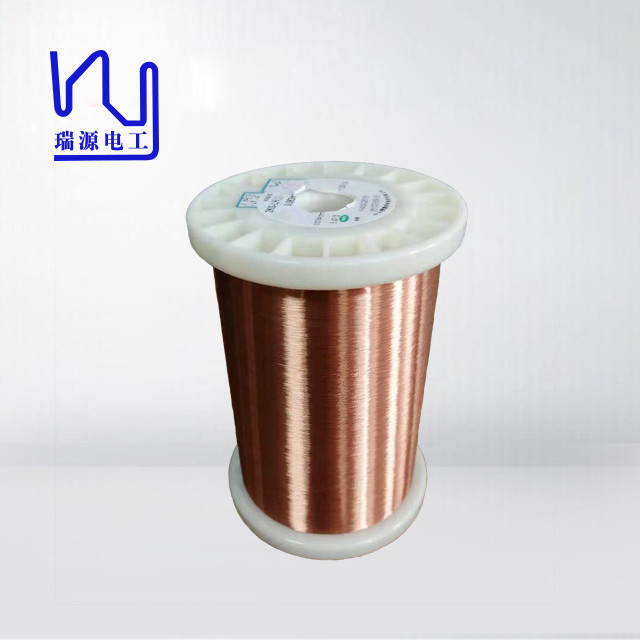

2uew / 3uew Self Adhesive Self Bonding Wire Enameled Copper For Speaker Voice Coils 0



2uew / 3uew Self Adhesive Self Bonding Wire Enameled Copper For Speaker Voice Coils 1

2uew / 3uew Self Adhesive Self Bonding Wire Enameled Copper For Speaker Voice Coils 2

2uew / 3uew Self Adhesive Self Bonding Wire Enameled Copper For Speaker Voice Coils 3
