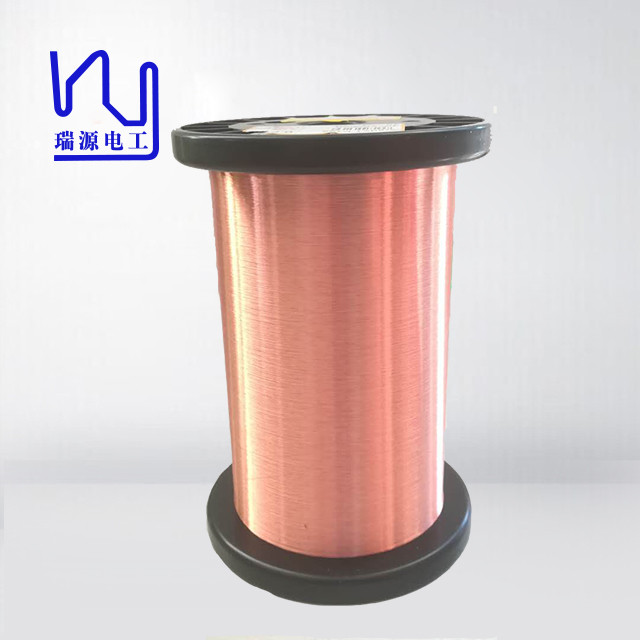

2uew155 0.016mm Self Bonding Wire Enameled Copper Winding Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: UEW
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: 2UEW155 0.016mm High Quality Self Bonding Enameled Copper Winding Wire Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.016mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Polyurethane
Rated Temperature: 155/180 Key Word: 2UEW155 0.016mm High Quality Self Bonding Enameled Copper Winding Wire
High Light:

0.016mm self bonding wire

,

enameled copper winding self bonding wire

,

self bonding 2uew wire


Product Description

2UEW155 0.016mm High Quality Self Bonding Enameled Copper Winding Wire



The use of self-adhesive enameled wire with composite coating to wind the coil has changed the traditional transformer manufacturing mode. The coil can be made into a whole by only hot melting, which has certain mechanical properties and moisture-proof insulation properties.



Therefore, the self-adhesive magnet wire can be wound into a skeletonless coil and without dipping, which can shorten the manufacturing cycle of magnetic components such as electro-acoustic equipment, and greatly improve the efficiency of mass production.



Name

2UEW155 0.016mm High Quality Self Bonding Enameled Copper Winding Wire

Key word

Enameled copper wire

Insulation

Polyurethane

Thermal rating

155degree

Diameter of the enameled copper wire

0.016mm

Key word

2UEW155 0.016mm High Quality Self Bonding Enameled Copper Winding Wire



Characteristics
Technical requests
Test Results
Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.016±0.001
0.016
0.016
Overall diameter
≤ 0.020mm
0.015
0.0195
Insulation thickness
Min0.001
0.002
0.002
Self-bonding layer thickness
Min0.001
0.0015
0.0015
Elongation
≥ 6 %
12
12
Breakdown Voltage
≥ 120V
248
260
Pinhole Test
≤ 5 hole/5m
0
0
Continuity(50v/30m)
≤ 60 hole/5m
0
0
Bonding Strength
≥5 g
10
10
Electrical Resistance
84.29-91.37Ω/m
86.3
86.3
Test Items
Technical Requests
Results
Adhesive
No crack
OK
Heat Shock
175℃/1h no crack
OK
Solder Ability
390℃±5C/2S Smooth
OK



Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

2uew155 0.016mm Self Bonding Wire Enameled Copper Winding Wire 0



2uew155 0.016mm Self Bonding Wire Enameled Copper Winding Wire 1

2uew155 0.016mm Self Bonding Wire Enameled Copper Winding Wire 2

2uew155 0.016mm Self Bonding Wire Enameled Copper Winding Wire 3
