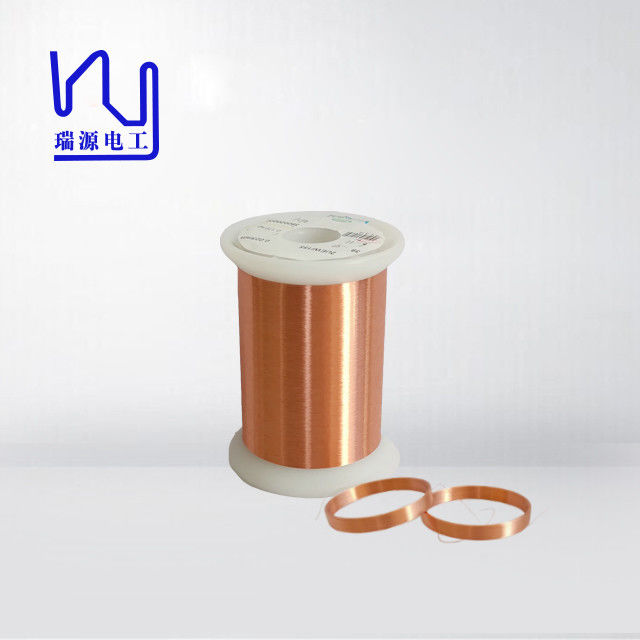

Awg 46 Class 155 / 180 Self Bonding Wire Copper Magnetic Wire For Speaker Coil

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: UEW
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: AWG 46 Class 155 / 180 Bonding Copper Magnetic Wire For Speaker Coil Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.04mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Polyurethane
Rated Temperature: 155/180 Key Word: AWG 46 Class 155 / 180 Bonding Copper Magnetic Wire For Speaker Coil
High Light:

awg 46 self bonding wire

,

speaker coil self bonding wire

,

self bonding 46 gauge magnet wire


Product Description

AWG 46 class 155 / 180 Bonding Copper Magnetic Wire for Speaker Coil



Due to the continuous miniaturization of electronic products, higher requirements have been placed on the diameter reduction of micro-electromagnetic wires, not only requiring light weight and small diameter, but also requiring increased power, and considering that the micro-wires are easily broken during the winding process In order to improve the safety tension and take into account other characteristics, the use of copper alloys doped with other components is considered in the processing and selection of materials to greatly improve the safety tension, and at the same time, the decrease in electrical conductivity is not too large. This copper-based alloy conductor It is a high tension enameled wire conductor, which not only has all the properties of copper, but also has high strength, good toughness and excellent audio characteristics.



Name

AWG 46 class 155 / 180 Bonding Copper Magnetic Wire for Speaker Coil

Key word

Enameled copper wire

Insulation

Polyurethane

Thermal rating

155degree

Diameter of the enameled copper wire

0.04mm

Key word

AWG 46 class 155 / 180 Bonding Copper Magnetic Wire for Speaker Coil





Characteristics
Technical requests

Test Results

Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.040±
0.001
0.040
0.040
0.001
Insulation Film Thickness
Min. 0.002 mm
0.003
0.003
Bonding Film Thickness
Min. 0.002mm
0.003
0.003
Overall Diameter
≤ 0.054 mm
0.0534
0.0534
Continuity of Covering
Max. 3 pcs
Max. 0
Max. 0
Elongation
≥ 14 %
21
22
Breakdown Voltage
Min. 350 V
Min. 1502 V
Min. 1502 V
Flexibility
/
/
/
Adherence
No crack
Good
Good
Cut through
Continur 2 times pass
230 ℃/Good
230 ℃/Good
Solder Test
Max. 2
Max. 1.5
Max. 1.5
Bonding Strength
Min. 5
13
13
Electrical Resistance(20℃)
13.83-14.43 Ω/m
14.23
14.24



Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Awg 46 Class 155 / 180 Self Bonding Wire Copper Magnetic Wire For Speaker Coil 0



Awg 46 Class 155 / 180 Self Bonding Wire Copper Magnetic Wire For Speaker Coil 1

Awg 46 Class 155 / 180 Self Bonding Wire Copper Magnetic Wire For Speaker Coil 2

Awg 46 Class 155 / 180 Self Bonding Wire Copper Magnetic Wire For Speaker Coil 3
