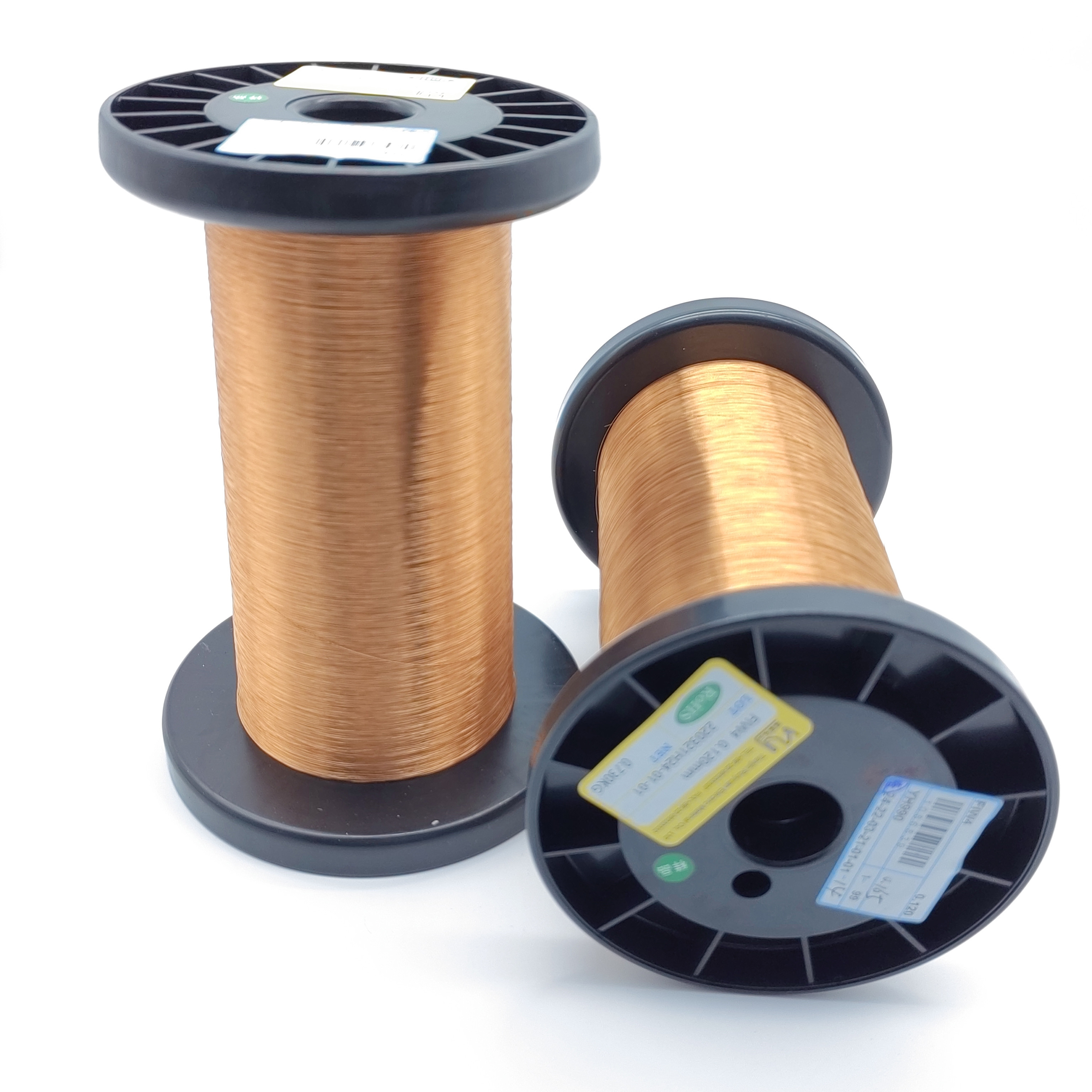

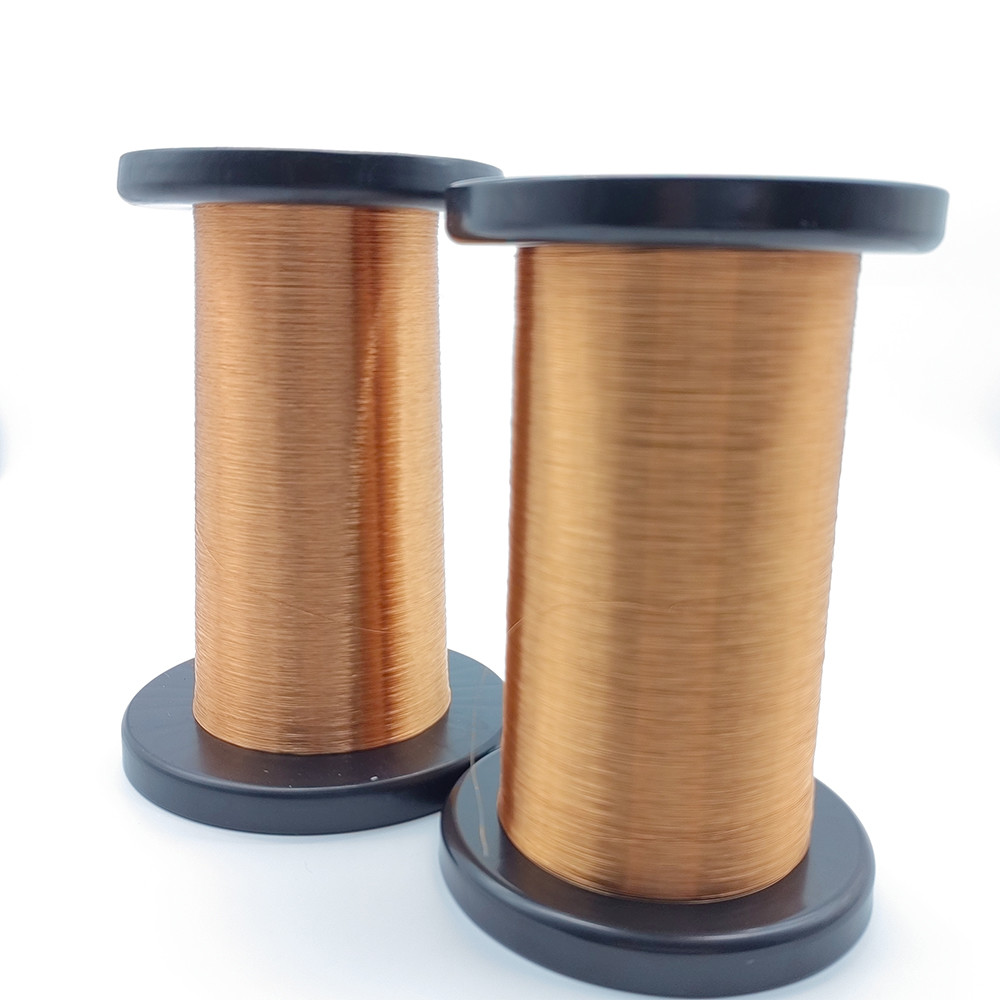

2uew 155 0.016mm Self Bonding Wire Enameled Copper

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.016mm
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Enameled Copper Wire Size: 0.016mm
Insulation: UEW Thermal Grade: 155
Conductor Material: Copper Conductor Type: Solid
High Light:

0.016mm self bonding wire

,

uew self bonding wire

,

0.016mm bondable magnet wire


Product Description

2UEW 155 0.016mm Enameled Copper Wire Self Bonding Wire



Our enamelled wire has been widedly used in different types of micor motors, and it's been proved great quality and high stability.



Characteristics

Technical requests

                     Test Results Conclusion

Sample 1 Sample 2 Sample 3
Surface Good Good Good Good OK
Bare Wire Diameter 0.016±0.001 0.016 0.016 0.016 OK
Overall diameter ≤ 0.020mm 0.015 0.0195 0.0198 OK
Insulation thickness Min0.001 0.002 0.002 0.002 OK
Self-bonding layer thickness Min0.001 0.0015 0.0015 0.0015 OK
Elongation ≥ 6 % 12 12 12 OK
Breakdown Voltage ≥ 120V 248 260 270 OK
Pinhole Test ≤ 5 hole/5m 0 0 0 OK
Enamel Continuity(50v/30m) ≤ 60 hole/5m 0 0 0 OK
Bonding Strength ≥5 g 10 10 10 OK
Electrical Resistance 84.29-91.37Ω/m 86.3 86.3 86.3 OK
Adhesive No crack       OK
Heat Shock 175℃/1h no crack OK
Solder Ability 390℃±5C/2S Smooth OK
