0.35mm Bondable Magnet Wire Alcohol / Solvent Polyurethane

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.35mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Name: Self Bonding Wire Diameter: 0.35mm
Insulation: Polyurethane Thermal Grade: 155/180
Breakdown Voltage: 5000v Solderabilty: Yes
High Light:

0.35mm bondable magnet wire

,

polyurethane bondable magnet wire

,

0.35mm self bonding wire


Product Description

0.35mm Alcohol / Solvent Self Bonding Enameled Copper Wire



Bondable magnet wire, also referred to as self-bonding magnet wire, is film insulated wire top-coated with a thermoplastic adhesive. When activated, the thermoplastic bonds turn to turn windings to produce self-supporting coils or coils of unusual or difficult configuration. Use of bondable magnet wire may offer advantages over conventional magnet wire in certain winding applications, eliminating the need for bobbins as well as taping or varnishing steps. Activation of the bondcoat may be achieved with either heat, or in some cases solvent, or a combination of the two. Although bondcoats may be added to any conventional film, consideration should be given to the resoftening temperature of the adhesive in that it may not withstand the operating temperature of higher rated primary insulations.



Characteristics
Technical requests

                Test Results

Sample 1
Sample 2
Sample 3
Bare Wire Diameter
0.120±0.002
0.120
0.120
0.120
(Basecoat ) Overall dimensions
Max.0.173
0.165
0.165
0.165
Insulation film thickness
Min.0.041
0.045
0.045
0.046

 Conductor Resistance

≤ 1585Ω/km
1540
1540
1541
Resistance to softening ℃  Continue 2 times pass 230℃/Good
Elongation
≥ 32 %
41
41
42
Breakdown Voltage
≥ 4704V
9247
Adhesive
Coating layer is good
OK
Solder Ability
390± 5℃ 2 Sec Smooth
OK

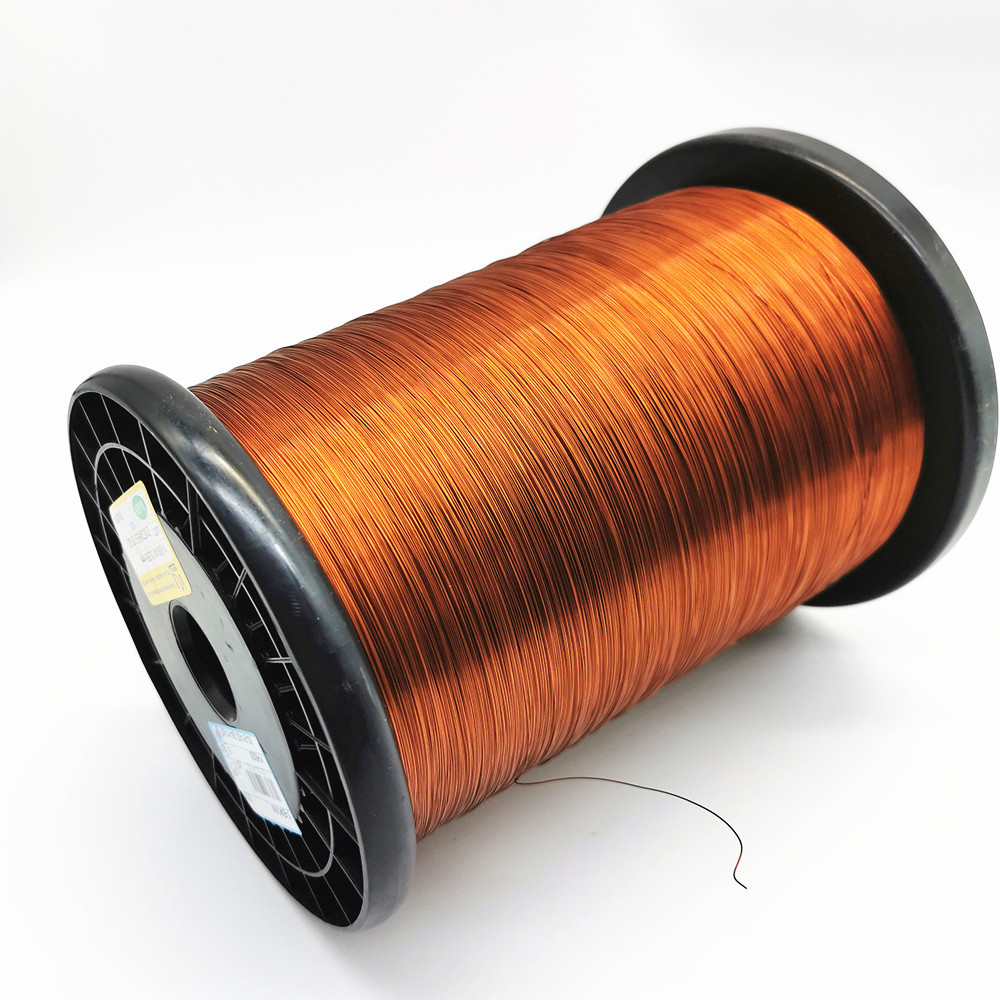

0.35mm Bondable Magnet Wire Alcohol / Solvent Polyurethane 0
