Round Enamelled Self Bonding Wire For Senior Watch Coil

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.35mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Name: Self Bonding Wire Diameter: 0.35mm
Insulation: Polyurethane Thermal Grade: 155/180
Breakdown Voltage: 5000v Solderabilty: Yes
High Light:

round self bonding wire

,

senior watch coil self bonding wire

,

enamelled self bonding copper wire


Product Description

Round Enamelled Self Bonding Wire For Senior Watch Coil



Features and benefits:
(a) Uniformity and degree of insulation
(b) Good electrical characteristics such as dielectric strength and insulation resistance
(c) Resistant coating to mechanical stress induced by bending, stretching, and friction
(d) Heat-resistance
(e) Resistant to solvents, chemicals and varnishes





Characteristics Technical requests Test Results
Sample 1 Sample 2 Sample 3
Bare Wire Diameter

0.120±0.002

0.120 0.120 0.120
(Base coat) overall dimension Max.0.173 0.165 0.165 0.165
Insulation film thickness Min.0.041 0.045 0.045 0.046
Conductor resistance ≤ 1585Ω/km 1540 1540 1541
Resistance to softening℃ Continue 2 times pass 230℃/Good
Elongation ≥ 32 % 41 41 42
Breakdown voltage ≥ 4704V 9247
Adhesive Coating layer is good OK
Solder ability 390± 5℃ 2 Sec Smooth OK

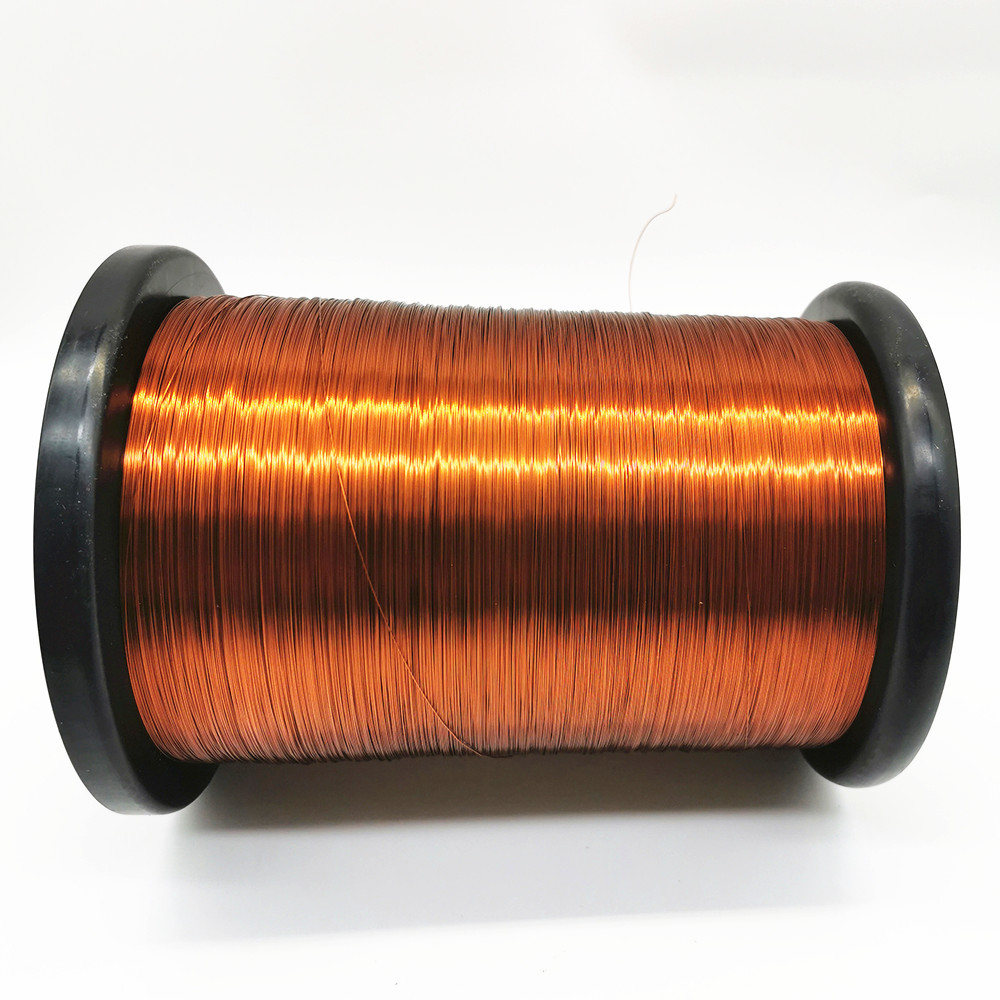

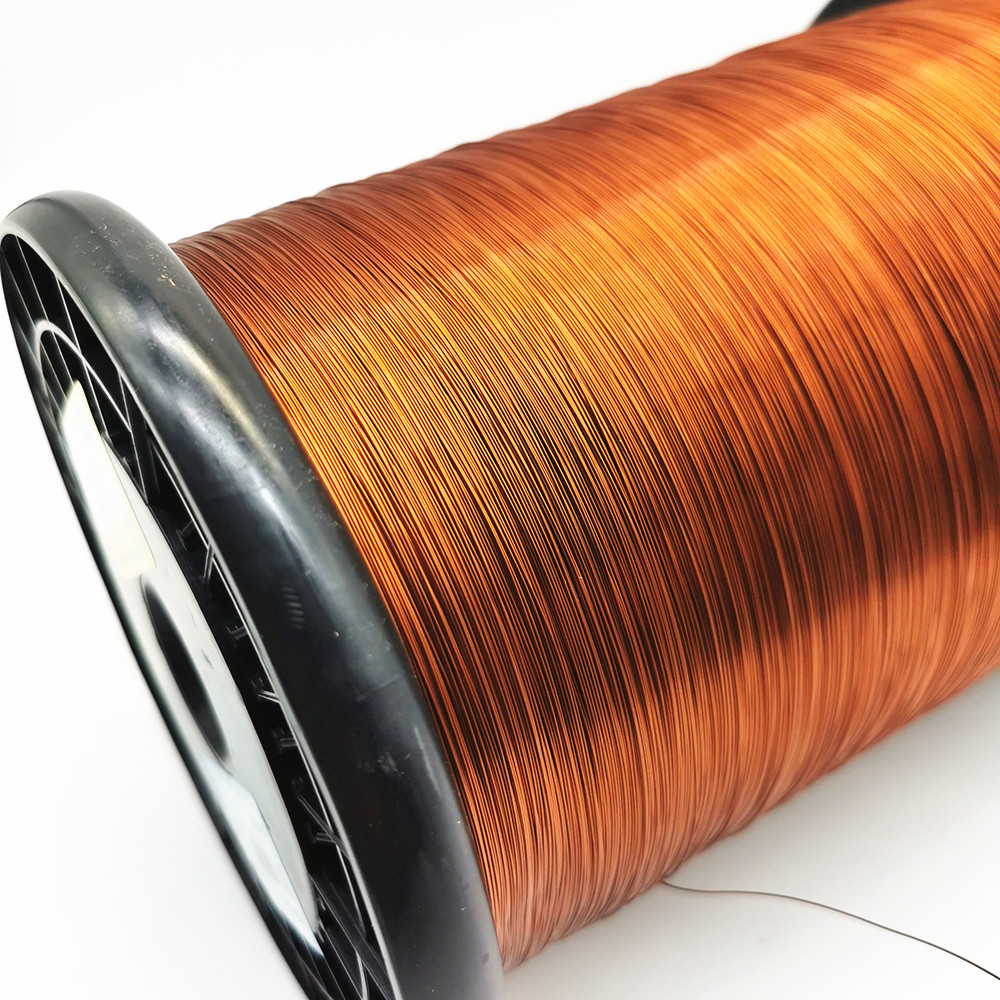

Round Enamelled Self Bonding Wire For Senior Watch Coil 0
