0.35mm Self Bonding Wire Alcohol Self Adhersive Enameled Copper

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.35mM
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Name: Self Bonding Wire Diameter: 0.35mm
Insulation: Polyurethane Thermal Grade: 155/180
Breakdown Voltage: 5000v Solderabilty: Yes
High Light:

0.35mm self bonding wire

,

polyurethane insulation self bonding wire

,

self bonding enamelled copper wire


Product Description



0.35mm Alcohol Self Adhersive Enameled Copper Wire Self Bonding Wire



self bonding wire is special type of enamelled wire is selfbonding wire or bondable wire. Selfbonding wire is an enamelled wire as described under Enamelled Wire Types, with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.



Characteristics

Technical requests

Test Results

Sample 1

Sample 2

Sample 3

Bare Wire Diameter

0.120±0.002

0.120

0.120

0.120

(Base coat) overall dimension

Max.0.173

0.165

0.165

0.165

Insulation film thickness

Min.0.041

0.045

0.045

0.046

Conductor resistance

≤ 1585Ω/km

1540

1540

1541

Resistance to softening

Continue 2 times pass

230℃/Good

Elongation

≥ 32 %

41

41

42

Breakdown voltage

≥ 4704V

9247

Adhesive

Coating layer is good

OK

Solder ability

390± 5℃ 2 Sec Smooth

OK

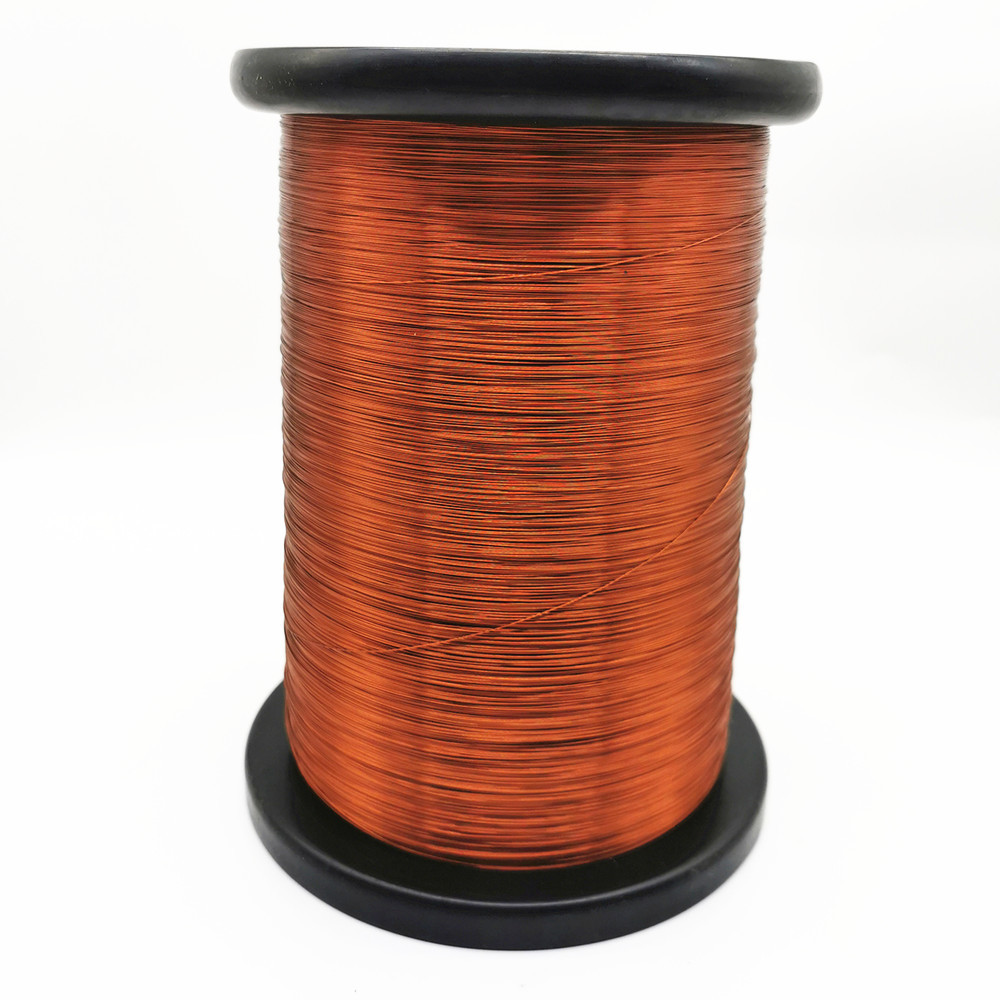

0.35mm Self Bonding Wire Alcohol Self Adhersive Enameled Copper 0
