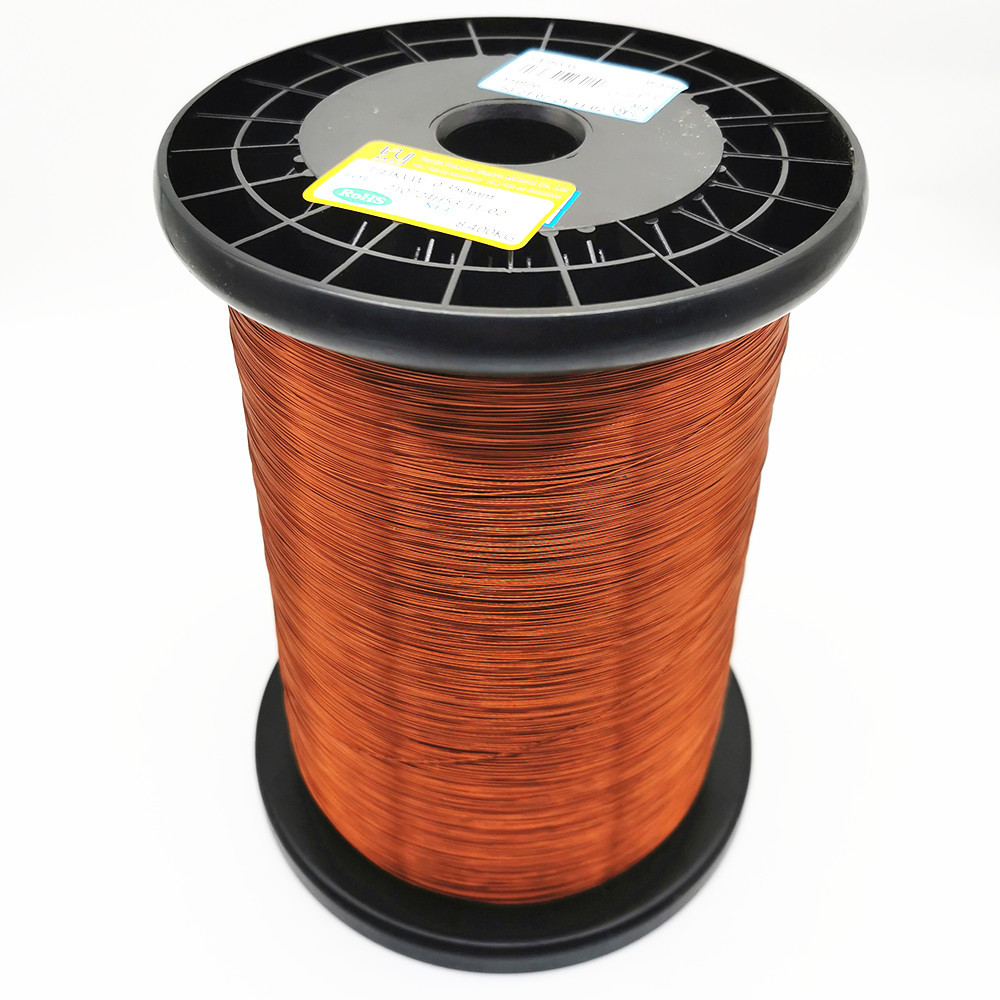

0.35mm Hot Wind Self Bonding Magnet Wire 5000v

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.35mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Name: Self Bonding Wire Diameter: 0.35mm
Insulation: Polyurethane Thermal Grade: 155/180
Breakdown Voltage: 5000v Solderabilty: Yes
High Light:

0.35mm self bonding magnet wire

,

hot wind self bonding magnet wire

,

0.35mm self bonding wire


Product Description

0.35mm Hot Wind Magnet Wire Self Bonding Wire



Application:



Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;



High-temperature voice coils,such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers andhigh-temperature-resistant voice coils;



micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.



Characteristics
Technical requests

                Test Results

Sample 1
Sample 2
Sample 3
Bare Wire Diameter
0.120±0.002
0.120
0.120
0.120
(Basecoat ) Overall dimensions
Max.0.173
0.165
0.165
0.165
Insulation film thickness
Min.0.041
0.045
0.045
0.046

 Conductor Resistance

≤ 1585Ω/km
1540
1540
1541
Resistance to softening   Continue 2 times pass 230℃/Good
Elongation
≥ 32 %
41
41
42
Breakdown Voltage
≥ 4704V
9247
Adhesive
Coating layer is good
OK
Solder Ability
390± 5℃ 2 Sec Smooth
OK



0.35mm Hot Wind Self Bonding Magnet Wire 5000v 0
