Awg 54 0.016mm Super Thin Self Bonding Enamel Copper Wire Soderable Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: 0.016
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Ultrafine Enameled Copper Wire Conductor Material: Copper
Insulation Material: UEW Conductor Type: Solid
Insulation: Polyurethane Solderability: Yes
Thermal Grade: 155
High Light:

covered copper wire


flat copper wire

Product Description



We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...


We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines.Because of our strong R & D strength, our products have a wide range of applicationsWe have a full range of self-adhesive lines and a wide range of applicationsThermal class is155C, 180 C, 200 C, 220 C.Conductor material includes enameled round wire, enameled copper-clad aluminum wire




Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.

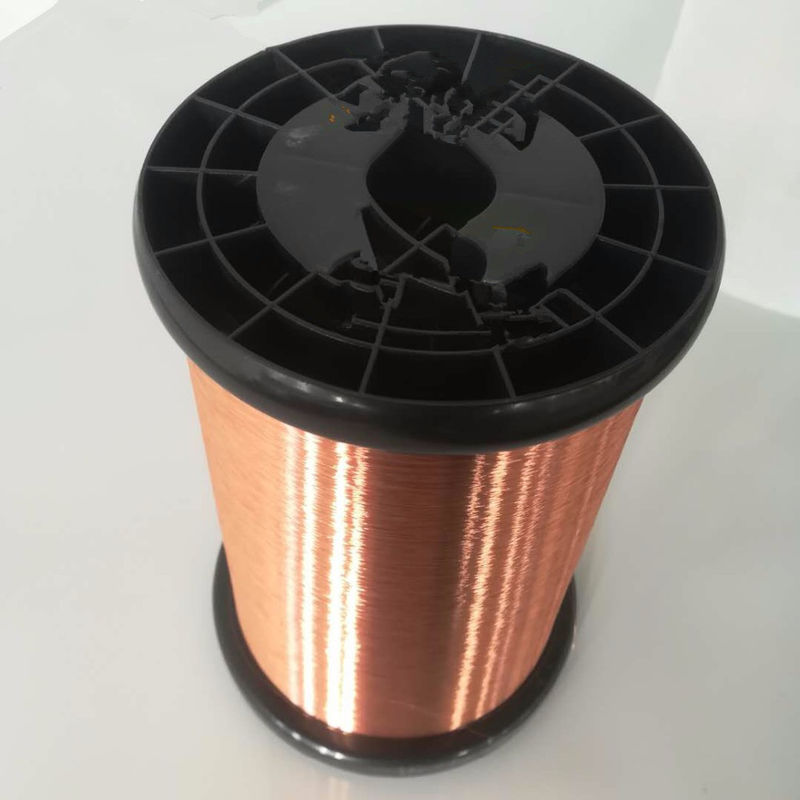

Awg 54 0.016mm Super Thin Self Bonding Enamel Copper Wire Soderable Magnet Wire 0



Awg 54 0.016mm Super Thin Self Bonding Enamel Copper Wire Soderable Magnet Wire 1


Technical requests
Test Results Conclusion
Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter
0.001 0.016
Overall diameter ≤ 0.020mm 0.015 0.0195 0.01958 OK
Insulation thickness Min0.001 0.002 0.002 0.002 OK
Self-bonding layer thickness Min0.001 0.0015 0.0015 0.0015 OK
Elongation ≥ 6 % 12 12 12 OK
Breakdown Voltage ≥ 120V 248 260 270 OK
Pinhole Test ≤ 5 hole/5m 0 0 0 OK
Enamel Continuity(50v/30m) ≤ 60 hole/5m 0 0 0 OK
Bonding Strength ≥5 g 10 10 9 OK
Electrical Resistance 84.29-91.37Ω/m 86.3 86.3 86.3 OK
  Test Items Technical Requests Results Conclusion:
1 Adhesive No crack OK
2 Heat Shock 175℃/1h no crack OK
3 Solder Ability 390℃±5C/2S Smooth OK
