ISO Standard Ultra Thin Enamelled Self Bonding Wire Copper Magnet Wire 1mm Polyester Insulation

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/SGS
Model Number: UEW
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Certification: IEC/NEMA/JIS/RoHS/ISO Delivery Time: 2-15 Days
Size Range: 1.0mm Stock: Available
Insulation: Polyester Material: COPPER
Thermal Class: 130/155/180
High Light:

covered copper wire

,

flat copper wire


Product Description

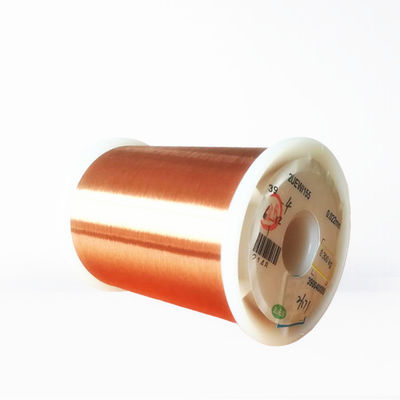

ISO STANDARD ULTRA THIN ENAMELED COPPER WINDING WIRE COPPER MAGNET WIRE 1MM POLYESTER INSULATION

A special type of enamelled wire is self bonding wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.

FEATURES

  • With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.

  • Superior ''Q'' characteristic at high frequencies.

  • Excellent film adhension and flexibility.

  • Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

ISO Standard Ultra Thin Enamelled Self Bonding Wire Copper Magnet Wire 1mm Polyester Insulation 0

SPECIFICATION

Nominal Diameter mm

Tolerance

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage



Elongation

Pin Hole

Electrical Resistance





mm





≥ V



≥%

≤Default/5m

Ω/km (20℃)











Mandrel Method

Twisted Method





Min.

Max.

0.012

----

0.013

0.015

50.000

----

5.00

10.00

142.64

157.65

0.013

----

0.015

0.017

70.000

----

5.00

10.00

118.41

133.98

0.014

----

0.016

0.018

70.000

----

5.00

10.00

102.64

120.45

0.015

----

0.017

0.020

80.000

----

5.00

10.00

89.83

104.41

0.016

----

0.018

0.021

90.000

----

5.00

8.00

74.67

97.56

0.017

----

0.019

0.022

90.000

----

5.00

8.00

66.60

85.75

0.018

----

0.020

0.023

100.000

----

5.00

8.00

59.77

75.95

0.019

----

0.021

0.024

100.000

----

5.00

8.00

53.95

67.75

0.020

0.001

0.022

0.024

100.000

----

8.00

8.00

51.83

60.81

0.050

±0.002

0.007

0.062

400.000

1200.00

12.00

5.00

7981.00

9528.00

0.055

±0.002

0.007

0.068

400.000

1200.00

12.00

5.00

6642.00

7815.00

0.060

±0.002

0.007

0.073

500.000

1200.00

14.00

5.00

5614.00

6526.00

0.065

±0.002

0.007

0.078

500.000

1200.00

14.00

5.00

4807.00

5531.00

0.070

±0.002

0.007

0.083

500.000

1200.00

15.00

5.00

4163.00

4747.00

0.075

±0.002

0.007

0.088

550.000

1200.00

15.00

5.00

3640.00

4119.00

0.080

±0.002

0.008

0.094

550.000

1200.00

16.00

5.00

3209.00

3608.00

0.085

±0.002

0.008

0.099

550.000

1200.00

16.00

5.00

2851.00

3187.00

0.090

±0.002

0.010

0.106

650.000

1200.00

16.00

5.00

2550.00

2835.00

0.095

±0.002

0.010

0.111

650.000

1200.00

17.00

5.00

2294.00

2538.00

0.100

±0.002

0.011

0.118

650.000

1200.00

17.00

5.00

2074.00

2286.00

0.110

±0.002

0.011

0.129

----

1300.00

17.00

5.00

1720.00

1882.00

0.120

±0.002

0.011

0.139

----

1500.00

17.00

5.00

1450.00

1577.00

0.130

±0.002

0.011

0.149

----

1500.00

18.00

5.00

1239.00

1340.00

0.140

±0.002

0.011

0.159

----

1600.00

19.00

5.00

1070.00

1153.00

0.150

±0.002

0.011

0.169

----

1700.00

20.00

5.00

934.10

1002.00

0.160

±0.002

0.012

0.180

----

1700.00

21.00

5.00

822.30

879.40

0.170

±0.003

0.013

0.192

----

2000.00

22.00

5.00

721.10

787.10

0.180

±0.003

0.014

0.204

----

2000.00

22.00

5.00

644.40

700.70

0.190

±0.003

0.014

0.214

----

2000.00

23.00

5.00

579.40

627.80

0.200

±0.003

0.014

0.224

----

2000.00

23.00

5.00

523.70

565.70

0.210

±0.003

0.014

0.234

----

2000.00

23.00

5.00

475.70

512.30

0.220

±0.003

0.014

0.245

----

2200.00

23.00

5.00

434.00

466.20

0.230

±0.003

0.016

0.257

----

2200.00

24.00

5.00

397.50

426.00

0.240

±0.003

0.016

0.267

----

2200.00

24.00

5.00

365.50

390.80

0.250

±0.003

0.016

0.277

----

2300.00

24.00

5.00

337.10

359.80

0.260

±0.004

0.018

0.287

----

2300.00

25.00

5.00

309.60

335.00

0.270

±0.004

0.018

0.297

----

2300.00

25.00

5.00

287.40

310.30

0.280

±0.004

0.022

0.313

----

2300.00

25.00

5.00

267.60

288.20

0.290

±0.004

0.022

0.323

----

2500.00

25.00

5.00

249.70

268.40

0.300

±0.004

0.022

0.334

----

2500.00

25.00

5.00

233.50

250.60

0.310

±0.004

0.022

0.344

----

2500.00

25.00

5.00

218.90

234.40

0.315

±0.004

0.022

0.349

----

2500.00

25.00

5.00

212.10

227.00

0.320

±0.004

0.023

0.355

----

2700.00

25.00

5.00

205.60

219.80

0.330

±0.004

0.023

0.365

----

2700.00

25.00

5.00

193.50

206.60

0.350

±0.004

0.023

0.385

----

2700.00

26.00

5.00

172.20

183.40

0.355

±0.004

0.023

0.390

----

2700.00

26.00

5.00

167.40

178.20

0.370

±0.004

0.024

0.406

----

2900.00

26.00

5.00

154.30

163.90

0.380

±0.004

0.024

0.416

----

2900.00

26.00

5.00

146.40

155.30

0.400

±0.004

0.025

0.437

----

2900.00

27.00

5.00

132.20

140.00

0.410

±0.004

0.025

0.447

----

2900.00

27.00

5.00

125.90

133.20

0.440

±0.004

0.025

0.477

----

2900.00

27.00

5.00

109.50

115.50

0.450

±0.004

0.025

0.487

----

2900.00

27.00

5.00

104.70

110.40

0.470

±0.004

0.026

0.508

----

3100.00

27.00

5.00

96.05

101.10

0.500

±0.004

0.026

0.539

----

3100.00

27.00

5.00

84.96

89.23

0.550

±0.004

0.027

0.590

----

3300.00

28.00

5.00

70.31

73.64

0.600

±0.005

0.027

0.640

----

3500.00

28.00

5.00

58.96

62.01

0.650

±0.005

0.027

0.690

----

3500.00

28.00

5.00

50.30

52.77

0.700

±0.005

0.029

0.742

----

3500.00

28.00

5.00

43.42

45.45

0.750

±0.005

0.030

0.794

----

3800.00

28.00

5.00

37.86

39.55

0.800

±0.005

0.032

0.846

----

3800.00

28.00

5.00

33.30

34.73
