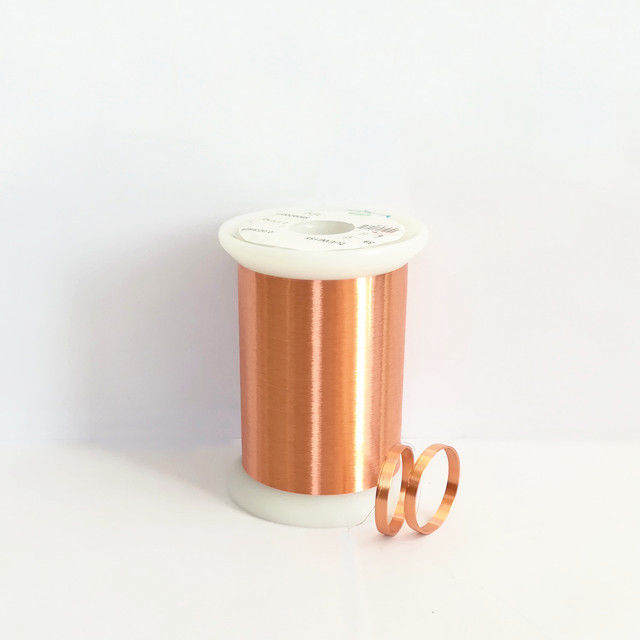

Ultra Fine Self Bonding Wire Enameled Magnet Wire 220 Class Polyamide Imide Winding Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Contact Now
Detail Information
Insulation: Round Copper Temperature: 220
Conductor Material: Copper Insulation Material: Enameled
Certificates: ISO/UL/RoHS
High Light:

round copper wire

,

soldering copper wire


Product Description

ULTRA FINE SELF BONDING WIRE ENAMELED MAGNET WIRE 220 CLASS POLYAMIDE IMIDE WINDING WIRE

Enameled Copper Wire is a wire coated with a thin layer of enamel (varnish) insulation to prevent the wire surfaces from being in a short circuit when wound into coils. Magnetic flux is created when current flows through the coil. Copper Enamelled Winding Wire are used mainly in the construction of motors, electromagnets, transformers and inductors. For ease of manufacturing inductive components like transformers and inductors, most of these wires can be soldered.

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

Executive standards: IEC, JIS and NEMA.

FEATURES

  • Good performace at softening breakdown

  • Suitable for high-speed automated routing

  • Able to be direct weld, with no pinhole

  •  Resistive to high frequency, wearing, refrigerants and electronics corona

  •  High breakdown voltage, small dielectric loss angle

APPLICATION

  • Dry type transformers ( For power distribution, Vehicles & etc. )

  • Transformer for measuring instrument

  • For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures

  • Coil-motor ( Class H )

Ultra Fine Self Bonding Wire Enameled Magnet Wire 220 Class Polyamide Imide Winding Wire

Material

Coating

Thermal Class

Executive Standards

Diameters Available

PEW/130

Polyester

130℃(B Class)

IEC60317-45

GB6109.7-90

0.05mm4.50mm

PEW/155

Modified Polyester

155℃(F Class)

MW5-C

GB6109.2-90

JISC3202-1994

0.05mm-4.50mm

EIW/180

Polyester-imide

180℃(H Class)

MW30-C

MW76A

JISC3202-1994

GB6109.5-88

0.05mm-4.50mm

UEW/130



Polyurathane

130℃(B Class)

IEC60317-4

MW 75-C

JIS C 3202.6







0.012-1.2mm

UEW/155

155℃(F Class)

IEC60317-20

MW 79-C

JIS C 3202.7

UEW/180

180℃(H Class)

IEC60317-51

MW 82-C

JIS C 3202.6

EI/AIW/200

Polyesterimide

200℃(C Class)

IEC60317-13

MW 35-C

MW 73-C

0.25mm-2.60mm

EI/AIW/220

220℃

0.20mm-2.40mm

AIW/220

Polyimide

220℃

MW16-C

IEC60317-7

IEC60317-42

0.20mm-2.40mm

AIW/240

240℃

0.20mm-2.40mm
