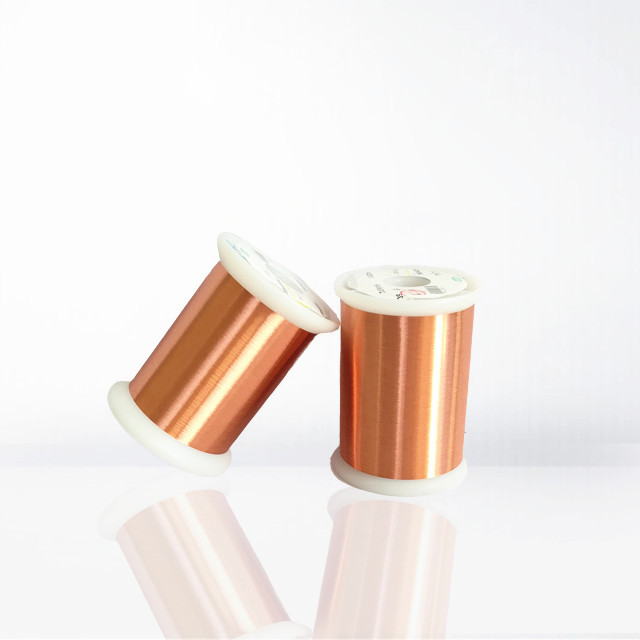

AWG 37 Fine Self Bonding Enamelled Coated Copper Wire 0.114mm ISO9001 Certified

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001/UL /SGS
Model Number: 0.114mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 days
Payment Terms: T/T, L/C
Supply Ability: Satisfy your demand
Contact Now
Detail Information
Thermal Class: 155 Certification: ISO9001/ISO14001 /UL/SGS
Color: Red/Green/Normal Diameter: 0.114mm
Standard: GB IEC JIS NEMA Bonding Method: Hot Wind/Solvent
Conductor: Copper

Product Description

AWG 37 0.114mm hot wind self bonding wire is our expertise, great electric performance, low MOQ that is very popular in American and European market! Low MOQ to help saving money for you.Solvent bonding wire is also available.

We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines.Because of our strong R & D strength, our products have a wide range of applicationsWe have a full range of self-adhesive lines and a wide range of applicationsThermal class is155C, 180 C, 200 C, 220 C.Conductor material includes enameled round wire, enameled copper-clad aluminum wire

APPLICATION

Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.

AWG 37 Fine Self Bonding Enamelled Coated Copper Wire 0.114mm ISO9001 Certified




<

SPECIFICATION



Characteristics

Technical requests

Test Results

Conclusion

Sample 1

Sample 2

Sample 3

1

Surface

Good

OK

OK

OK

OK

2

Bare Wire Diameter

0.114±

0.002

0.114

0.114

0.114

OK

0.002

3

Overall diameter

0.129-0.137 mm

0.132

0.133

0.133

OK

4

Insulation thickness

Min0.015

0.018

0.019

0.019

OK

5

Self-bonding layer thickness

Min0.003

0.004

0.004

0.004

OK

6

Elongation

≥ 16 %

23

23

23

OK

7

Breakdown Voltage

≥ 1500 V

4579

4581

1506

OK

8

Pinhole Test

≤ 4 hole/5m

0

0

0

OK

9

Enamel Continuity

≤ 5 hole/5m

0

0

0

OK

10

Bonding Strength

≥0.25 g

0.31

0.3

0.28

OK

11

Electrical Resistance

1.554-1.824Ω/m

1.74

1.584

1.755

OK

Remark:



Test Items

Technical Requests

Results

Conclusion:

1

Adhesive

No crack

OK

Approved

2

Heat Shock

200℃/1h no crack

OK





3

Solder Ability

405℃±5C/2S Smooth

OK



<

Size

Conductor

Insulation Thickness

Bonding Layer thickness

Overall Dia

DCR(at 20℃)

Breakdown voltage (V)

Elongation %

Bonding Strength(g)

Dia mm

Tolerance
(mm)

(mm)

(mm)

(mm)

[Ω/m]







0.075

±0.002

Min0.004

Min0.004

Max0.086

3.77~3.97

Min700

Min14.0

Min 8

0.070

±0.002

Min0.003

Min0.003

Max0.086

4.30~4.50

Min700

Min12.0

Min 5

0.068

±0.002

Min0.003

Min0.003

Max0.083

4.60~4.80

Min700

Min12.0

Min 5

0.065

±0.002

Min0.003

Min0.003

Max0.078

4.85~5.20

Min700

Min12.0

Min 5

0.060

±0.002

Min0.002

Min0.003

Max0.071

5.71~6.53

Min700

Min12.0

Min 5

0.058

±0.002

Min0.002

Min0.002

Max0.071

6.50~6.70

Min700

Min12.0

Min 5

0.057

±0.002

Min0.002

Min0.002

Max0.070

6.40~7.00

Min700

Min12.0

Min 5

0.055

±0.002

Min0.002

Min0.003

Max0.066

6.75~7.83

Min700

Min10.0

Min 5

0.053

±0.002

Min0.002

Min0.003

Max0.064

8.25~8.44

Min700

Min10.0

Min 5

0.052

±0.002

Min0.003

Min0.003

Max0.064

8.00~8.50

Min700

Min10.0

Min 5

0.050

±0.002

Min0.002

Min0.003

Max0.061

8.11~9.53

Min700

Min10.0

Min 5

0.049

±0.001

Min0.002

Min0.003

Max0.0580

8.90~9.40

Min700

Min10.0

Min 5

0.048

±0.001

Min0.002

Min0.003

Max0.059

9.14~9.94

Min700

Min10.0

Min 5

0.047

±0.001

Min0.001

Min0.002

Max0.057

9.52~10.4

Min700

Min10.0

Min 3

0.046

±0.001

Min0.003

Min0.003

Max0.0550

9.90~10.3

Min360

Min10.0

Min 3

0.045

±0.001

Min0.001

Min0.002

Max0.055

10.3~11.4

Min700

Min10.0

Min 3

0.044

±0.001

Min0.003

Min0.003

Max0.0540

11.4~12.5

Min275

Min7.0

Min 3

0.043

±0.001

Min0.003

Min0.003

Max0.0520

11.4~12.5

Min275

Min7.0

Min 3

0.042

±0.001

Min0.003

Min0.003

Max0.0530

12.2~13.0

Min275

Min7.0

Min 3

0.041

±0.001

Min0.003

Min0.003

Max0.0500

12.9~13.6

Min275

Min7.0

Min 3

0.040

±0.001

Min0.002

Min0.002

Max0.050

13.0~14.5

Min100

Min7.0

Min 3

0.039

±0.001

Min0.002

Min0.002

Max0.049

14.6~15.2

Min100

Min7.0

Min 3

0.038

±0.001

Min0.002

Min0.002

Max0.0490

15.5~16.0

Min275

Min7.0

Min 3

0.037

±0.001

Min0.002

Min0.002

Max0.0480

16.2~16.8

Min275

Min6.0

Min 3

0.035

±0.001

Min0.002

Min0.002

Max0.0460

17.5~18.6

Min250

Min6.0

Min 3

0.034

±0.001

Min0.002

Min0.002

Max0.0430

18.1~18.9

Min250

Min6.0

Min 3

0.032

±0.001

Min0.002

Min0.002

Max0.0400

21.5~22.5

Min210

Min6.0

Min 2

0.030

±0.001

Min0.002

Min0.002

Max0.0390

23.7~24.9

Min210

Min6.0

Min 2

0.028

±0.001

Min0.002

Min0.002

Max0.0360

26.9~28.4

Min190

Min6.0

Min 2

0.026

















0.025

±0.001

Min0.002

Min0.002

Max0.0320

34.0~37.0

Min165

Min6.0

Min 2

0.020

±0.001

Min0.001

Min0.002

Max0.0260

54.0~57.0

Min135

Min6.0

Min 1

0.016

















0.015

According to DCR

Min0.001

Min0.0005

0.020mm

85.06-111.10

Min120

Min5.0

Min 1

0.012

According to DCR

Min0.001

Min0.0005

0.014mm

128.85-179.96

Min100

Min3.0

Min 1
