UEW Solderable Enameled Copper Wire / Round Self Bonding Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: UEW
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Conductor: Copper Insulation Material: Enameled
Size Range: 0.012-0.8mm Thermal Class: 155/180
Brand: Ruiyuan Certification: IEC/NEMA/JIS/RoHS/ISO
AWG: 20-56 Shape: Round
High Light:

covered copper wire

,

flat copper wire


Product Description

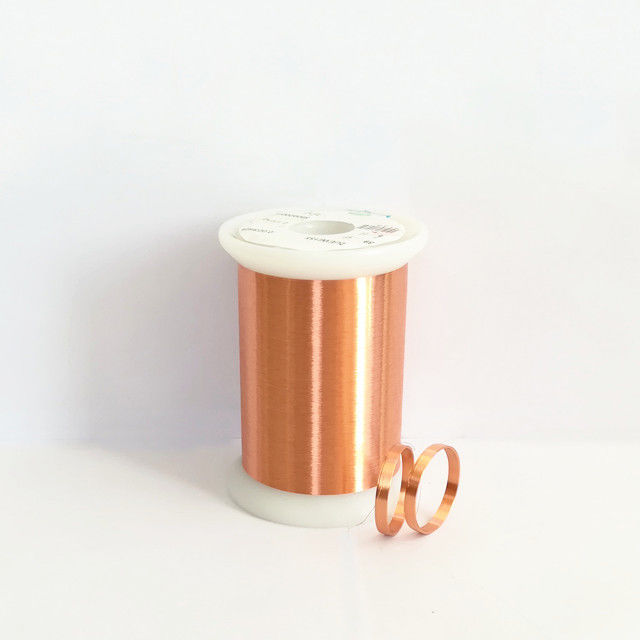

UEW Solderable Enameled Copper Wire / Round Self Bonding Wire

Enameled copper wire, also called "magnet wire," is widely used all over the world in electrical equipment.. The difference between the enameled copper wire and regular wire is in the insulation surrounding the wire. Normal copper wire is insulated by wrapping it in thick rubber. Enameled copper wire is insulated by coating it with enamel. It is primarily used in three types of applications. It is used, in transformers to transform one kind of electrical energy into other kinds. It is used in motors to transform electrical energy into mechanical energy. It is also used in generators to transform mechanical energy into electrical energy.

FEATURES AND BENEFITS

  • Higher thermal property

  • Good resistance to refrigerant and freon

  • Suitable for windings that are subjected to constantly high temperature and mechanical stress

  • Good chemical resistanceFE

APPLICATION

  • Micro - motor and Transformers,

  • Flyback transformers,

  • Electronic compoments,

  • Step motors

UEW Solderable Enameled Copper Wire / Round Self Bonding Wire 0

SPECIFICATION

Dimensions



Minimum

Failing load in resistance-to-

Maximun

Minimum

dielectric

abrasion test N (gf)

conductor

elongation

Conductor

Minimum

Maximum

breakdown



resistance per

%

film

overall

voltage



unit length



thickness

thickness

V.

Average value

Lowest value

W / km (20oC)



Diameter

Tolerance

mm.

mm.



(min.)

(min.)





mm.

mm.















0.02

+ 0.002

0.002

0.028

40

1.6 {163}-

1.3 {133}

69850

3

0.025

0.034

60

42780

5

0.03

0.04

70

28870

0.04

0.052

100

15670

7

0.05

+ 0.003

0.003

0.064

700

10240

10

0.06

0.075

6966

0.07

0.085

4990

0.08

0.097

3778

0.09

0.107

2959

0.1

0.118

2381

15

0.11

0.128

1957

0.12

0.139

1636

0.004

850

0.13

0.149

1389

0.14

0.159

1193

0.15

0.169

1037

0.16

0.181

908.8

0.005

0.17

0.191

803.2

0.18

0.202

715

1000

0.19

0.212

640.6

0.2

0.222

577.2

0.21

0.232

522.8







0.22

+ 0.004

0.243

480.1

0.23

0.255

438.6

0.006

0.24

0.265

402.2

0.25

0.275

370.2

0.26

0.285

341.8

0.27

0.295

316.6

0.28

0.305

294.1

0.29

0.315

273.9

20

0.3

+ 0.005

0.007

0.327

1400

1.9 {194}

1.6 {163}

254

0.32

0.347

222.8

0.35

0.377

185.7

0.37

0.397

165.9

0.4

0.429

141.7

2.0 {204}

0.45

+ 0.006

0.479

1.7 {173}

112.1

0.5

0.008

0.531

89.95

1450

2.3

{235}

2.0 {204}

0.55

0.581

2.4 (245}

74.18

0.6

+ 0.008

0.632

62.64
