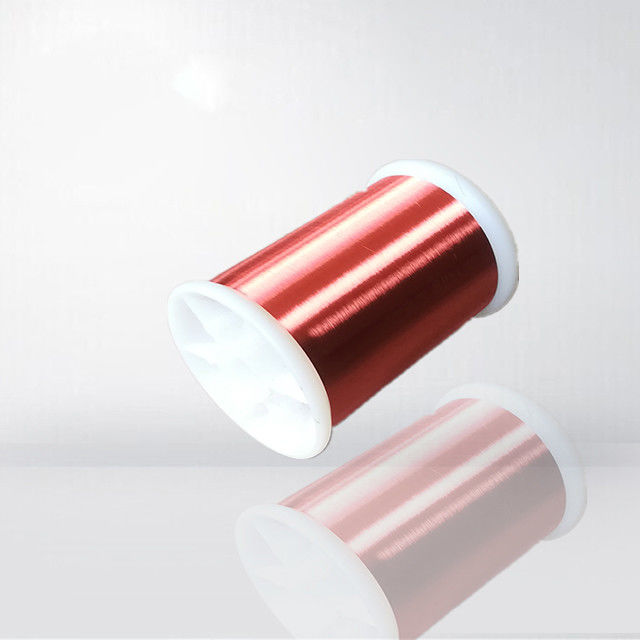

0.025mm Ultra Fine Self Bonding Wire Silver Plated Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: 0.025mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Contact Now
Detail Information
Conductor DIA: 0.025mm Standard: IEC/JIC/NEMA
Material: Round Copper Delivery: Fast Delivery Gurantee
Conductor: Aluminum And Copper Thermal Class: 155
Min Bonding Strength: 2g Insulation: UEW/polyurethane
Color: Silver/natural/red

Product Description

0.025MM ULTRA FINE SELF BONDING WIRE SILVER PLATED COPPER WIRE

A special type of enamelled wire is self bonding wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.

0.025mm Ultra Fine Self Bonding Wire Silver Plated Copper Wire

CERTIFICATES: ISO 9001-2000, ISO TS 16949, ISO 14001-2004, UL Approved, RoHS Directive Met

EXECUTIVE STANDARDS: IEC, JIS and NEMA.

APPLICATIONS:

High frequency coils, transformers, touch sreen, relays, small motors, Sensors etc

SPECIFICATION

Self-bonding Enameled Wire
Description Designation Thermal Grade(℃) Diameter(mm) Feature Application
Solvent Bonding
Polyurethane
Enameled Wire
(Conductor: copper,
copper-clad aluminum)
Y1
Y2
Y3
130~180 0.01~0.5 Directly solderable
Excellent bonding strength
Suitable for different bonding
strength requiements applications
Easily dyable,various coloring
options:Natural,Red,Green,Blue, Black
Speaker coil(i.e.: microphone,
earphone,speaker,hearing
aid),micro vibration motor
(i.e.: focus-driving,coin-type,
coreless-type)and other
electrical and electronics
components(i.e.: inductor,
watch coil,coin machine coil,
buzzer),magnetic head,IC
card.
Heat Bonding
Polyurethane
Enameled Wire
(Conductor: copper,
copper-clad aluminum)
H
H1
H2
130~180 0.01~0.5
