Detail Information

Standard:	IEC/JIC/NEMA	Brand:	Ruiyuan
Size Range:	0.015-0.15mmmm	Material:	Round Copper
Delivery:	Fast Delivery Gurantee	Bonding Methoud:	Hot Wind/Solvent
Conductor:	Copper	Thermal Class:	155/180
Soldering Temperature:	320℃
High Light:	self solderable copper wire , flat copper wire

Product Description

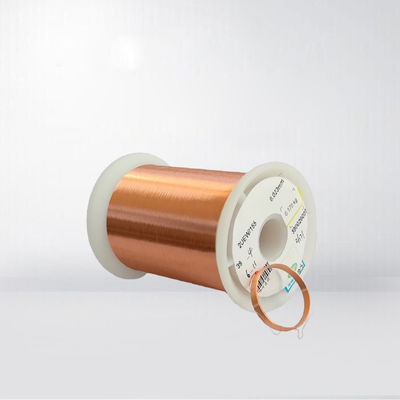

HIGH TENSION SELF BONDING ENAMELED COATED WIRE COPPER MAGNET WIRE WITH SOLDERABILITY

High and super high tension enameled wire is a kind of alloy wire, most of them is copper silver alloy, that is designed with strong mechnical property,suitable for applications demanding high bending strength and stability, which is widely used in Audio coil, vibration motro, receiver, magnetic head coil, wathc coil,moving coil etc

FEATURES AND BENEFITS

HIgh tensile strength. 25% higher than copper wire
Good bending strength
high conductivity. >93%IACS
Excellent solderability,
Excellent audio property.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met

Specification:

Size	Conductor	Insulation Thickness	Bonding Layer thickness	O.D	DCR (at 20℃)	Breakdown voltage (V)	Elongation	Bonding Strength(g)
0.012	0.012	According to DCR	Min0.001	Min0.0005	0.014mm	128.85-179.96	Min100	Min3.0
0.015	0.012	According to DCR	Min0.001	Min0.0005	0.020mm	85.06-111.10	Min120	Min5.0
0.02	0.02	±0.001	Min0.001	Min0.002	Max0.0260	54.0~57.0	Min135	Min6.0
0.025	0.025	±0.001	Min0.002	Min0.002	Max0.0320	34.0~37.0	Min165	Min6.0
0.028	0.028	±0.001	Min0.002	Min0.002	Max0.0360	26.9~28.4	Min190	Min6.0
0.03	0.03	±0.001	Min0.002	Min0.002	Max0.0390	23.7~24.9	Min210	Min6.0
0.032	0.032	±0.001	Min0.002	Min0.002	Max0.0400	21.5~22.5	Min210	Min6.0
0.034	0.034	±0.001	Min0.002	Min0.002	Max0.0430	18.1~18.9	Min250	Min6.0
0.035[D]	0.035	±0.001	Min0.002	Min0.002	Max0.0460	17.5~18.6	Min250	Min6.0
0.037[D]	0.037	±0.001	Min0.002	Min0.002	Max0.0480	16.2~16.8	Min275	Min6.0
0.038[D]	0.038	±0.001	Min0.002	Min0.002	Max0.0490	15.5~16.0	Min275	Min7.0
0.039	0.039	±0.001	Min0.002	Min0.002	Max0.049	14.6~15.2	Min100	Min7.0
0.040[D]	0.04	±0.001	Min0.002	Min0.002	Max0.050	13.0~14.5	Min100	Min7.0
0.041	0.041	±0.001	Min0.003	Min0.003	Max0.0500	12.9~13.6	Min275	Min7.0
0.042[D]	0.042	±0.001	Min0.003	Min0.003	Max0.0530	12.2~13.0	Min275	Min7.0
0.043[D]	0.043	±0.001	Min0.003	Min0.003	Max0.0520	11.4~12.5	Min275	Min7.0
0.044[D]	0.044	±0.001	Min0.003	Min0.003	Max0.0540	11.4~12.5	Min275	Min7.0

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	UL/SGS
Model Number:	0.015-0.15mm

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand
