Detail Information

Standard:	IEC/JIC/NEMA	Material:	Round Copper
Bonding Methoud:	Hot Wind/Solvent	Conductor:	Copper
Thermal Class:	155/180	Size Range:	0.012-0.5mm
Soldering Temperature:	320℃
High Light:	self solderable copper wire , flat copper wire

Product Description

IEC STANDARD SELF BONDING WIRE ULTRA FINE ENAMELED MAGNET COPPER WIRE FOR WATCH COILS

Apple Watch/Samsung Watch and Huawei Watch has been popular in the whole world. Watch coils is an absolutely part to support the watch run very well. Self-bonding wire is a special wire that overcoated with a bonding layer on the base insulation, with this bonding layer, wires can be adhered to each other by heating or solvent. The coil wound by such wire can be fixed and formed by heating or solvent method

FEATURES AND BENEFITS

Good resistance to refrigerant and freon
Suitable for windings that are subjected to constantly high temperature and mechanical stress
Good chemical resistance
Outstanding mechanical and chemical property
Low soldering temperature

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met

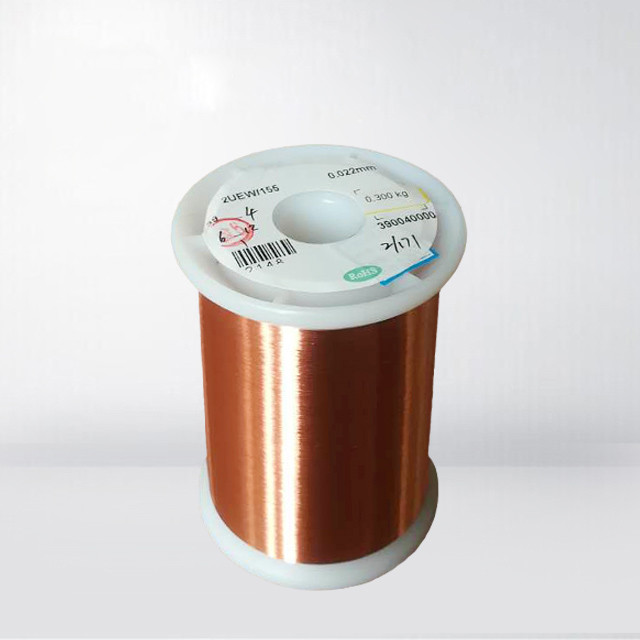

IEC Standard Self Bonding Wire Ultra Fine Enameled Magnet Copper Wire For Watch Coils 0

SPECIFICATION

Size	Conductor	Insulation Thickness	Bonding Layer thickness	O.D	DCR (at 20℃)	Breakdown voltage (V)	Elongation	Bonding Strength(g)
0.012	0.012	According to DCR	Min0.001	Min0.0005	0.014mm	128.85-179.96	Min100	Min3.0
0.015	0.012	According to DCR	Min0.001	Min0.0005	0.020mm	85.06-111.10	Min120	Min5.0
0.02	0.02	±0.001	Min0.001	Min0.002	Max0.0260	54.0~57.0	Min135	Min6.0
0.025	0.025	±0.001	Min0.002	Min0.002	Max0.0320	34.0~37.0	Min165	Min6.0
0.028	0.028	±0.001	Min0.002	Min0.002	Max0.0360	26.9~28.4	Min190	Min6.0
0.03	0.03	±0.001	Min0.002	Min0.002	Max0.0390	23.7~24.9	Min210	Min6.0
0.032	0.032	±0.001	Min0.002	Min0.002	Max0.0400	21.5~22.5	Min210	Min6.0
0.034	0.034	±0.001	Min0.002	Min0.002	Max0.0430	18.1~18.9	Min250	Min6.0
0.035[D]	0.035	±0.001	Min0.002	Min0.002	Max0.0460	17.5~18.6	Min250	Min6.0
0.037[D]	0.037	±0.001	Min0.002	Min0.002	Max0.0480	16.2~16.8	Min275	Min6.0
0.038[D]	0.038	±0.001	Min0.002	Min0.002	Max0.0490	15.5~16.0	Min275	Min7.0
0.039	0.039	±0.001	Min0.002	Min0.002	Max0.049	14.6~15.2	Min100	Min7.0
0.040[D]	0.04	±0.001	Min0.002	Min0.002	Max0.050	13.0~14.5	Min100	Min7.0
0.041	0.041	±0.001	Min0.003	Min0.003	Max0.0500	12.9~13.6	Min275	Min7.0
0.042[D]	0.042	±0.001	Min0.003	Min0.003	Max0.0530	12.2~13.0	Min275	Min7.0
0.043[D]	0.043	±0.001	Min0.003	Min0.003	Max0.0520	11.4~12.5	Min275	Min7.0
0.044[D]	0.044	±0.001	Min0.003	Min0.003	Max0.0540	11.4~12.5	Min275	Min7.0

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	UL/SGS
Model Number:	0.012-0.5mm

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand
