99.999% 5N OCC Naturel Silk Covered Litz Wire For Audio Cable

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	OCC

Minimum Order Quantity:	2 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	20days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	99.999% 5N OCC Naturel Silk Covered Litz Wire For Audio Cable	Conductor Diameter:	0.06mm
Conductor Material:	Silver	Key Word:	99.999% 5N OCC Naturel Silk Covered Litz Wire For Audio Cable
No. Of Strands:	24	Cover Material:	Natural Silk
Purity Level Of Silver:	99.99%
Highlight:	5N OCC litz wire for audio , natural silk covered litz wire , high purity OCC audio cable wire

Product Description

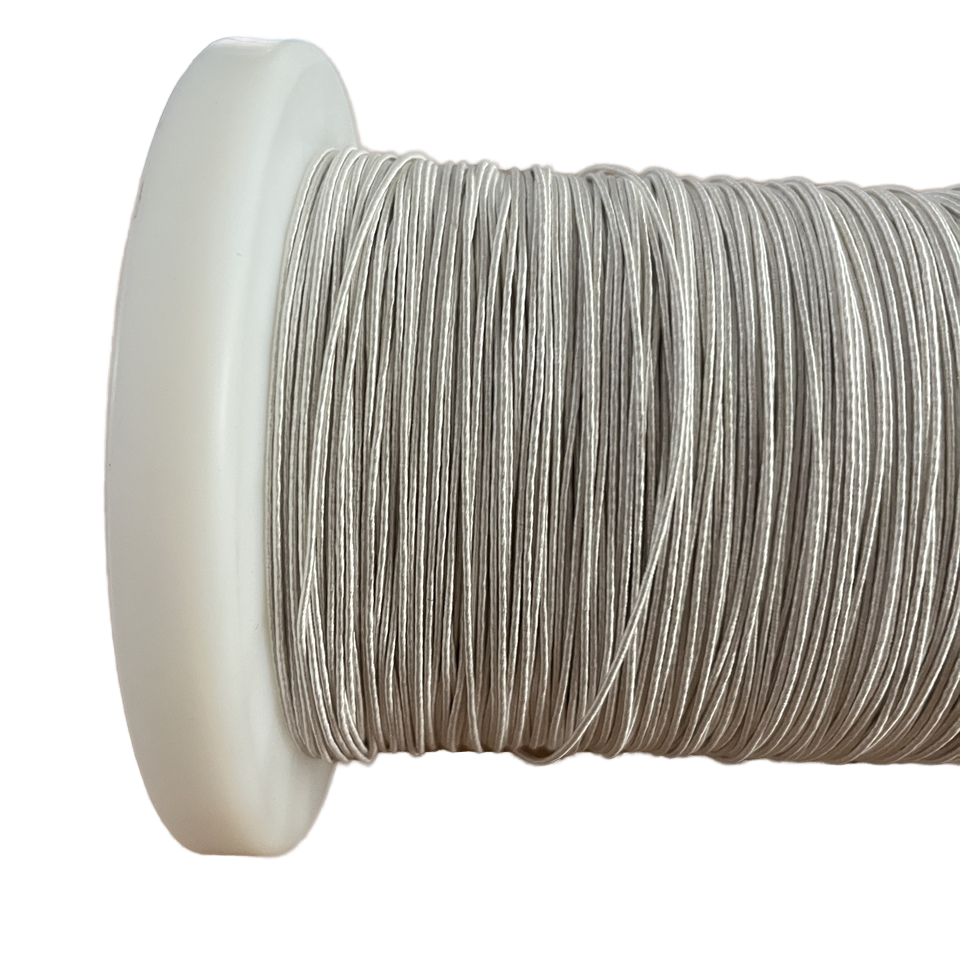

99.999% 5N OCC Naturel Silk Covered Litz Wire For Audio Cable

This high-end silk-covered litz wire is specifically designed for premium audio and acoustic equipment in audiophile applications. The ultra-fine silk covering provides exceptional characteristics that make it ideal for manufacturing top-tier tweeters.

Tweeter Voice Coil Applications

This wire is well-known in the consumer market for tweeter voice coils. The ultra-fine silk-covered litz wire offers extremely light weight, excellent flexibility, and superior high-frequency characteristics. It reduces the moving mass of the voice coil, improves high-frequency response and resolution, and minimizes distortion, making it one of the core materials in "silk dome tweeters."

Technical Specifications

Item	Standard	Test Result
Surface	No crack, smooth	√
Single wire conductor (mm)	0.06±0.003	0.060
No. of strands	24	√
Pitch	8±2mm	√
Resistance	≤298.96Ω/km (20℃)	236.3
Breakdown voltage	≥0.95kV	1.2

The choice between pure silver wire and silver-plated copper wire depends on the user's budget, sound quality requirements, and specific application scenario.
