43 Awg Copper Magnet Wire Heavy Formvar / Plain Enamel

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.056mm
Minimum Order Quantity: 2kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Detail Information
Product Name: 43AWG Heavy Formvar / Plain Enamel Copper Guitar Pickup Wire Insulation: Plain/heavy Formvar
Size: 0.056mm Application: Guitar Pickups Coils
Quantity: 1.5kg/roll Key Word: 43AWG Heavy Formvar / Plain Enamel Copper Guitar Pickup Wire
High Light:

43 awg copper magnet wire

,

heavy formvar copper magnet wire

,

plain enamel guitar pickup coil wire


Product Description

43AWG heavy formvar / plain enamel copper guitar pickup wire



Winding methods:



·Machine Winding – a machine spins the bobbin and moves back and forth at a regular pace, distributing the wire evenly across the bobbin.



·Hand Winding – a machine spins the bobbin, but the magnet wire goes through the hands of an operator who distributes the wire along the bobbin. This is how the earliest pickups were wound.



·Scatter Winding (Also called Random Wrap) – a machine spins the bobbin, and the magnet wire goes through the hands of an operator who distributes the wire along the bobbin in an intentionally scattered or random pattern.



43AWG heavy formvar / plain enamel copper guitar pickup wire



Characteristics

Technical requests

                       Test Results

Sample 1

Sample 2

Sample 3

Surface

Good

OK

OK

OK

Bare Wire Diameter

0.056±0.001

0.056

0.0056

0.056

Conductor Resistance

6.86-7.14 Ω/m

6.98

6.98

6.99

Breakdown voltage

≥ 1000V

1325



Product

43AWG heavy formvar / plain enamel copper guitar pickup wire

Conductor diameter

0.056mm±0.002

Key word

43AWG heavy formvar / plain enamel copper guitar pickup wire

Coating

Heavy formvar

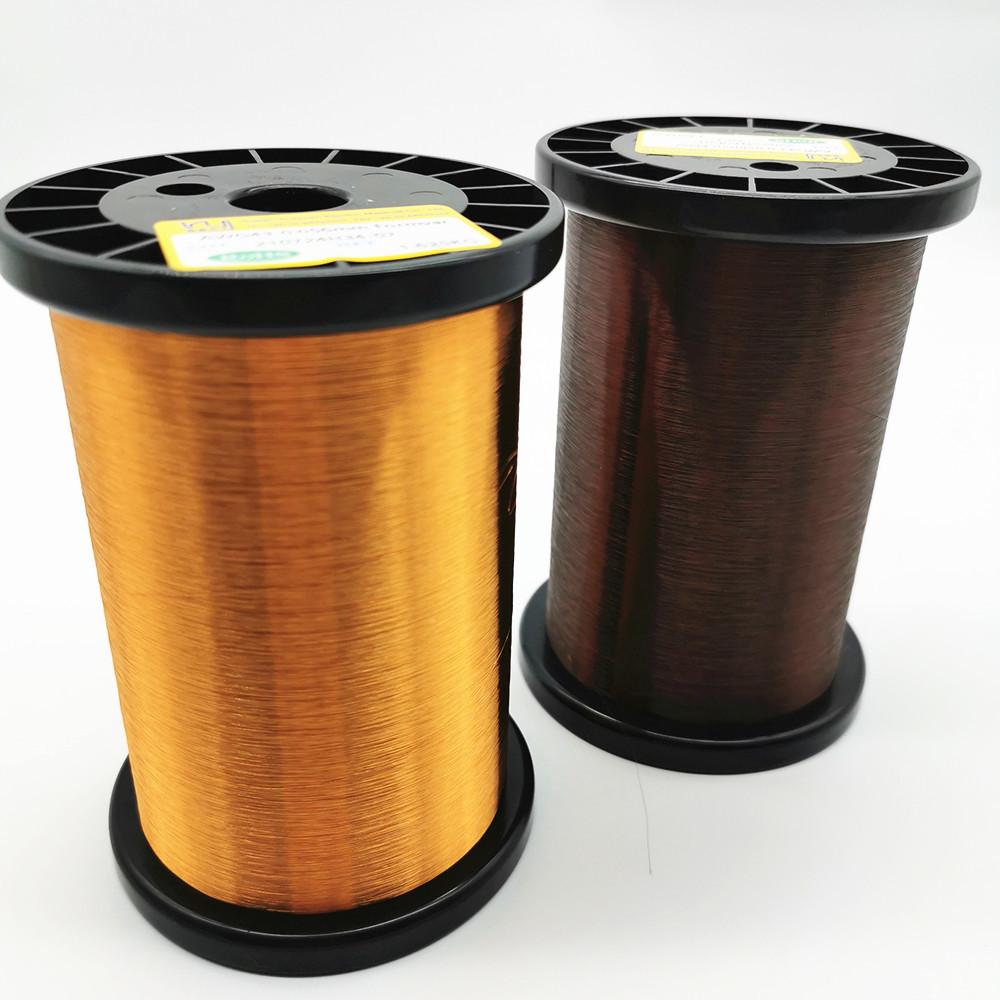

43 Awg Copper Magnet Wire Heavy Formvar / Plain Enamel 0

43 Awg Copper Magnet Wire Heavy Formvar / Plain Enamel 1
