2UEW-H-PI 0.1mm*1500 Kapton taped litz wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	180	Breakdown Voltage:	Min.6000
Key Word:	2UEW-H-PI 0.1mm*1500 Kapton Taped Litz Wire For Transformer
Highlight:	0.1mm Kapton taped litz wire , 1500 Kapton taped transformer wire , Copper litz wire for transformers

Product Description

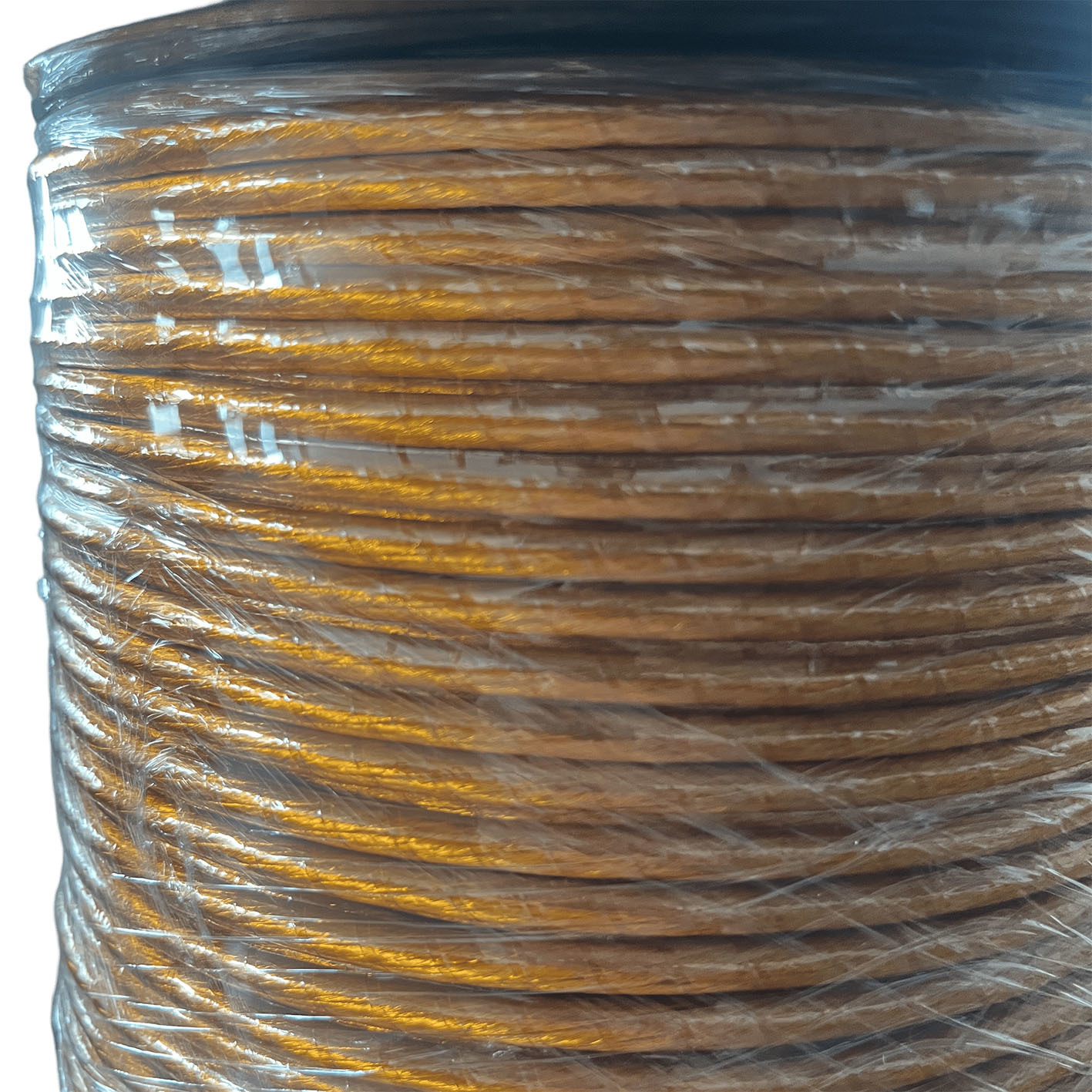

2UEW-H-PI 0.1mm*1500 Kapton Taped Litz Wire for Transformer

This custom-engineered PI taped litz wire is specifically designed for high-reliability and high-voltage transformer applications. The conductor consists of 1,500 individual strands of 0.1mm (38 AWG) solderable polyurethane enameled copper wire, precision twisted together to form a compact, flexible, and high-density bundle. The entire stranded core is wrapped with high-performance polyimide (PI) tape serving as the primary insulation layer.

Technical Specifications

Parameter	Technical Requirement	Sample 1	Sample 2
Single Wire Diameter (mm)	0.107-0.125	0.110-0.113	0.110-0.113
Conductor (mm)	0.10±0.003	0.098-0.10	0.098-0.10
O.D. (mm)	≤5.88	5.36-5.70	5.36-5.68
Resistance (Ω/m)	≤0.001587	0.001476	0.001484
Dielectric Strength (V)	≥6000	11500	12800
Pitch (mm)	65±10	65	65
No. of Strands	1500	60x5x5	6055
Tape Overlap (%)	≥50	54	54
Winding	NO crack	ok	ok

All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
