2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	50kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	300	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Key Word:	2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
Highlight:	high frequency litz wire , silk coated litz wire , multi strand transformer wire

Product Description

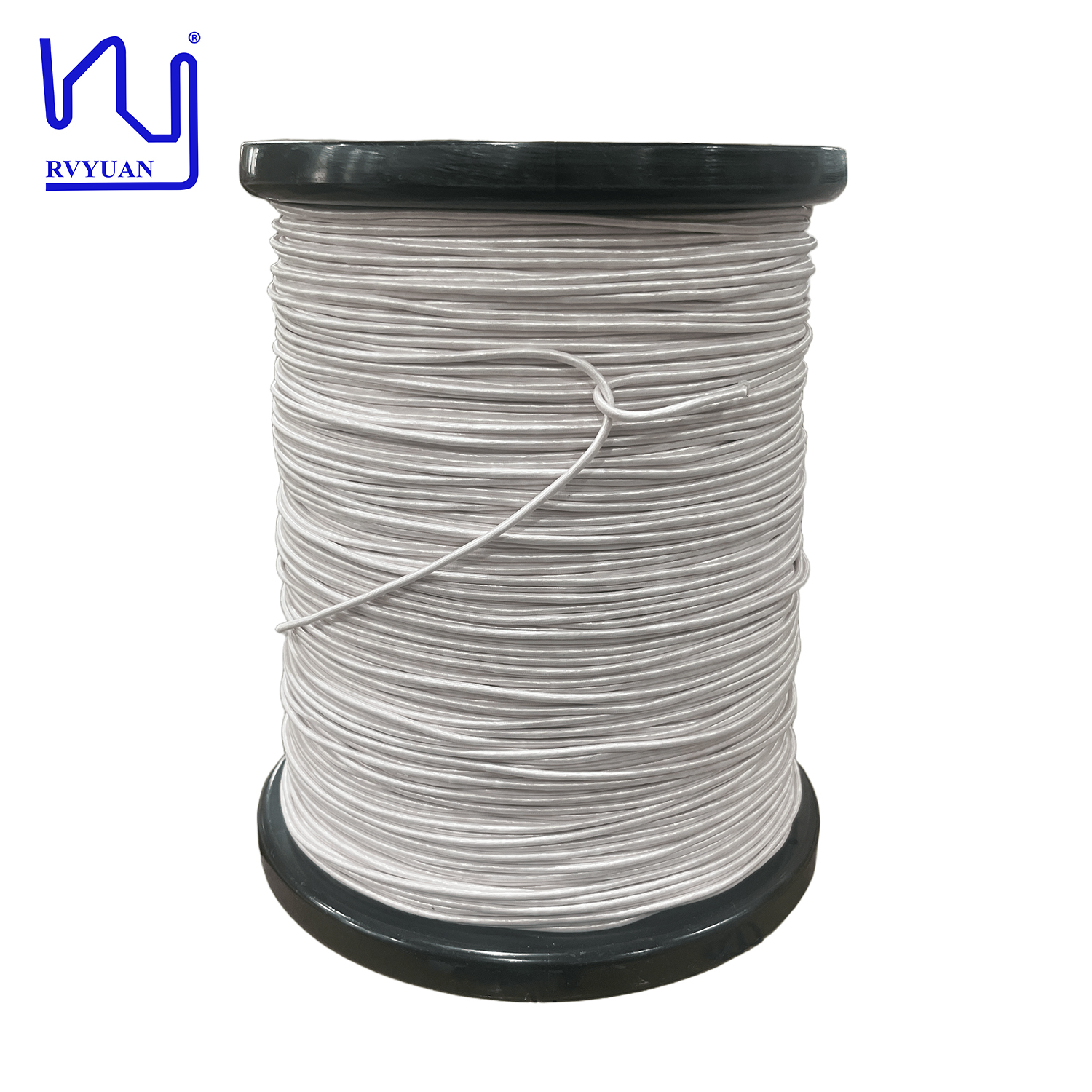

2USTC High Frequency Silk Coated Litz Wire 0.1x300 Multi Strand Wires

This nylon serving litz wire is engineered for transformer windings in demanding applications including switch-mode power supplies, high-frequency inverters, and resonant converters. The litz construction significantly reduces AC resistance, enhancing energy efficiency while minimizing heat generation.

Key Applications & Benefits

Ideal for transformer windings in high-frequency power conversion circuits
Reduces AC resistance for improved energy efficiency
Minimizes heat generation in demanding applications
Nylon serving provides abrasion resistance and electrical isolation
Compact diameter enables higher packing density in transformer cores
Excellent voltage rating ensures reliable performance

Technical Specifications

Item	Tech Requirement	Sample 1	Sample 2
Diameter of Single Wire (mm)	0.107-0.125	0.110	0.113
Conductor Diameter (mm)	0.10±0.003	0.098	0.100
OD (mm)	Max. 2.65	2.28	2.38
Resistance Ω/m (20℃)	≤0.007937	0.007391	0.007400
Breakdown Voltage (V)	≥1100	2500	2800
Pitch	47±3	√	√
Pinhole Test	69 faults/6m	18	14
Solderability	Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue	√	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
