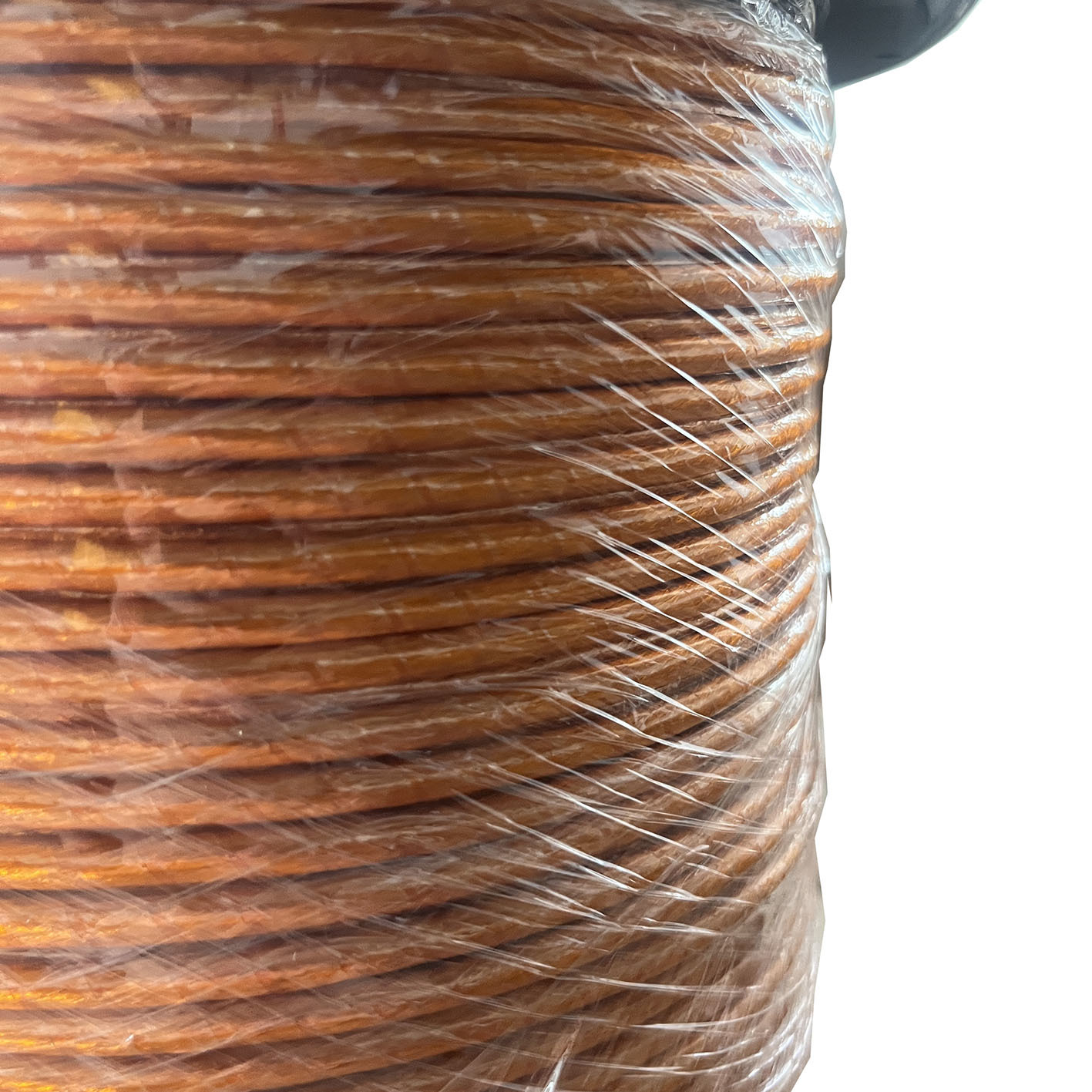

6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	180	Breakdown Voltage:	Min.6000
Key Word:	6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire
Highlight:	6KV withstand PI taped Litz wire , high frequency copper stranded wire , PI taped copper Litz wire

Product Description

6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire

This high-frequency Litz wire features excellent solderable enameled copper strands that simplify termination processes, saving valuable time and labor during transformer assembly. We accommodate projects of all sizes, including small-batch custom orders with competitive pricing tailored to your specific requirements.

Technical Specifications

Parameter	Technical Requirement	Sample 1 Measurement
Single Wire Diameter (mm)	0.107-0.125	0.110-0.113
Conductor (mm)	0.10±0.003	0.098-0.10
Outer Diameter (mm)	≤5.28	4.57-5.03
Resistance (Ω/m)	≤0.001984	0.0011833
Dielectric Strength (V)	≥6000	13100
Pitch (mm)	65±10	65
Number of Strands	1200	48x5x5
Tape Overlap (%)	≥50	54
Winding	No crack	OK

All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
