Product Name: | 0.10*2.00mm EI/AIW Class 200/220 Flat Enamelled Copper Wire For Windings | Thermal Rating: | 2200 |
---|---|---|---|
Insulation Material: | AIW | Width: | 2.00mm |
Thickness: | 0.10mm | Conductor Material: | Copper |
Key Word: | 0.10*2.00mm EI/AIW Class 200/220 Flat Enamelled Copper Wire For Windings | ||
Highlight: | Flat enamelled copper winding wire,AIW enamelled copper winding wire,EI 36 swg copper winding wire |

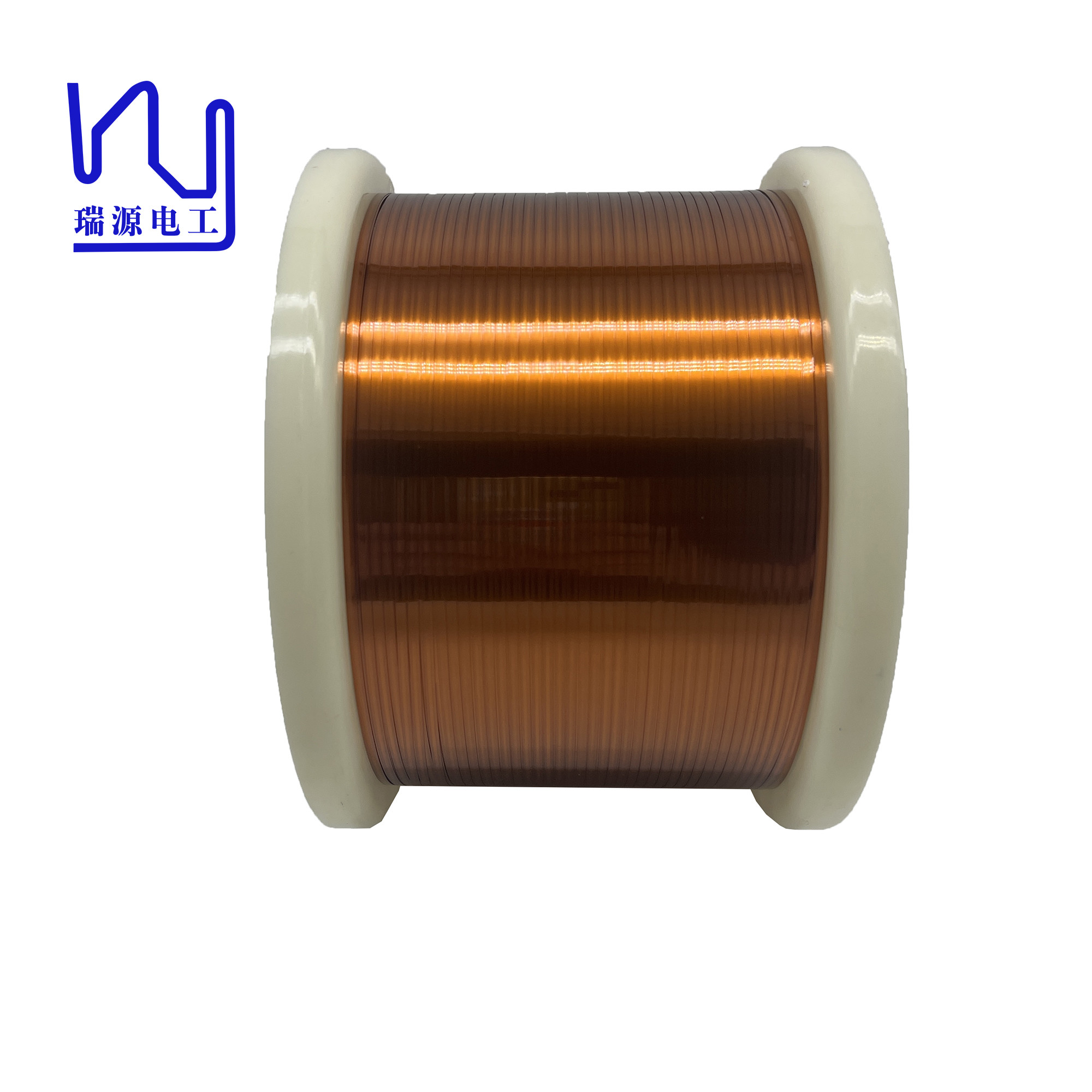

0.10*2.00mm EI/AIW Class 200/220 Flat Enamelled Copper Wire for Windings
The customizability of enameled flat copper wire further enhances its suitability for automotive applications.We accept custom sizes, with a width-to-thickness ratio of 25:1. This level of customization allows automakers and suppliers to seamlessly integrate wires into their designs, optimizing performance and reliability. In addition, enameled flat copper wire has excellent electrical conductivity properties, making it ideal for transmitting electrical signals and power within automotive systems. Its flat, uniform structure ensures consistent conductivity and low resistance, helping to improve the overall efficiency of automotive circuits.
Key word:0.10*2.00mm EI/AIW Class 200/220 Flat Enamelled Copper Wire for Windings | |||||||||||||||
Model | SFT-AIW | Date | 2024-1-8 | ||||||||||||
Size(mm): | 0.100 × 2.000 | Lot | / | ||||||||||||
Item |
conductor dimension |
Unilateral insulation laer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
Thickness | Width | Thickness | Width | Thickness | Width | ||||||||||
Unit | mm |
mm |
mm |
mm |
mm |
mm |
kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
SPEC |
AVE | 0.100 |
2.000 |
0.025 | 0.025 | ||||||||||
Max | 0.109 | 2.060 | 0.040 | 0.040 | 0.150 | 2.100 | 3 | 93.240 | |||||||
Min | 0.091 | 1.940 | 0.010 | 0.010 | 0.700 | 30 | |||||||||
No. 1 | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 |
0 |
85.634 |
46 |
No to be scratched No dirt |
Good |
Good |
Good |
|
No. 2 | 1.968 | ||||||||||||||
No. 3 | 2.250 | ||||||||||||||
No. 4 | 2.458 | ||||||||||||||
No. 5 | 1.976 | ||||||||||||||
Ave | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.266 | ||||||||
Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||||
Min. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 1.968 | ||||||||
Max. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 | ||||||||
Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.712 | ||||||||
Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK |
