0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	50kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	300	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Key Word:	0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Highlight:	0.1mm enameled magnet wire , high frequency Litz wire , silk covered copper wire

Product Description

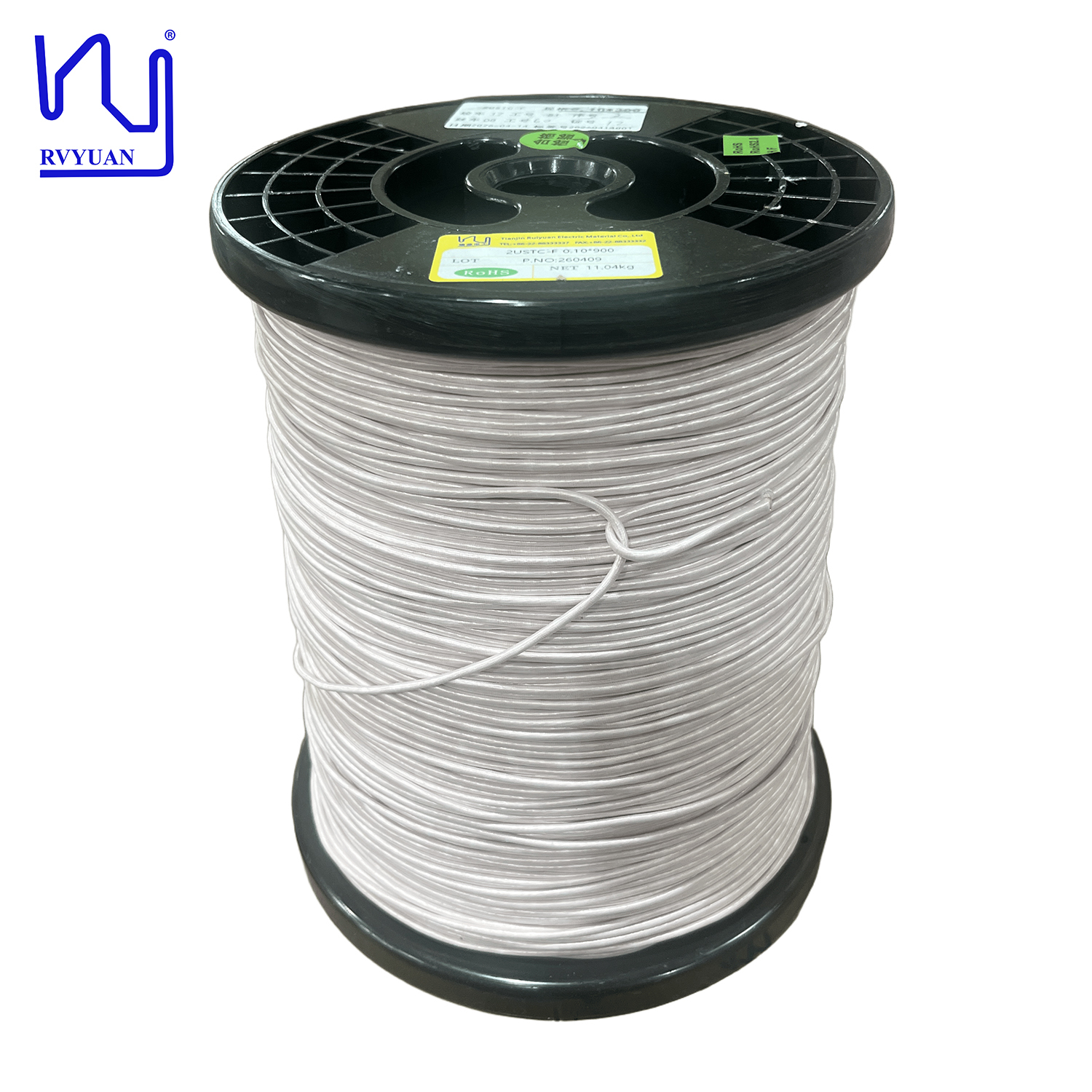

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

This silk covered litz wire features a maximum overall diameter of 2.65 mm and a minimum withstand voltage of 1100 V. We support small-batch customization with a minimum order quantity of 20 kg, making it ideal for prototype development or specialized production runs.

Key Features

High frequency performance for specialized applications
Silk covered construction for enhanced durability
Minimum withstand voltage: 1100V
Maximum overall diameter: 2.65mm
Small-batch customization available
Minimum order quantity: 20kg

Technical Specifications

Parameter	Technical Requirement	Sample 1	Sample 2
Outer diameter of single wire (mm)	0.107-0.125	0.110	0.113
Conductor diameter (mm)	0.10±0.003	0.098	0.100
Overall diameter (mm)	Max. 2.65	2.28	2.38
Resistance Ω/m (20℃)	≤0.007937	0.007391	0.007400
Breakdown voltage (V)	≥1100	2500	2800
Pitch	47±3	√	√
Pinhole test (faults/6m)	69 faults/6m	18	14
Solderability	Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue	√	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
