G2 0.060mm Ultra Fine Self Bonding Wire / Enameled Magnet Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001/UL/SGS
Model Number: 0.060mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Conductor Thickness: 0.060mm Standard: IEC,NEMA,JIS
Material: Round Copper Delivery: Fast Delivery Gurantee
Conductor: Aluminum And Copper Thermal Class: 155
Conductor Type Strength: Solid Insulation: UEW/polyurethane
High Light:

self bonding copper wire

,

enamelled winding wire


Product Description

0.060MM ULTRA FINE SELF BONDING WIRE ENAMELED MAGNET COPPER WIRE

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines. Because of our strong R & D strength, our products have a wide range of applications.We have a full range of self-adhesive lines and a wide range of applications.Thermal class is155C, 180 C, 200 C, 220 C. Conductor material includes enameled round wire, enameled copper-clad aluminum wire

APPLICATION

Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.

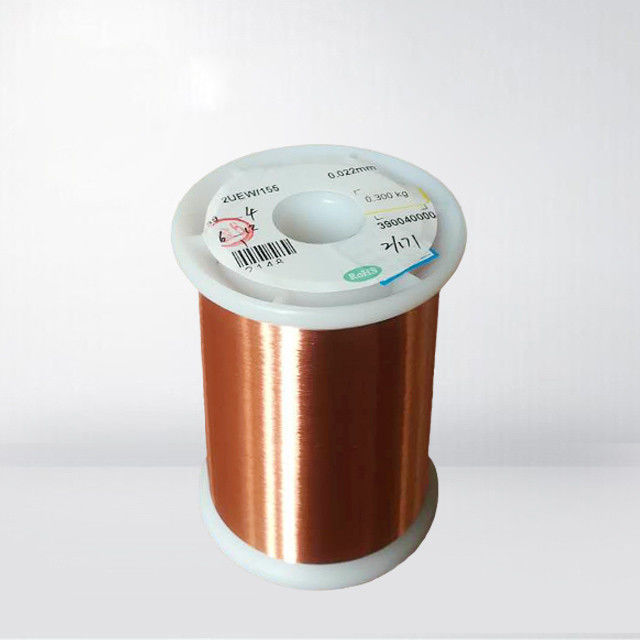

G2 0.060mm Ultra Fine  Self Bonding Wire / Enameled Magnet Copper Wire 0


Nominal Diameter mm Tolerance Min. Increase of Diameter Max. Overall Diameter Breakdown Voltage   Elongation Pin Hole Electrical Resistance
  mm     ≥ V   ≥% ≤Default/5m Ω/km (20℃)
        Mandrel Method Twisted Method     Min. Max.
0.012 ---- 0.013 0.015 50.000 ---- 5.00 10.00 142.64 157.65
0.013 ---- 0.015 0.017 70.000 ---- 5.00 10.00 118.41 133.98
0.014 ---- 0.016 0.018 70.000 ---- 5.00 10.00 102.64 120.45
0.015 ---- 0.017 0.020 80.000 ---- 5.00 10.00 89.83 104.41
0.016 ---- 0.018 0.021 90.000 ---- 5.00 8.00 74.67 97.56
0.017 ---- 0.019 0.022 90.000 ---- 5.00 8.00 66.60 85.75
0.018 ---- 0.020 0.023 100.000 ---- 5.00 8.00 59.77 75.95
0.019 ---- 0.021 0.024 100.000 ---- 5.00 8.00 53.95 67.75
0.020 0.001 0.022 0.024 100.000 ---- 8.00 8.00 51.83 60.81
0.050 ±0.002 0.007 0.062 400.000 1200.00 12.00 5.00 7981.00 9528.00
0.055 ±0.002 0.007 0.068 400.000 1200.00 12.00 5.00 6642.00 7815.00
0.060 ±0.002 0.007 0.073 500.000 1200.00 14.00 5.00 5614.00 6526.00
0.065 ±0.002 0.007 0.078 500.000 1200.00 14.00 5.00 4807.00 5531.00
0.070 ±0.002 0.007 0.083 500.000 1200.00 15.00 5.00 4163.00 4747.00
0.075 ±0.002 0.007 0.088 550.000 1200.00 15.00 5.00 3640.00 4119.00
0.080 ±0.002 0.008 0.094 550.000 1200.00 16.00 5.00 3209.00 3608.00

G2 0.060mm Ultra Fine  Self Bonding Wire / Enameled Magnet Copper Wire 2

G2 0.060mm Ultra Fine  Self Bonding Wire / Enameled Magnet Copper Wire 3

G2 0.060mm Ultra Fine  Self Bonding Wire / Enameled Magnet Copper Wire 4

G2 0.060mm Ultra Fine  Self Bonding Wire / Enameled Magnet Copper Wire 5

G2 0.060mm Ultra Fine  Self Bonding Wire / Enameled Magnet Copper Wire 6

G2 0.060mm Ultra Fine  Self Bonding Wire / Enameled Magnet Copper Wire 7
